TF06L Series

Catalog

CONN FFC BOTTOM 50POS 0.5MM R/A

Part	Mating Cycles	Actuator Color	Contact Finish Thickness	Contact Finish Thickness	Current Rating (Amps)	Housing Color	Operating Temperature [Max]	Operating Temperature [Min]	Connector/Contact Type	Actuator Material	Pitch	Pitch	Material Flammability Rating	Contact Finish	Flat Flex Type	Mounting Type	Features	Housing Material	Height Above Board [z]	Height Above Board [z]	Locking Feature	FFC, FCB Thickness	Termination	Number of Positions	Voltage Rating	Cable End Type	Contact Material

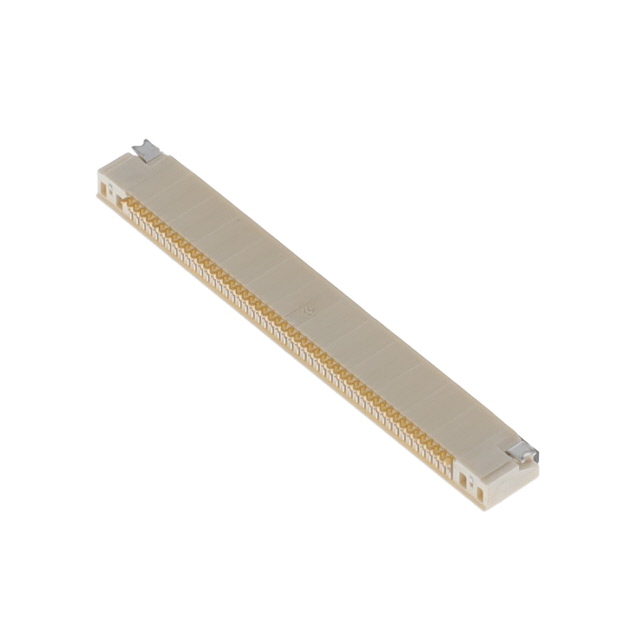

Hirose Electric Co Ltd TF06L-50S-0.5SH(800)	20	Black	1.97 Áin	0.05 Ám	0.5 A	Beige	85 °C	-40 C	Contacts Bottom	Liquid Crystal Polymer (LCP)	0.02 "	0.5 mm	UL94 V-0	Gold	FFC FPC	Right Angle Surface Mount	Solder Retention Zero Insertion Force (ZIF)	Liquid Crystal Polymer (LCP)	0.083 in	2.1 mm	Flip Lock	0.3 mm	Solder	50	50 V	Tabbed	Phosphor Bronze

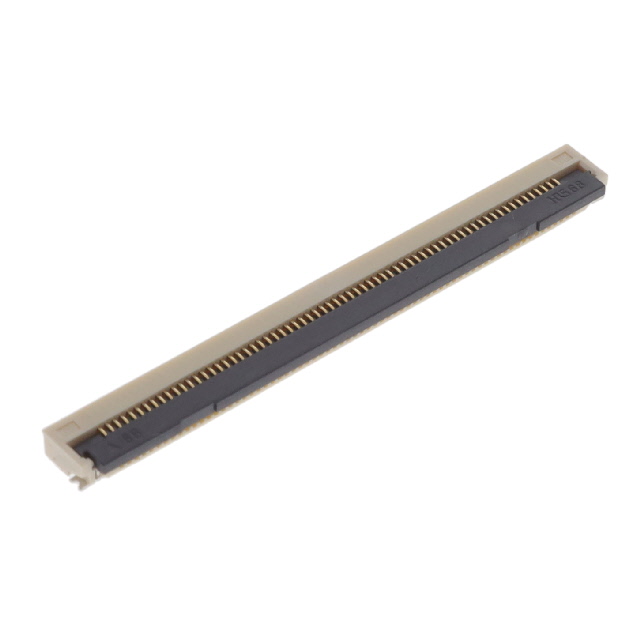

Hirose Electric Co Ltd TF06L-68S-0.5SH(800)	20	Black	1.97 Áin	0.05 Ám	0.5 A	Beige	85 °C	-40 C	Contacts Bottom	Liquid Crystal Polymer (LCP)	0.02 "	0.5 mm	UL94 V-0	Gold	FFC FPC	Right Angle Surface Mount	Solder Retention Zero Insertion Force (ZIF)	Liquid Crystal Polymer (LCP)	0.083 in	2.1 mm	Flip Lock	0.3 mm	Solder	68 positions	50 V	Tabbed	Phosphor Bronze

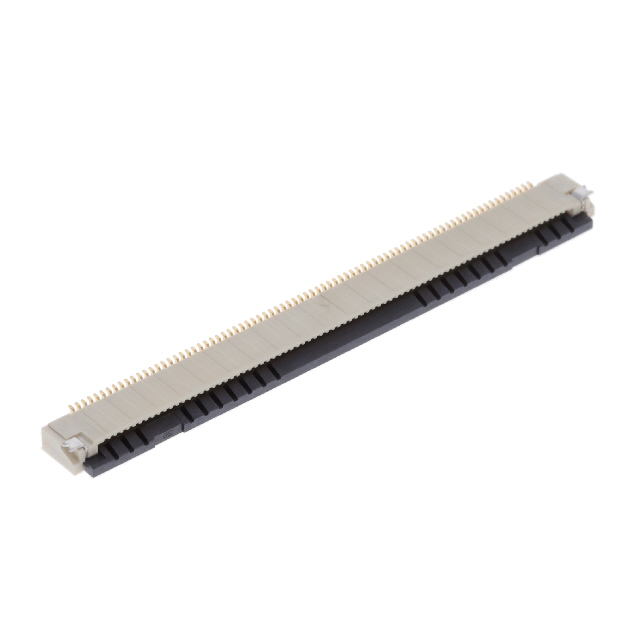

Hirose Electric Co Ltd TF06L-80S-0.5SH(800)	20	Black	1.97 Áin	0.05 Ám	0.5 A	Beige	85 °C	-40 C	Contacts Bottom	Liquid Crystal Polymer (LCP)	0.02 "	0.5 mm	UL94 V-0	Gold	FFC FPC	Right Angle Surface Mount	Solder Retention Zero Insertion Force (ZIF)	Liquid Crystal Polymer (LCP)	0.083 in	2.1 mm	Flip Lock	0.3 mm	Solder	80	50 V	Tabbed	Phosphor Bronze
Hirose Electric Co Ltd TF06L-60S-0.5SH(800)	20	Black	1.97 Áin	0.05 Ám	0.5 A	Beige	85 °C	-40 C	Contacts Bottom	Liquid Crystal Polymer (LCP)	0.02 "	0.5 mm	UL94 V-0	Gold	FFC FPC	Right Angle Surface Mount	Solder Retention Zero Insertion Force (ZIF)	Liquid Crystal Polymer (LCP)	0.083 in	2.1 mm	Flip Lock	0.3 mm	Solder	60	50 V	Tabbed	Phosphor Bronze
