392-120 Series

Catalog

HIGH PERFORMANC HEAT SINK FOR POWER MODULES, IGBTS AND SSRS ROHS COMPLIANT: YES

Part	Material Finish	Type	Length	Length	Attachment Method	Width [x]	Width [x]	Thermal Resistance @ Forced Air Flow	Shape [custom]	Shape [custom]	Thermal Resistance @ Natural	Package Cooled	Fin Height	Fin Height	Material
Wakefield Thermal Solutions 392-120AG	Gold Iridite	Top Mount	120 mm	4.724 in	Press Fit	124.99 mm	4.921 in	0.2 °C/W	Rectangular	Fins	0.5 °C/W	Power Modules	5.346 in	135.79 mm	Aluminum

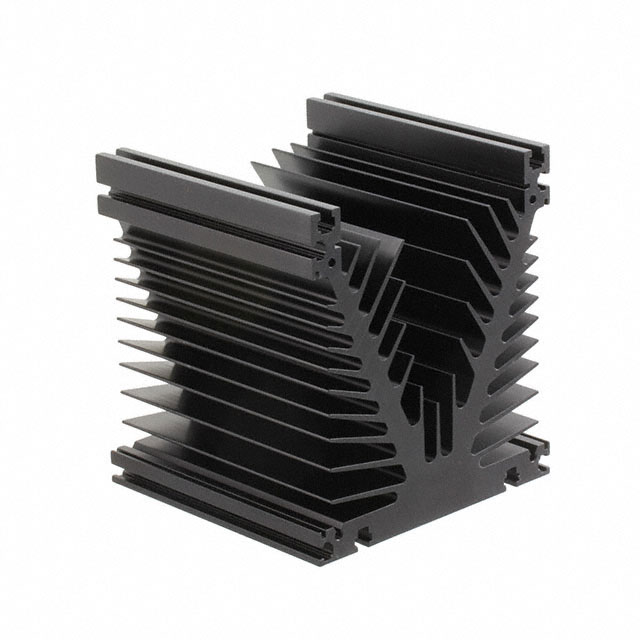

Wakefield Thermal Solutions 392-120AB	Black Anodized	Top Mount	120 mm	4.724 in	Press Fit	124.99 mm	4.921 in	0.2 °C/W	Rectangular	Fins	0.5 °C/W	Power Modules	5.346 in	135.79 mm	Aluminum
Wakefield Thermal Solutions 392-120AG	Gold Iridite	Top Mount	120 mm	4.724 in	Press Fit	124.99 mm	4.921 in	0.2 °C/W	Rectangular	Fins	0.5 °C/W	Power Modules	5.346 in	135.79 mm	Aluminum
Wakefield Thermal Solutions 392-120AB	Black Anodized	Top Mount	120 mm	4.724 in	Press Fit	124.99 mm	4.921 in	0.2 °C/W	Rectangular	Fins	0.5 °C/W	Power Modules	5.346 in	135.79 mm	Aluminum
