PCX Series

Manufacturer: Nichicon

Catalog

POLYMER ALUMINIUM ELECTROLYTIC CAPACITOR, SP-CAP, 39 ΜF, 35 V, RADIAL CAN - SMD, 0.035 OHM

Part	Lifetime @ Temp.	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Mounting Type	Voltage - Rated	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Capacitance	Size / Dimension [diameter]	Size / Dimension [diameter]	ESR (Equivalent Series Resistance)	Applications	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Package / Case	Type	Ripple Current @ High Frequency	Ratings	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]

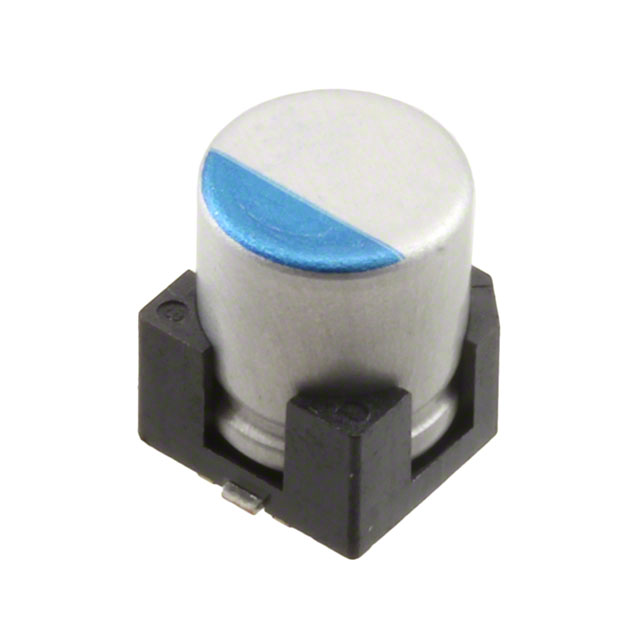

Nichicon PCX1V390MCL6GS	3000 Hrs	-55 C	125 °C	20 %	Surface Mount	35 V	10 mm	0.394 in	39 µF	0.315 in	8 mm	35 mOhms	General Purpose	8.3 mm	8.3 mm	0.327 in	0.327 in	Radial Can - SMD	Polymer	1.8 A	AEC-Q200
Nichicon PCX1V390MCS1GS	3000 Hrs	-55 C	125 °C	20 %	Surface Mount	35 V			39 µF	0.315 in	8 mm	35 mOhms	General Purpose	8.3 mm	8.3 mm	0.327 in	0.327 in	Radial Can - SMD	Polymer	1.8 A		11 mm	0.433 in

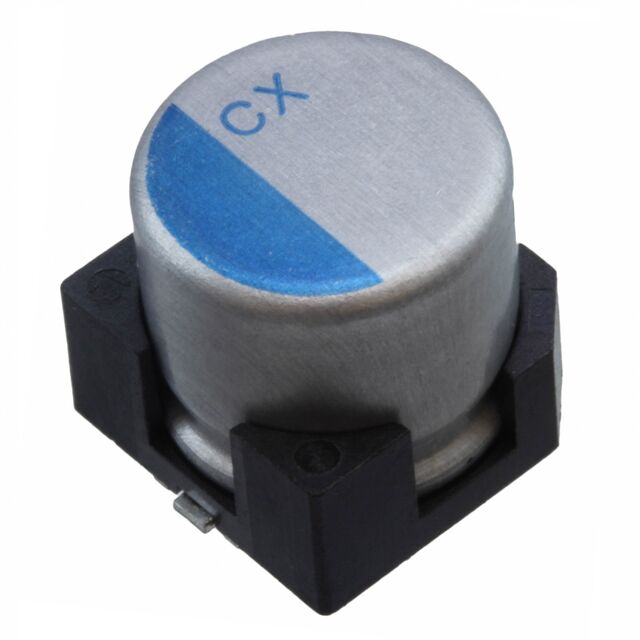

Nichicon PCX1V680MCL1GS	3000 Hrs	-55 C	125 °C	20 %	Surface Mount	35 V	10 mm	0.394 in	68 µF	0.394 in	10 mm	30 mOhms	General Purpose	10.3 mm	10.3 mm	0.406 "	0.406 in	Radial Can - SMD	Polymer	2.2 A	AEC-Q200
Nichicon PCX1H330MCS1GS	3000 Hrs	-55 C	125 °C	20 %	Surface Mount	50 VDC			33 ÁF	0.394 in	10 mm	31 mOhm	General Purpose	10.3 mm	10.3 mm	0.406 "	0.406 in	Radial Can - SMD	Polymer	2.2 A		11 mm	0.433 in
Nichicon PCX1D181MCL1GS	3000 Hrs	-55 C	125 °C	20 %	Surface Mount	20 V	10 mm	0.394 in	180 µF	0.394 in	10 mm	28 mOhm	General Purpose	10.3 mm	10.3 mm	0.406 "	0.406 in	Radial Can - SMD	Polymer	2.3 A	AEC-Q200
