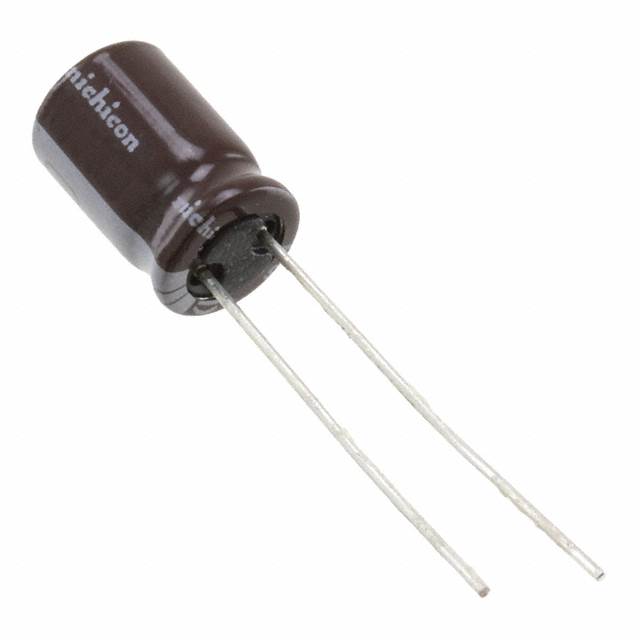

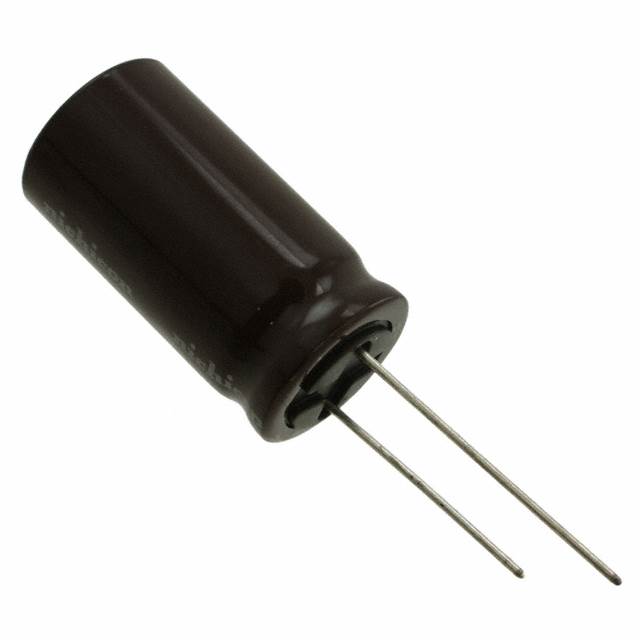

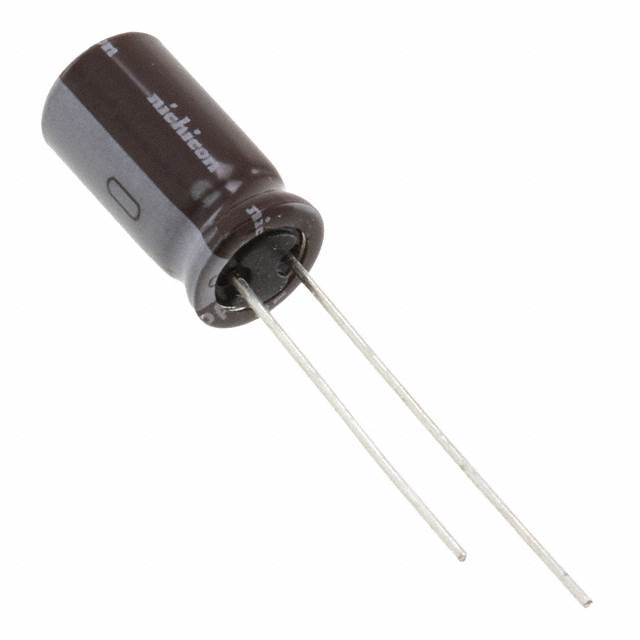

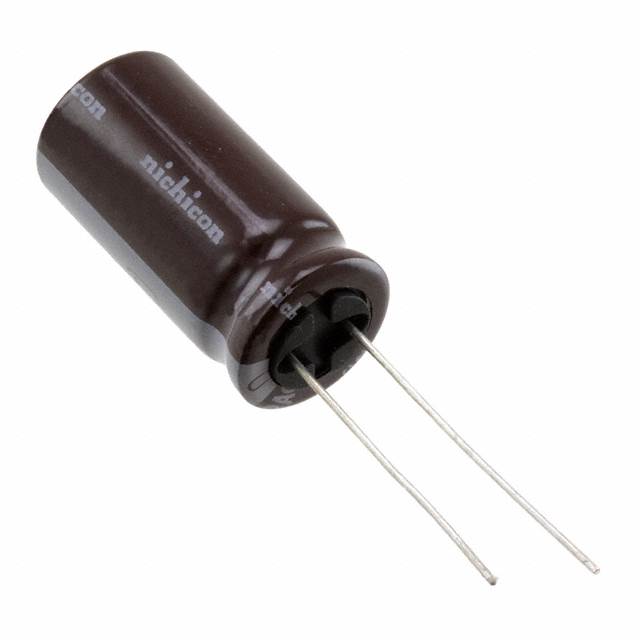

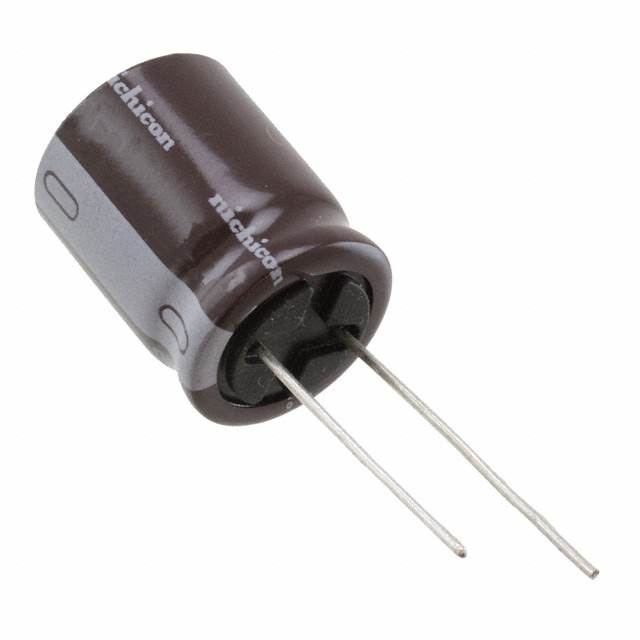

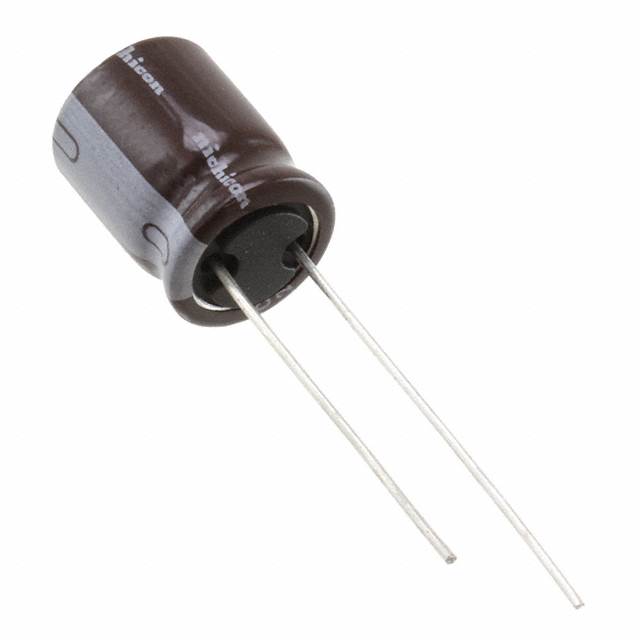

UPA Series

Manufacturer: Nichicon

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - RADIAL LEADED 1500UF 10 VOLTS 20%

Part	Ripple Current @ Low Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Applications	Tolerance	Lead Spacing	Lead Spacing	Mounting Type	Lifetime @ Temp.	Polarization	Ripple Current @ High Frequency	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Voltage - Rated	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [custom]	Impedance	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max)
Nichicon UPA1A152MPD1TD	1.267 A	0.394 in	10 mm	General Purpose	20 %	0.197 "	5 mm	Through Hole	4000 Hrs	Polar	1.49 A	-55 C	105 ░C	Can Radial	10 V	0.866 in	22 mm	35 mOhms	1.5 mF
Nichicon UPA1E471MPD	645 mA	0.315 in	8 mm	General Purpose	20 %	0.138 in	3.5 mm	Through Hole	3000 Hrs	Polar	860 mA	-55 C	105 ░C	Can Radial	25 VDC			62 mOhms	470 µF	0.65 in	16.5 mm
Nichicon UPA0J102MPD6TD	675 mA	0.394 in	10 mm	General Purpose	20 %	0.197 "	5 mm	Through Hole	4000 Hrs	Polar	900 mA	-55 C	105 ░C	Can Radial	6.3 VDC			63 mOhms	1000 µF			14 mm	0.551 in
Nichicon UPA0J102MPD1TA	645 mA	0.315 in	8 mm	General Purpose	20 %	0.138 in	3.5 mm	Through Hole	3000 Hrs	Polar	860 mA	-55 C	105 ░C	Can Radial	6.3 VDC			62 mOhms	1000 µF	0.65 in	16.5 mm
Nichicon UPA1E222MHD6	1.981 A	0.63 in	16 mm	General Purpose	20 %	0.295 in	7.5 mm	Through Hole	5000 Hrs	Polar	2.33 A	-55 C	105 ░C	Can Radial	25 VDC	0.866 in	22 mm	26 mOhms	2200 µF
Nichicon UPA1E182MHD1TO	2.499 A	0.492 in	12.5 mm	General Purpose	20 %	0.197 "	5 mm	Through Hole	5000 Hrs	Polar	2.28 A	-55 C	105 ░C	Can Radial	25 VDC			22 mOhms	1800 µF			27 mm	1.063 in
Nichicon UPA1A821MPD6TD	675 mA	0.394 in	10 mm	General Purpose	20 %	0.197 "	5 mm	Through Hole	4000 Hrs	Polar	900 mA	-55 C	105 ░C	Can Radial	10 V			63 mOhms	820 µF			14 mm	0.551 in
Nichicon UPA1V272MHD	2.389 A	0.63 in	16 mm	General Purpose	20 %	0.295 in	7.5 mm	Through Hole	5000 Hrs	Polar	2.81 A	-55 C	105 ░C	Can Radial	35 V			17 mOhms	2700 µF	1.319 in				33.5 mm
Nichicon UPA0J102MPD6	675 mA	0.394 in	10 mm	General Purpose	20 %	0.197 "	5 mm	Through Hole	4000 Hrs	Polar	900 mA	-55 C	105 ░C	Can Radial	6.3 VDC			63 mOhms	1000 µF			14 mm	0.551 in
Nichicon UPA1A561MPD1TA	472.5 mA	0.315 in	8 mm	General Purpose	20 %	0.138 in	3.5 mm	Through Hole	3000 Hrs	Polar		-55 C	105 ░C	Can Radial	10 V				560 µF	0.512 "	13 mm
