HRM-305 Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K

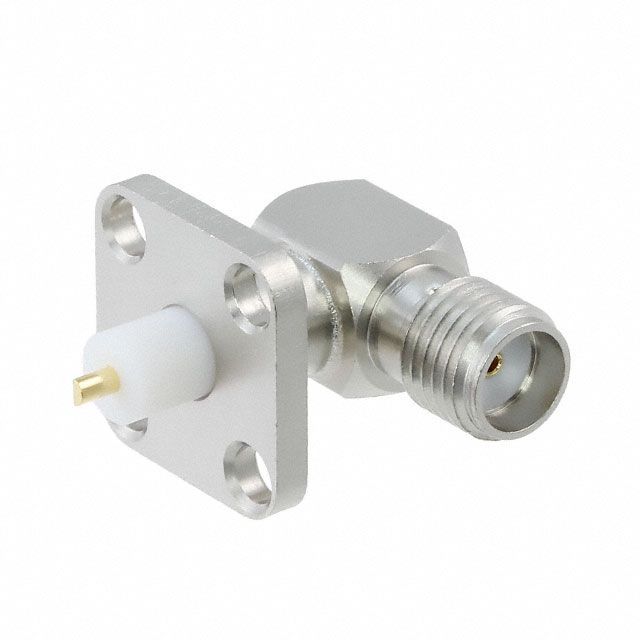

CONN SMA RCPT R/A 50 OHM SOLDER
| Part | Body Material | Center Contact Plating | Insertion Loss | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Mating Cycles | Housing Color | Connector Style | Number of Ports | Fastening Type | Features | Impedance | Mounting Type | Center Contact Material | Mounting Feature | Frequency - Max [Max] | Shield Termination | Connector Type | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | Stainless Steel | Gold | 0.1 dB | -55 C | 125 °C | Polytetrafluoroethylene (PTFE) | 1000 | Silver | SMA | 1 | Threaded | Extended Insulation | 50 Ohms | Panel Mount Right Angle | Beryllium Copper | Flange | 12.4 GHz | Solder | Receptacle Female Socket | Solder |
