AM3S Series

Manufacturer: aimtec

Catalog

DC DC CONVERTER 5V 3W

Part	Standard Number	Number of Outputs	Current - Output (Max) [Max]	Voltage - Isolation	Voltage - Output 1	Voltage - Input (Min) [Min]	Type	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Mounting Type	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Max) [Max]	Efficiency	Supplier Device Package	Package / Case	Applications

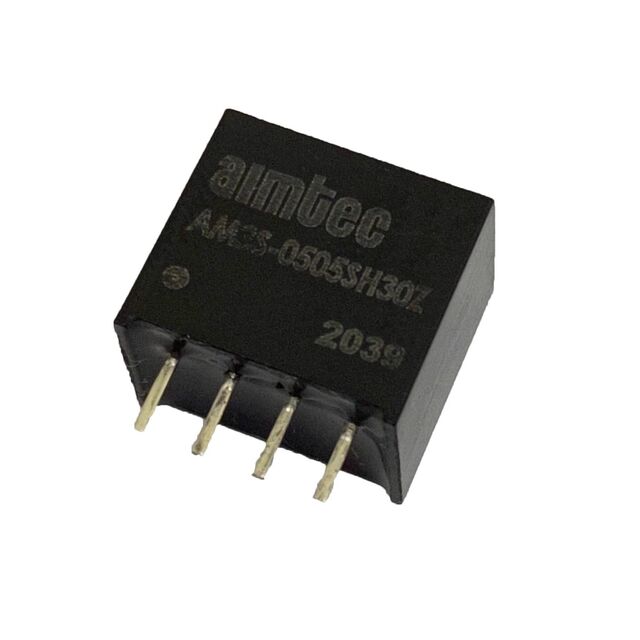

aimtec AM3S-0505SH30Z	60950-1 62368-1	1	600 mA	3000 V	5 V	4.5 V	Isolated Module	10.2 mm	0.4 "	7.5 mm	0.29 in	0.46 in	11.7 mm	Through Hole	3 W	-40 C	100 °C	5.5 V	83 %	4-SIP	4-SIP Module	ITE (Commercial)
aimtec AM3S-2415SH30Z	60950-1 62368-1	1	200 mA	3000 V	15 V	21.6 V	Isolated Module	10.2 mm	0.4 "	7.5 mm	0.29 in	0.46 in	11.7 mm	Through Hole	3 W	-40 C	100 °C	26.4 V	91 %	4-SIP	4-SIP Module	ITE (Commercial)
aimtec AM3S-2409SH30Z	60950-1 62368-1	1	333 mA	3000 V	9 V	21.6 V	Isolated Module	10.2 mm	0.4 "	7.5 mm	0.29 in	0.46 in	11.7 mm	Through Hole	3 W	-40 C	100 °C	26.4 V	89 %	4-SIP	4-SIP Module	ITE (Commercial)
aimtec AM3S-1215SH30Z	60950-1 62368-1	1	200 mA	3000 V	15 V	10.8 V	Isolated Module	10.2 mm	0.4 "	7.5 mm	0.29 in	0.46 in	11.7 mm	Through Hole	3 W	-40 C	100 °C	13.2 V	91 %	4-SIP	4-SIP Module	ITE (Commercial)
aimtec AM3S-2412SH30Z	60950-1 62368-1	1	250 mA	3000 V	12 V	21.6 V	Isolated Module	10.2 mm	0.4 "	7.5 mm	0.29 in	0.46 in	11.7 mm	Through Hole	3 W	-40 C	100 °C	26.4 V	90 %	4-SIP	4-SIP Module	ITE (Commercial)
aimtec AM3S-0512SH30Z	60950-1 62368-1	1	250 mA	3000 V	12 V	4.5 V	Isolated Module	10.2 mm	0.4 "	7.5 mm	0.29 in	0.46 in	11.7 mm	Through Hole	3 W	-40 °C	100 °C	5.5 V	88 %	4-SIP	4-SIP	ITE (Commercial)
aimtec AM3S-0509SH30Z	60950-1 62368-1	1	333 mA	3000 V	9 V	4.5 V	Isolated Module	10.2 mm	0.4 "	7.5 mm	0.29 in	0.46 in	11.7 mm	Through Hole	3 W	-40 °C	100 °C	5.5 V	87 %	4-SIP	4-SIP	ITE (Commercial)
aimtec AM3S-0515SH30Z	60950-1 62368-1	1	200 mA	3000 V	15 V	4.5 V	Isolated Module	10.2 mm	0.4 "	7.5 mm	0.29 in	0.46 in	11.7 mm	Through Hole	3 W	-40 °C	100 °C	5.5 V	88 %	4-SIP	4-SIP	ITE (Commercial)
aimtec AM3S-2405SH30Z	60950-1 62368-1	1	600 mA	3000 V	5 V	21.6 V	Isolated Module	10.2 mm	0.4 "	7.5 mm	0.29 in	0.46 in	11.7 mm	Through Hole	3 W	-40 C	100 °C	26.4 V	85 %	4-SIP	4-SIP Module	ITE (Commercial)
aimtec AM3S-1209SH30Z	60950-1 62368-1	1	333 mA	3000 V	9 V	10.8 V	Isolated Module	10.2 mm	0.4 "	7.5 mm	0.29 in	0.46 in	11.7 mm	Through Hole	3 W	-40 C	100 °C	13.2 V	89 %	4-SIP	4-SIP Module	ITE (Commercial)
