TMC5041 Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K

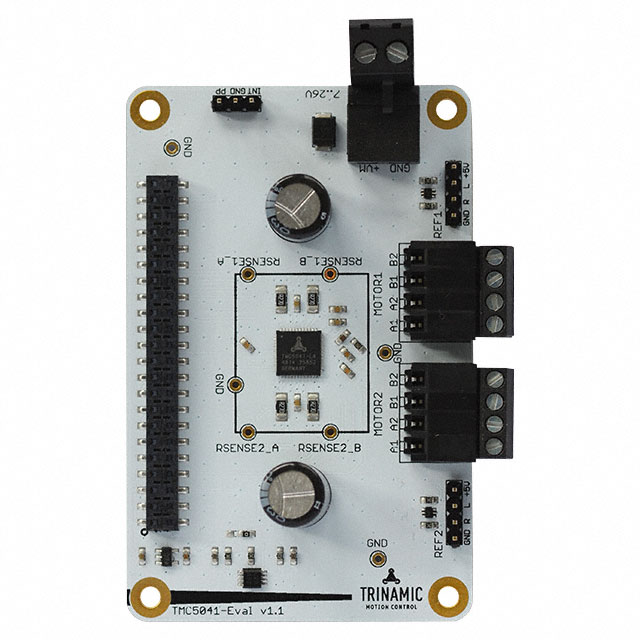

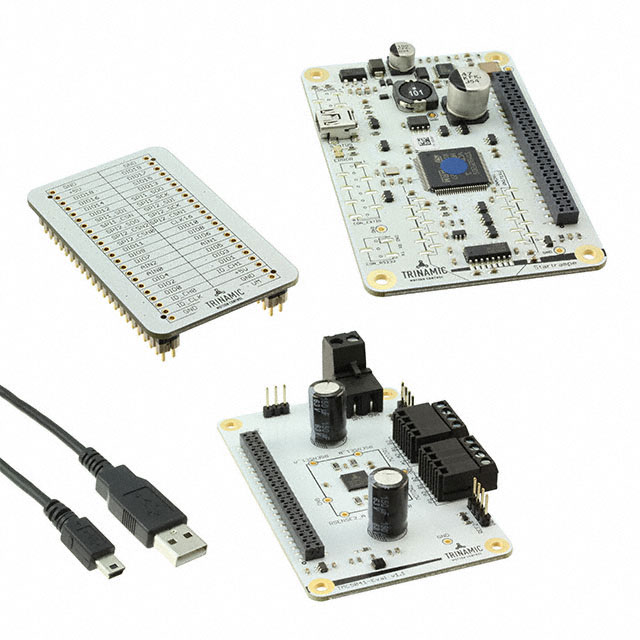

EVAL KIT FOR TMC5041 MOTOR CTLR
| Part | Supplied Contents | Embedded | Embedded | Contents | Utilized IC / Part | Type | Primary Attributes | Secondary Attributes | Current - Output | Package / Case | Output Configuration | Technology | Function | Voltage - Supply [Min] | Voltage - Supply [Max] | Voltage - Load [Min] | Voltage - Load [Max] | Interface | Motor Type - Stepper | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Applications | Supplier Device Package | Step Resolution [Min] | Step Resolution [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices Inc./Maxim Integrated | Board(s) | 32-Bit MCU | Board(s) | TMC5041 | Power Management | |||||||||||||||||||||
 Analog Devices Inc./Maxim Integrated | Board(s) | Board(s) | TMC5041 | Power Management | Motors (Stepper) | SPI Interface(s) | ||||||||||||||||||||
 Analog Devices Inc./Maxim Integrated | 1.1 A | 48-VFQFN Exposed Pad | Half Bridge (2) | Power MOSFET | Driver - Fully Integrated Control and Power Stage | 5.5 V | 26 V | 5.5 V | 26 V | SPI | Bipolar | -40 C | 125 °C | Surface Mount | General Purpose | 48-QFN (7x7) | 1 | 0.00390625 | ||||||||
Analog Devices Inc./Maxim Integrated | 1.1 A | 48-VFQFN Exposed Pad | Half Bridge (8) | Power MOSFET | Driver - Fully Integrated Control and Power Stage | 5.5 V | 26 V | 5.5 V | 26 V | SPI | Bipolar | -40 C | 125 °C | Surface Mount | General Purpose | 48-QFN (7x7) | 1 | 0.00390625 | ||||||||
 Analog Devices Inc./Maxim Integrated | Board(s) | Board(s) | TMC5041 | Power Management |
