ucd Series
Manufacturer: Nichicon
Beta
⌘K

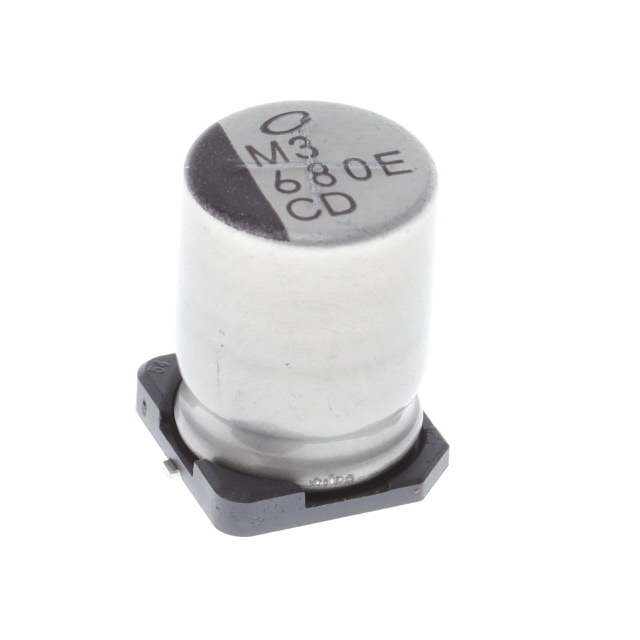

CAPACITOR: ELECTROLYTIC; LOW ESR; SMD; 680UF; 25VDC; Ø10X13.5MM
| Part | Applications | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Ratings | Capacitance | Package / Case | Size / Dimension [diameter] | Size / Dimension [diameter] | Ripple Current @ Low Frequency | Lifetime @ Temp. | Mounting Type | Surface Mount Land Size [x] | Surface Mount Land Size [y] | Surface Mount Land Size [y] | Surface Mount Land Size [x] | Voltage - Rated | Ripple Current @ High Frequency | Tolerance | Operating Temperature [Min] | Operating Temperature [Max] | Polarization |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nichicon | Automotive | 0.563 " | 14.3 mm | AEC-Q200 | 680 µF | Radial Can - SMD | 0.394 in | 10 mm | 475 mA | 5000 Hrs | Surface Mount | 0.406 " | 0.406 in | 10.3 mm | 10.3 mm | 25 VDC | 950 mA | 20 % | -55 C | 105 ░C | Polar |
