THB 3 Series

Catalog

DC DC CONVERTER +/-15V 3W

Part	Mounting Type	Voltage - Output 2	Features	Efficiency	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Current - Output (Max)	Current - Output (Max)	Voltage - Input (Min) [Min]	Power (Watts)	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Type	Voltage - Input (Max) [Max]	Applications	Number of Outputs	Voltage - Isolation	Current - Output (Max) [Max]	Current - Output (Max)
Traco Power THB 3-1223	Through Hole	-15 V	SCP	80 %	24-DIP Module 6 Leads	1.25 in	0.8 "	31.8 mm	20.3 mm	10.5 mm	0.41 in	100 mA	100 mA	9 V	3 W	15 V	-40 °C	85 °C	Isolated Module	18 V	ITE (Commercial) Medical	2	3000 V
Traco Power THB 3-2412	Through Hole		SCP	83 %	24-DIP Module 6 Leads	1.25 in	0.8 "	31.8 mm	20.3 mm	10.5 mm	0.41 in			18 V	3 W	12 V	-40 °C	85 °C	Isolated Module	36 V	ITE (Commercial) Medical	1	3000 V	250 mA

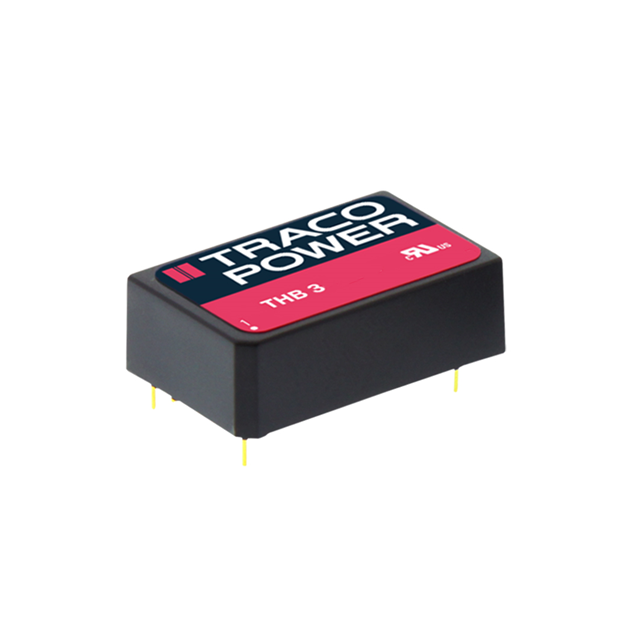

Traco Power THB 3-1222	Through Hole	-12 V	SCP	80 %	24-DIP Module 6 Leads	1.25 in	0.8 "	31.8 mm	20.3 mm	10.5 mm	0.41 in			9 V	3 W	12 V	-40 °C	85 °C	Isolated Module	18 V	ITE (Commercial) Medical	2	3000 V		125 mA
Traco Power THB 3-4822	Through Hole	-12 V	SCP	83 %	24-DIP Module 6 Leads	1.25 in	0.8 "	31.8 mm	20.3 mm	10.5 mm	0.41 in			36 V	3 W	12 V	-40 °C	85 °C	Isolated Module	75 V	ITE (Commercial) Medical	2	3000 V		125 mA
