DF50 Series

Catalog

BOARD CONNECTOR, 40 CONTACT(S), 2 ROW(S), MALE, STRAIGHT, 0.039 INCH PITCH, SURFACE MOUNT TERMINAL, LOCKING, BLACK INSULATOR,

Part	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Contact Material	Mounting Type	Shrouding	Contact Type	Voltage Rating	Insulation Color	Termination	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Number of Rows	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Number of Positions	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Material Flammability Rating	Mated Stacking Heights	Features	Insulation Material	Insulation Height	Insulation Height	Wire Gauge [Max]	Wire Gauge [Min]	Pin or Socket	Contact Termination	Contact Finish	Wire Gauge

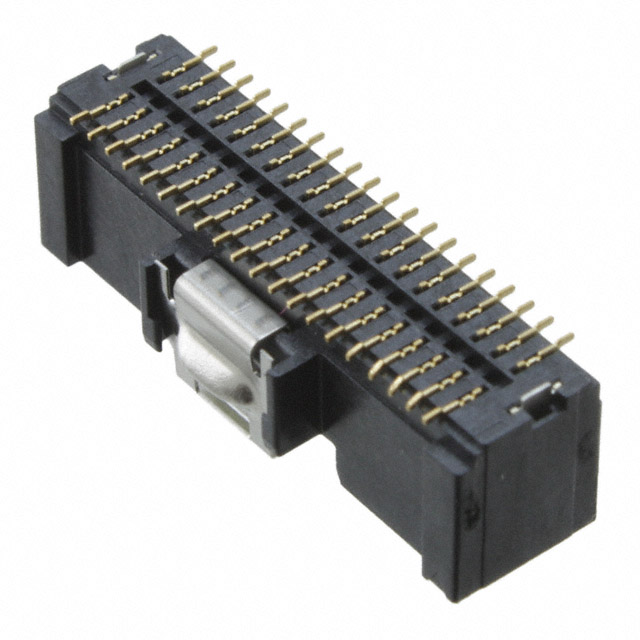

Hirose Electric USA, Inc. DF50-40DP-1V(51)	0.039 in	1 mm	Gold	Brass	Surface Mount	Shrouded - 4 Wall	Male Blade	100 V	Black	Solder	Board to Cable/Wire	2 µin	0.051 µm	All	2	Latch Lock	-35 °C	85 °C	Gold	40	Header	2 µin	0.051 µm	UL94 V-0	7.35 mm	Solder Retention	Polyester	0.278 in	7.06 mm

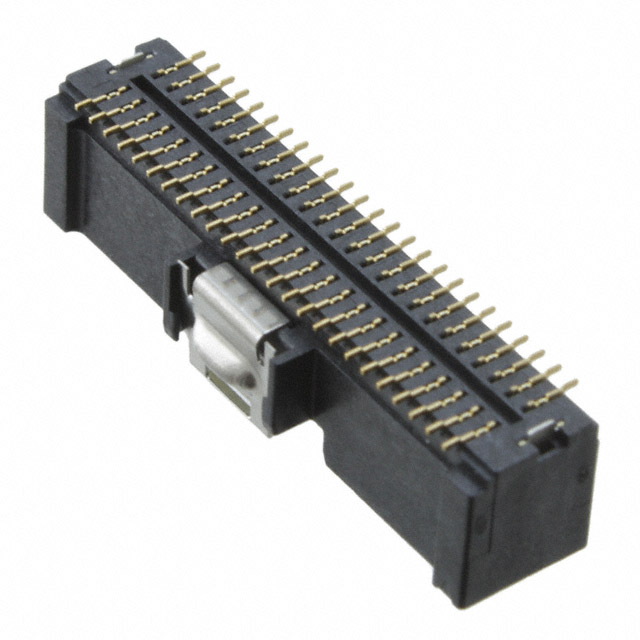

Hirose Electric USA, Inc. DF50-50DP-1V(52)	0.039 in	1 mm	Gold	Brass	Surface Mount	Shrouded - 4 Wall	Male Blade	100 V	Black	Solder	Board to Cable/Wire	2 µin	0.051 µm	All	2	Latch Lock	-35 °C	85 °C		50	Header			UL94 V-0	7.35 mm	Solder Retention	Polyester	0.278 in	7.06 mm
Hirose Electric USA, Inc. DF50-2830SCFA																														30 AWG	27.5 AWG	Socket	Crimp	Gold

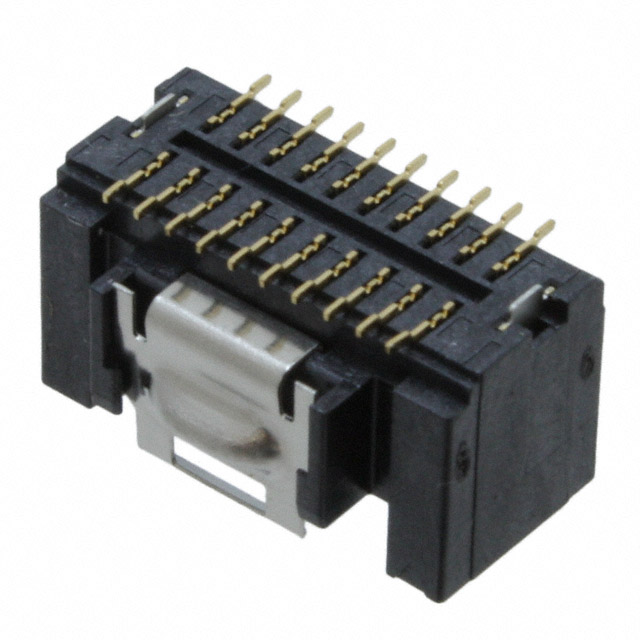

Hirose Electric USA, Inc. DF50-20DP-1V(51)	0.039 in	1 mm	Gold	Brass	Surface Mount	Shrouded - 4 Wall	Male Blade	100 V	Black	Solder	Board to Cable/Wire	2 µin	0.051 µm	All	2	Latch Lock	-35 °C	85 °C	Gold	20	Header	2 µin	0.051 µm	UL94 V-0	7.35 mm	Solder Retention	Polyester	0.278 in	7.06 mm
Hirose Electric USA, Inc. DF50-40DP-1V(52)	0.039 in	1 mm	Gold	Brass	Surface Mount	Shrouded - 4 Wall	Male Blade	100 V	Black	Solder	Board to Cable/Wire			All	2	Latch Lock	-35 °C	85 °C		40	Header			UL94 V-0	7.35 mm	Solder Retention	Polyester	0.278 in	7.06 mm
Hirose Electric USA, Inc. DF50-40DP-1H(76)
Hirose Electric USA, Inc. DF50-50DP-1V(76)	0.039 in	1 mm	Gold	Brass	Surface Mount	Shrouded - 4 Wall	Male Blade	100 V	Natural	Solder	Board to Cable/Wire	2 µin	0.051 µm	All	2	Latch Lock	-35 °C	85 °C		50	Header			UL94 V-0	7.35 mm	Solder Retention	Polyester	0.278 in	7.06 mm
Hirose Electric USA, Inc. DF50-26SCFA																																Socket	Crimp		26 AWG
Hirose Electric USA, Inc. DF50-50DP-1V(62)	0.039 in	1 mm	Gold	Brass	Surface Mount	Shrouded - 4 Wall	Male Blade	100 V	Natural	Solder	Board to Cable/Wire	2 µin	0.051 µm	All	2	Latch Lock	-35 °C	85 °C		50	Header			UL94 V-0	7.35 mm	Solder Retention	Polyester	0.278 in	7.06 mm
Hirose Electric USA, Inc. DF50-40DP-1V(72)
