04-0513 Series

Catalog

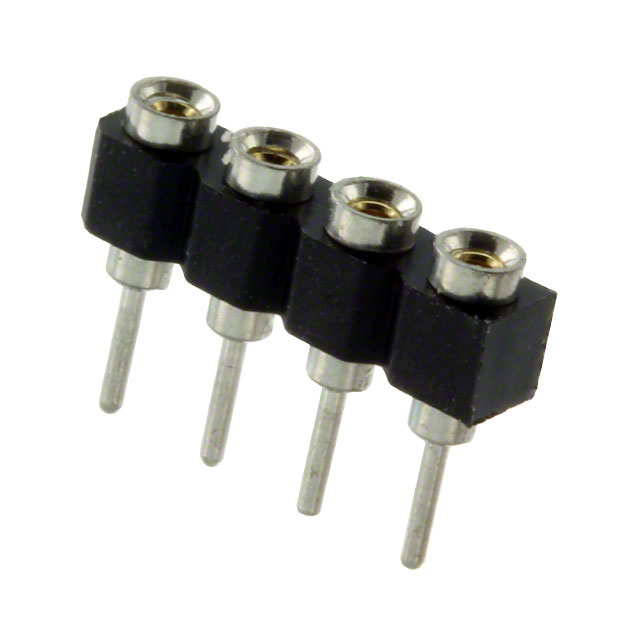

CONN SOCKET SIP 4POS GOLD

Part	Material Flammability Rating	Current Rating (Amps)	Termination Post Length	Termination Post Length	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Housing Material	Contact Material - Post [custom]	Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid)	Pitch - Post	Pitch - Post	Termination	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Contact Material - Mating
Aries Electronics 04-0513-10T	UL94 V-0	3 A	0.125 in	3.18 mm	Through Hole	200 µin	5.08 µm	Polyamide (PA46) Nylon 4/6 Glass Filled	Brass	SIP	0.25 µm	10 µin	Gold	1 x 4	4 pins	0.1 in	2.54 mm	Solder	0.1 "	2.54 mm	Tin	Beryllium Copper
Aries Electronics 04-0513-10H	UL94 V-0	3 A	0.125 in	3.18 mm	Through Hole	200 µin	5.08 µm	Polyamide (PA46) Nylon 4/6 Glass Filled	Brass	SIP	0.25 µm	10 µin	Gold	1 x 4	4 pins	0.1 in	2.54 mm	Solder	0.1 "	2.54 mm	Tin	Beryllium Copper
Aries Electronics 04-0513-10	UL94 V-0	3 A	0.125 in	3.18 mm	Through Hole	200 µin	5.08 µm	Polyamide (PA46) Nylon 4/6 Glass Filled	Brass	SIP	0.25 µm	10 µin	Gold	1 x 4	4 pins	0.1 in	2.54 mm	Solder	0.1 "	2.54 mm	Tin	Beryllium Copper
