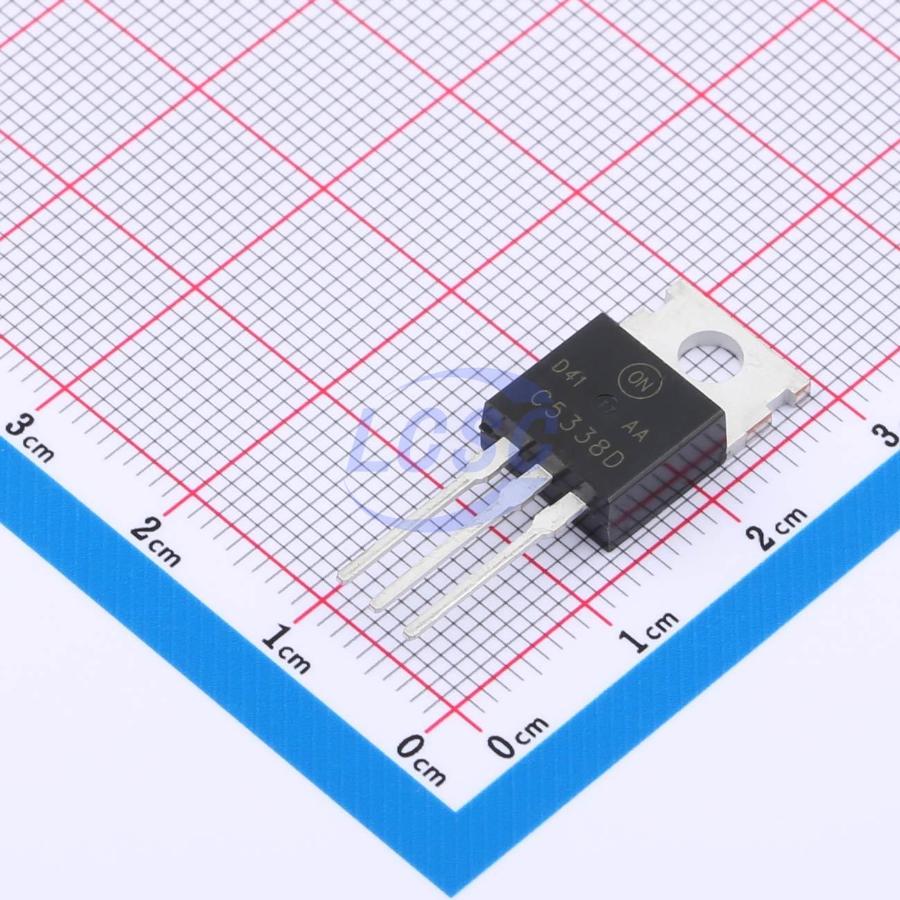

NPN Triple Diffused Planar Silicon Transistor
NPN Triple Diffused Planar Silicon Transistor
| Part | Package / Case | Power - Max [Max] | Current - Collector Cutoff (Max) [Max] | Transistor Type | DC Current Gain (hFE) (Min) @ Ic, Vce [Min] | Vce Saturation (Max) @ Ib, Ic | Operating Temperature | Voltage - Collector Emitter Breakdown (Max) | Mounting Type | Current - Collector (Ic) (Max) | Supplier Device Package | Frequency - Transition |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ON Semiconductor | TO-220-3 | 75 W | 100 µA | NPN | 6 | 500 mV | 150 °C | 450 V | Through Hole | 5 A | TO-220-3 | 11 MHz |
