HIF6H Series

Catalog

HEADERS & WIRE HOUSINGS 40P STRT PIN HEADER T/H BRD MNT GOLD PLT

Part	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Termination	Shrouding	Number of Positions Loaded	Material Flammability Rating	Contact Material	Number of Positions	Insulation Height [z]	Insulation Height [z]	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Shape	Style	Insulation Color	Voltage Rating	Overall Contact Length	Overall Contact Length	Number of Rows [custom]	Contact Length - Post [custom]	Contact Length - Post	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Connector Type	Fastening Type	Contact Length - Mating	Contact Length - Mating	Contact Type	Insulation Height	Insulation Height	Number of Positions [custom]
Hirose Electric Co Ltd HIF6H-40PA-1.27DSA(71)	78.7 µin	2 µm	Solder	Shrouded - 4 Wall	All	UL94 V-0	Brass	40	0.606 "	15.39 mm	Tin	1.27 mm	0.05 in	Through Hole	8 µin	0.203 µm	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	Square	Board to Cable/Wire	Black	300 VDC	0.563 "	14.3 mm	2	0.11 in	2.79 mm	0.5 A	-55 C	85 °C	Gold	Header	Latch Lock/Eject Hooks	0.205 in	5.21 mm	Male Pin

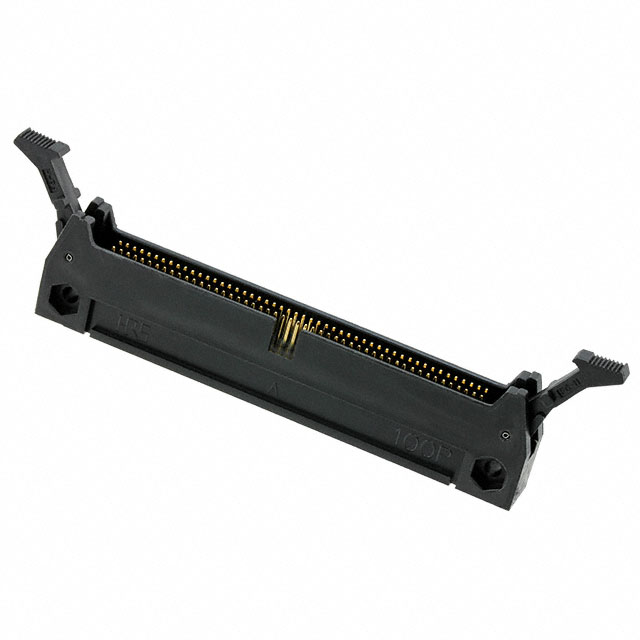

Hirose Electric Co Ltd HIF6H-100PA-1.27DS(71)	78.7 µin	2 µm	Solder	Shrouded - 4 Wall	All	UL94 V-0	Brass	100			Tin	1.27 mm	0.05 in	Right Angle Through Hole	8 µin	0.203 µm	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	Square	Board to Cable/Wire	Black	300 VDC			2			0.5 A	-55 C	85 °C	Gold	Header	Latch Lock/Eject Hooks	0.205 in	5.21 mm	Male Pin	0.335 "	8.51 mm

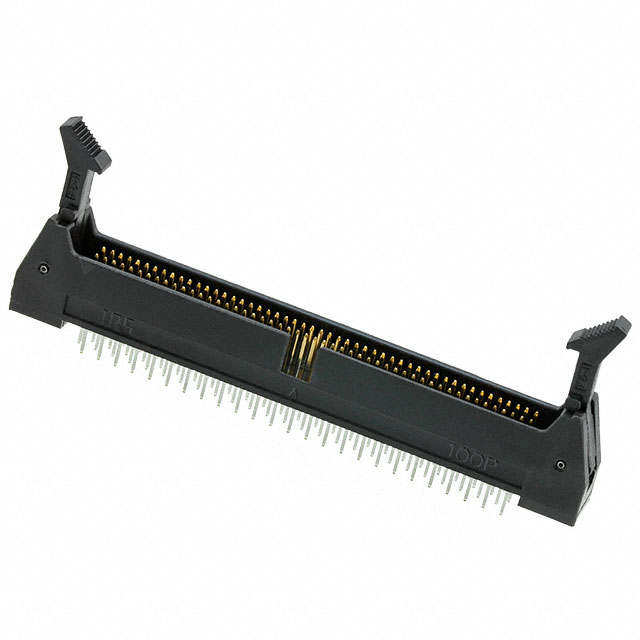

Hirose Electric Co Ltd HIF6H-100PA-1.27DSA(71)	78.7 µin	2 µm	Solder	Shrouded - 4 Wall	All	UL94 V-0	Brass	100	0.606 "	15.39 mm	Tin	1.27 mm	0.05 in	Through Hole	8 µin	0.203 µm	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	Square	Board to Cable/Wire	Black	300 VDC	0.563 "	14.3 mm	2	0.11 in	2.79 mm	0.5 A	-55 C	85 °C	Gold	Header	Latch Lock/Eject Hooks	0.205 in	5.21 mm	Male Pin

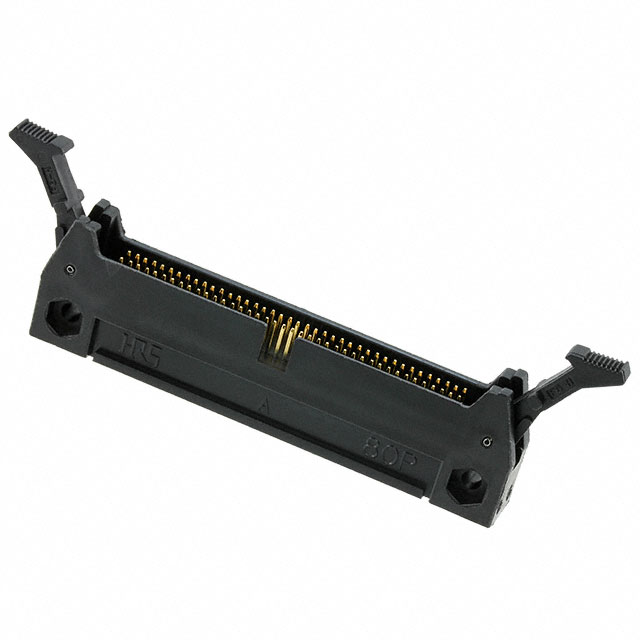

Hirose Electric Co Ltd HIF6H-80PA-1.27DS(71)	78.7 µin	2 µm	Solder	Shrouded - 4 Wall	All	UL94 V-0	Brass	80			Tin	1.27 mm	0.05 in	Right Angle Through Hole	8 µin	0.203 µm	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	Square	Board to Cable/Wire	Black	300 VDC			2			0.5 A	-55 C	85 °C	Gold	Header	Latch Lock/Eject Hooks	0.205 in	5.21 mm	Male Pin	0.335 "	8.51 mm
Hirose Electric Co Ltd HIF6H-34PA-1.27DS(71)	78.7 µin	2 µm	Solder	Shrouded - 4 Wall	All	UL94 V-0	Brass				Tin	1.27 mm	0.05 in	Right Angle Through Hole	8 µin	0.203 µm	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	Square	Board to Cable/Wire	Black	300 VDC			2			0.5 A	-55 C	85 °C	Gold	Header	Latch Lock/Eject Hooks	0.205 in	5.21 mm	Male Pin	0.335 "	8.51 mm	34

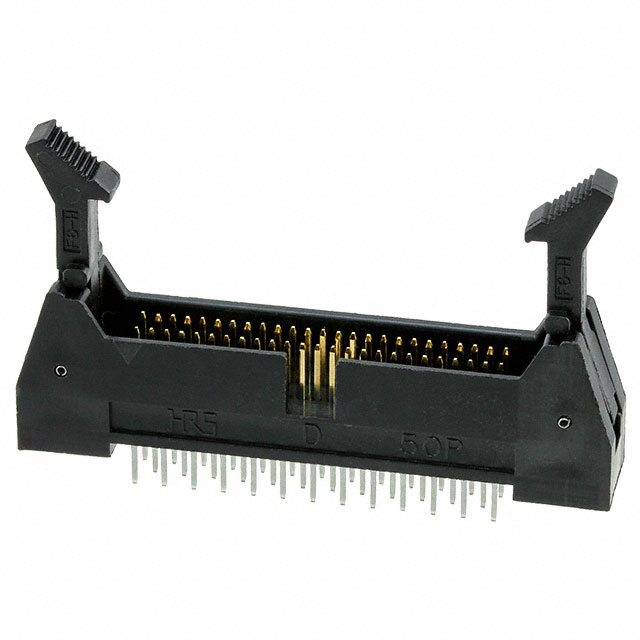

Hirose Electric Co Ltd HIF6H-50PA-1.27DSA(71)	78.7 µin	2 µm	Solder	Shrouded - 4 Wall	All	UL94 V-0	Brass	50	0.606 "	15.39 mm	Tin	1.27 mm	0.05 in	Through Hole	8 µin	0.203 µm	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	Square	Board to Cable/Wire	Black	300 VDC	0.563 "	14.3 mm	2	0.11 in	2.79 mm	0.5 A	-55 C	85 °C	Gold	Header	Latch Lock/Eject Hooks	0.205 in	5.21 mm	Male Pin
Hirose Electric Co Ltd HIF6H-50PA-1.27DS(71)	78.7 µin	2 µm	Solder	Shrouded - 4 Wall	All	UL94 V-0	Brass	50			Tin	1.27 mm	0.05 in	Right Angle Through Hole	8 µin	0.203 µm	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	Square	Board to Cable/Wire	Black	300 VDC			2			0.5 A	-55 C	85 °C	Gold	Header	Latch Lock/Eject Hooks	0.205 in	5.21 mm	Male Pin	0.335 "	8.51 mm

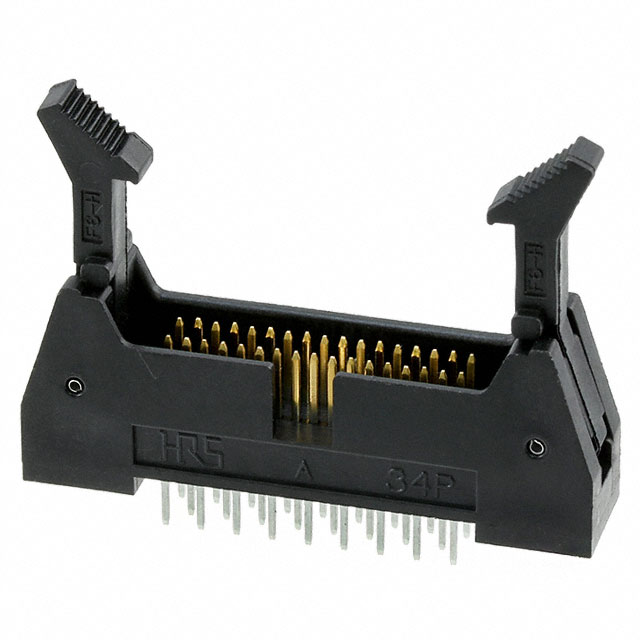

Hirose Electric Co Ltd HIF6H-34PA-1.27DSA(71)	78.7 µin	2 µm	Solder	Shrouded - 4 Wall	All	UL94 V-0	Brass		0.606 "	15.39 mm	Tin	1.27 mm	0.05 in	Through Hole	8 µin	0.203 µm	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	Square	Board to Cable/Wire	Black	300 VDC	0.563 "	14.3 mm	2	0.11 in	2.79 mm	0.5 A	-55 C	85 °C	Gold	Header	Latch Lock/Eject Hooks	0.205 in	5.21 mm	Male Pin			34
