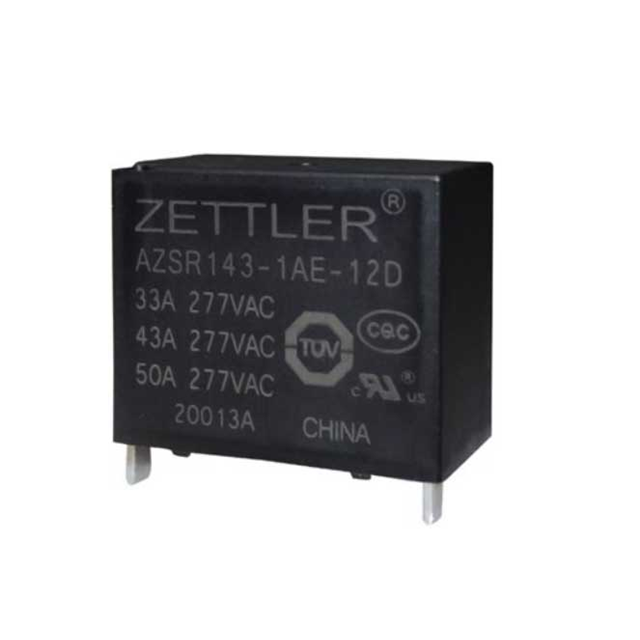

AZSR143 Series
Manufacturer: American Zettler
Beta
⌘K
RELAY EV CHG SOLAR SPST 50A 12V
| Part | Coil Resistance | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Coil Insulation | Coil Current | Must Release Voltage | Switching Voltage [Max] | Contact Material | Contact Rating (Current) | Approval Agency | Coil Type | Mounting Type | Coil Voltage | Relay Type | Release Time | Operate Time | Contact Form | Must Operate Voltage | Load - Max Switching [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 American Zettler | 90 Ohms | PC Pin | 85 °C | -40 C | Class F | 133.3 mA | 0.6 VDC | 277 VAC | Silver Tin Oxide (AgSnO) | 50 A | CQC cURus TUV | Non Latching | Through Hole | 12 VDC | EV Charging Solar | 10 ms | 20 ms | SPST-NO (1 Form A) | 9 VDC | 19200 VA |
American Zettler | 360 Ohms | PC Pin | 85 °C | -40 C | Class F | 66.7 mA | 1.2 VDC | 277 VAC | Silver Tin Oxide (AgSnO) | 50 A | CQC cURus TUV | Non Latching | Through Hole | 24 VDC | EV Charging Solar | 10 ms | 20 ms | SPST-NO (1 Form A) | 18 VDC | 19200 VA |
