C0785 Series
Manufacturer: Prysmian Group
Beta
⌘K

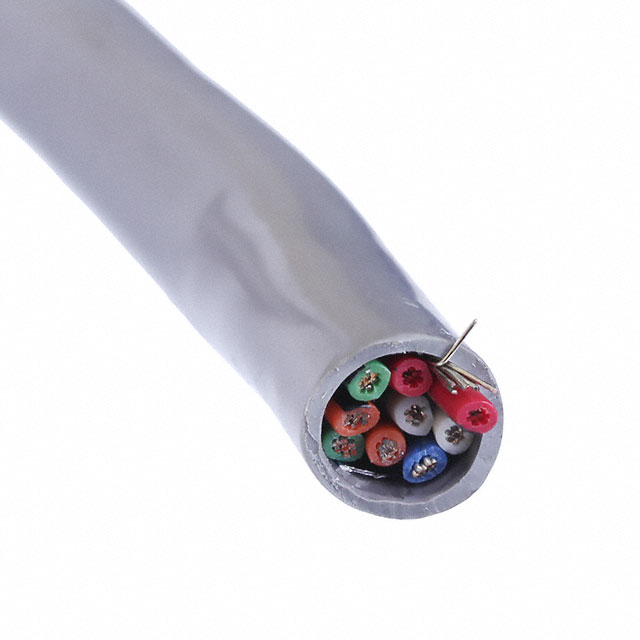

CABLE 10CON 20AWG GRAY SHLD 100'
| Part | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Shield Type | Jacket Color | Voltage | Shield Material | Length [x] | Length [x] | Wire Gauge | Shield Coverage | Usage | Ratings | Conductor Insulation | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Features | Jacket (Insulation) Material | Cable Type | Length | Length | Conductor Strand [custom] | Conductor Strand [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Number of Conductors [custom] | Conductor Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | 0.813 mm | 0.032 in | Foil | Gray | 300 VDC | Flexfoil® | 100 ft | 30.5 m | 20 AWG | 100 % | Computer | ASTM B-33 | Poly-Vinyl Chloride (PVC) | 0.345 in | 8.76 mm | Drain Wire | Poly-Vinyl Chloride (PVC) | Multi-Conductor | 304.8 m | 1000 ft | 28 AWG | 7 | 80 °C | -20 ░C | 10 | Copper Tinned |
Prysmian Group | 0.813 mm | 0.032 in | Foil | Gray | 300 VDC | 100 ft | 30.5 m | 20 AWG | Computer | ASTM B-33 | Poly-Vinyl Chloride (PVC) | 0.345 in | 8.76 mm | Drain Wire | Poly-Vinyl Chloride (PVC) | Multi-Conductor | 15.24 m 152.4 m 304.8 m | 50 ft 500 ft 1000 ft | 28 AWG | 7 | 80 °C | -20 ░C | 10 | Copper Tinned |
