MP45 Series

Catalog

MIC MEMS DIGITAL PDM OMNI -26DB

Part	S/N Ratio	Port Location	Shape	Current - Supply	Output Type	Termination	Voltage Range [Min]	Voltage Range [Max]	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Sensitivity	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Direction	Voltage - Rated	Frequency Range [Min]	Frequency Range [Max]	Type	Height (Max) [z]	Height (Max) [z]

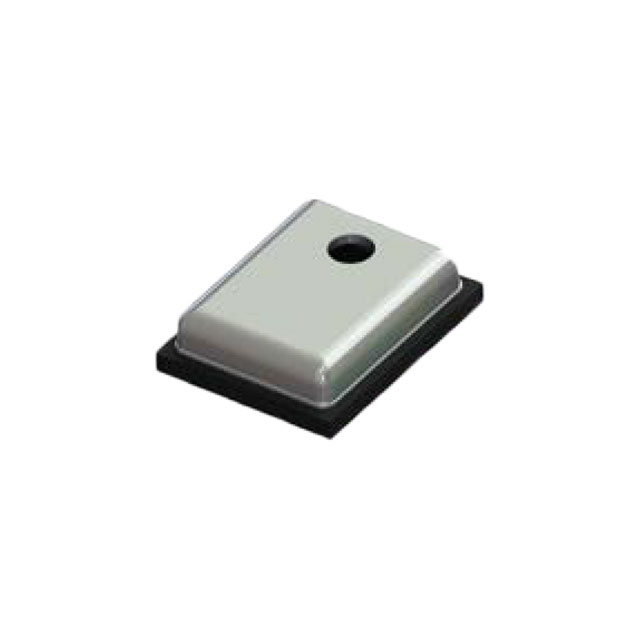

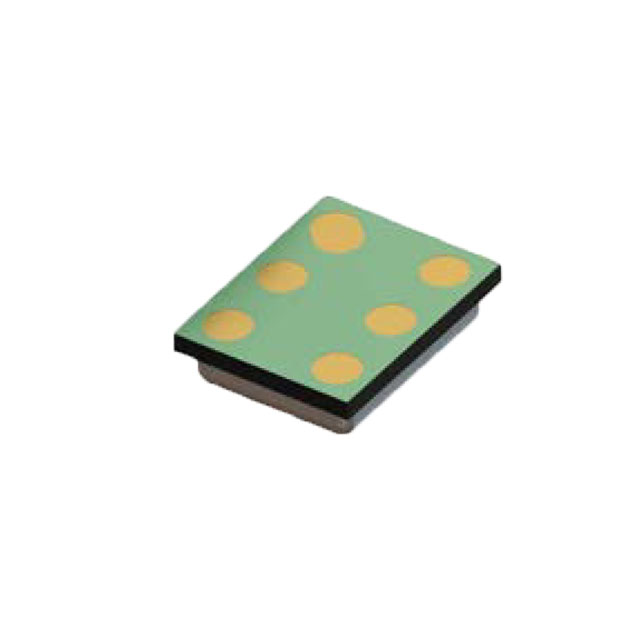

STMicroelectronics MP45DT02	61 dB	Top	Rectangular	650 µA	Digital PDM	Solder Pads	1.64 V	3.6 V	1.38 mm	0.054 in	-26 dB	4.72 mm	3.76 mm	0.186 in	0.148 in	Omnidirectional	1.8 V	100 Hz	10 kHz	MEMS (Silicon)
STMicroelectronics MP45DT02TR-M	61 dB	Top	Rectangular	650 µA	Digital PDM	Solder Pads	1.64 V	3.6 V			-26 dB	4.72 mm	3.76 mm	0.186 in	0.148 in	Omnidirectional	1.8 V	100 Hz	10 kHz	MEMS (Silicon)	1.35 mm	0.053 in

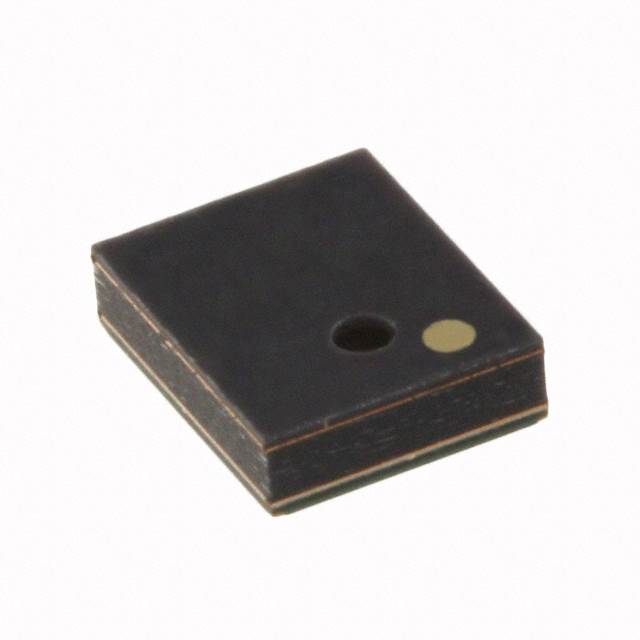

STMicroelectronics MP45DT02TR	61 dB	Top	Rectangular	650 µA	Digital PDM	Solder Pads	1.64 V	3.6 V	1.38 mm	0.054 in	-26 dB	4.72 mm	3.76 mm	0.186 in	0.148 in	Omnidirectional	1.8 V	100 Hz	10 kHz	MEMS (Silicon)
