PIC12C509A Series

Catalog

8-BIT, OTPROM, 4 MHZ, RISC MICROCONTROLLER, PDIP8, 0.300 INCH, PLASTIC, DIP-8

Part	Peripherals	Package / Case	Package / Case	Package / Case	RAM Size	Supplier Device Package	Program Memory Type	Core Processor	Mounting Type	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Program Memory Size	Oscillator Type	Speed	Number of I/O	Core Size	Package / Case [y]	Package / Case [x]
Microchip Technology PIC12LC509A-04I/P	POR WDT	0.3 in	8-DIP	7.62 mm	41 x 8	8-PDIP	OTP	PIC	Through Hole	2.5 V	5.5 V	85 °C	-40 °C	1.5 KB	Internal	4 MHz	5	8-Bit
Microchip Technology PIC12C509A-04I/P	POR WDT	0.3 in	8-DIP	7.62 mm	41 x 8	8-PDIP	OTP	PIC	Through Hole	3 V	5.5 V	85 °C	-40 °C	1.5 KB	Internal	4 MHz	5	8-Bit
Microchip Technology PIC12C509AT-04I/SM	POR WDT		8-SOIC		41 x 8	8-SOIJ	OTP	PIC	Surface Mount	3 V	5.5 V	85 °C	-40 °C	1.5 KB	Internal	4 MHz	5	8-Bit	5.3 mm	0.209 "

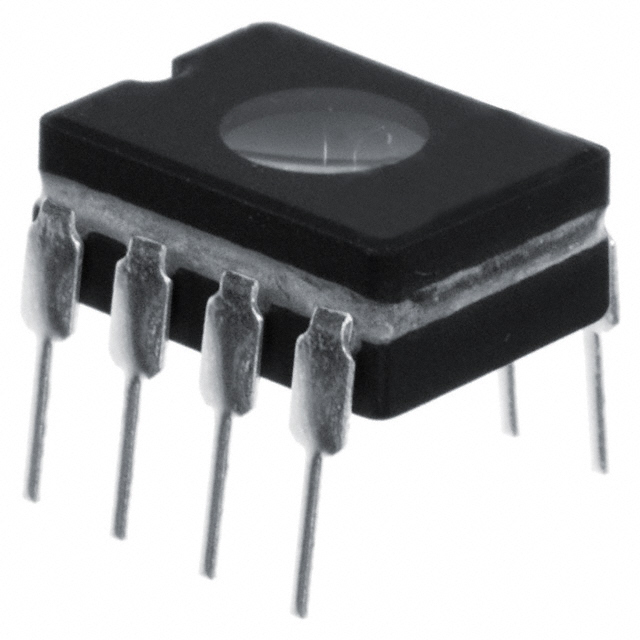

Microchip Technology PIC12C509/JW	POR WDT				41 x 8	8-CDIP	EPROM UV	PIC	Through Hole	2.5 V	5.5 V	70 °C	0 °C	1.5 KB	Internal	4 MHz	5	8-Bit
Microchip Technology PIC12C509AT-04/SN	POR WDT		8-SOIC		41 x 8	8-SOIC	OTP	PIC	Surface Mount	3 V	5.5 V	70 °C	0 °C	1.5 KB	Internal	4 MHz	5	8-Bit	3.9 mm	0.154 in
Microchip Technology PIC12LC509A-04I/MF	POR WDT		8-VDFN Exposed Pad		41 x 8	8-DFN (3x3)	OTP	PIC	Surface Mount	2.5 V	5.5 V	85 °C	-40 °C	1.5 KB	Internal	4 MHz	5	8-Bit
Microchip Technology PIC12C509T-04/SM	POR WDT		8-SOIC		41 x 8	8-SOIJ	OTP	PIC	Surface Mount	2.5 V	5.5 V	70 °C	0 °C	1.5 KB	Internal	4 MHz	5	8-Bit	5.3 mm	0.209 "
Microchip Technology PIC12C509T-04I/SM	POR WDT		8-SOIC		41 x 8	8-SOIJ	OTP	PIC	Surface Mount	2.5 V	5.5 V	85 °C	-40 °C	1.5 KB	Internal	4 MHz	5	8-Bit	5.3 mm	0.209 "
Microchip Technology PIC12LC509A-04I/SN	POR WDT		8-SOIC		41 x 8	8-SOIC	OTP	PIC	Surface Mount	2.5 V	5.5 V	85 °C	-40 °C	1.5 KB	Internal	4 MHz	5	8-Bit	3.9 mm	0.154 in
Microchip Technology PIC12C509A-04E/SN	POR WDT		8-SOIC		41 x 8	8-SOIC	OTP	PIC	Surface Mount	3 V	5.5 V	125 °C	-40 °C	1.5 KB	Internal	4 MHz	5	8-Bit	3.9 mm	0.154 in

Catalog

Key Features

• * 6 I/O pins with 25mA source/sink per I/O, 4 oscillator selections including the internal 4 MHz RC oscillator with programmable calibration, and Power-on Reset.

Description

This powerful (1µsecond instruction execution) yet easy-to-program (only 33 single word instructions) CMOS OTP-based 8-bit microcontroller packs Microchip’s powerful PIC® architecture into an 8-pin package. Easily adapted for automotive, industrial, appliances and consumer entry-level product applications.
