DF1BZ Series

Catalog

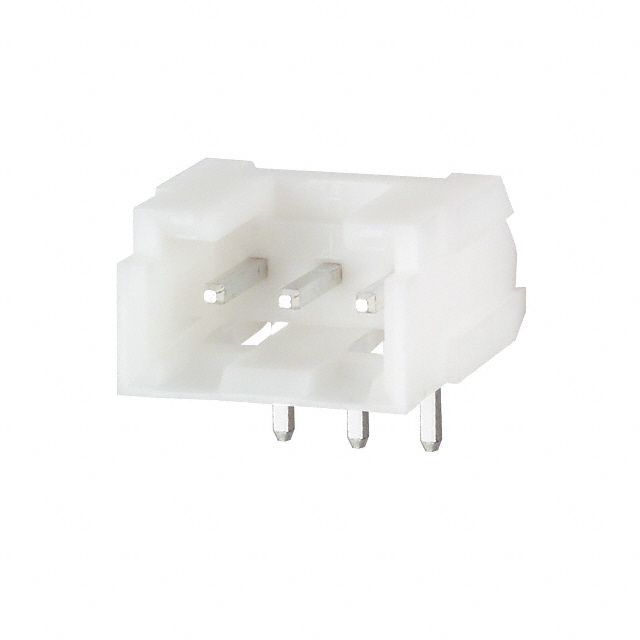

CONN HEADER R/A 13POS 2.5MM

...

Part	Number of Positions	Termination	Contact Length - Mating	Contact Length - Mating	Style	Contact Length - Post	Contact Length - Post	Connector Type	Features	Fastening Type	Material Flammability Rating	Number of Positions Loaded	Insulation Height [z]	Insulation Height [z]	Contact Material	Pitch - Mating	Pitch - Mating	Number of Rows	Contact Type	Contact Shape	Voltage Rating	Contact Finish - Post	Mounting Type	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]	Shrouding	Insulation Color	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height	Insulation Height	Number of Rows [custom]	Mated Stacking Heights	Overall Contact Length	Overall Contact Length
Hirose Electric Co Ltd DF1BZ-13P-2.5DS	13	Solder	0.177 in	4.5 mm	Board to Cable/Wire	0.142 in	3.6 mm	Header	Keying Slot	Push-Pull	UL94 V-0	All	5.69 mm	0.224 in	Brass	2.5 mm	0.098 in	1	Male Pin	Square	150 VDC	Tin	Right Angle Through Hole	Nylon Polyamide (PA)	85 °C	-35 °C	Shrouded - 4 Wall	White	39.4 µin	1 µm
Hirose Electric Co Ltd DF1BZ-3P-2.5DS		Solder	0.177 in	4.5 mm	Board to Cable/Wire	0.142 in	3.6 mm	Header	Keying Slot	Push-Pull	UL94 V-0	All	5.69 mm	0.224 in	Brass	2.5 mm	0.098 in	1	Male Pin	Square	150 VDC	Tin	Right Angle Through Hole	Nylon Polyamide (PA)	85 °C	-35 °C	Shrouded - 4 Wall	White	39.4 µin	1 µm
Hirose Electric Co Ltd DF1BZ-10P-2.5DS	10	Solder	0.177 in	4.5 mm	Board to Cable/Wire	0.142 in	3.6 mm	Header	Keying Slot	Push-Pull	UL94 V-0	All	5.69 mm	0.224 in	Brass	2.5 mm	0.098 in	1	Male Pin	Square	150 VDC	Tin	Right Angle Through Hole	Nylon Polyamide (PA)	85 °C	-35 °C	Shrouded - 4 Wall	White	39.4 µin	1 µm
Hirose Electric Co Ltd DF1BZ-8DP-2.5DS(28)	8	Solder	0.177 in	4.5 mm	Board to Cable/Wire	0.13 "	3.3 mm	Header	Keying Slot	Push-Pull	UL94 V-0	All			Brass	2.5 mm	0.098 in		Male Pin	Square	150 VDC	Tin	Right Angle Through Hole	Nylon Polyamide (PA)	85 °C	-35 °C	Shrouded - 4 Wall		39.4 µin	1 µm	2.5 mm	0.098 in	8.61 mm	0.339 "	2
Hirose Electric Co Ltd DF1BZ-7P-2.5DS(22)
Hirose Electric Co Ltd DF1BZ-13P-2.5DSA	13	Solder	0.177 in	4.5 mm	Board to Cable/Wire	0.142 in	3.6 mm	Header	Keying Slot	Push-Pull	UL94 V-0	All	9.5 mm	0.374 in	Brass	2.5 mm	0.098 in	1	Male Pin	Square	250 V	Tin	Through Hole	Nylon Polyamide (PA)	85 °C	-35 °C	Shrouded - 4 Wall	White	39.4 µin	1 µm						14 mm	10.6 mm	0.417 in
Hirose Electric Co Ltd DF1BZ-5P-2.5DSA(11)
Hirose Electric Co Ltd DF1BZ-18DP-2.5DS(26)
Hirose Electric Co Ltd DF1BZ-8P-2.5DS(16)
Hirose Electric Co Ltd DF1BZ-10P-2.5DSA	10	Solder	0.177 in	4.5 mm	Board to Cable/Wire	0.142 in	3.6 mm	Header	Keying Slot	Push-Pull	UL94 V-0	All	9.5 mm	0.374 in	Brass	2.5 mm	0.098 in	1	Male Pin	Square	250 V	Tin	Through Hole	Nylon Polyamide (PA)	85 °C	-35 °C	Shrouded - 4 Wall	White	39.4 µin	1 µm						14 mm	10.6 mm	0.417 in
