HIF6 Series

Catalog

CONN RCPT 34POS IDC 28AWG GOLD

Part	Cable Termination	Wire Type	Color	Number of Positions [custom]	Contact Finish	Mounting Type	Connector Type	Features	Pitch	Pitch	Row Spacing	Row Spacing	Number of Rows [custom]	Wire Gauge	Contact Type	Number of Positions	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Contact Finish - Mating	Insulation Material	Contact Material	Fastening Type	Insulation Color	Material Flammability Rating	Voltage Rating	Shrouding	Contact Length - Mating	Contact Length - Mating	Insulation Height	Insulation Height	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Style	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Post	Current Rating (Amps)	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post [custom]	Contact Length - Post	Insulation Height [z]	Insulation Height [z]	Overall Contact Length	Overall Contact Length

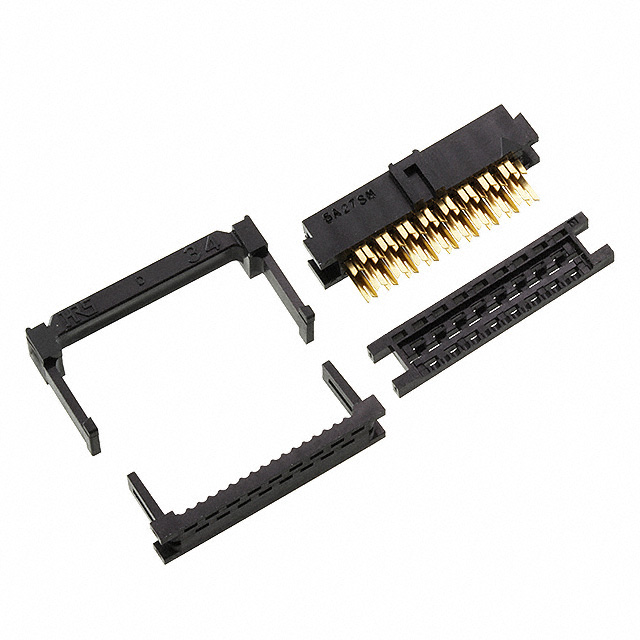

Hirose Electric Co Ltd HIF6-34D-1.27R	IDC	Ribbon Cable	Black	34	Gold	Free Hanging (In-Line)	Receptacle	Feed Through Strain Relief	0.05 in	1.27 mm	2.54 mm	0.1 "	2	28 AWG	Female Socket
Hirose Electric Co Ltd HIF6-100D-1.27R(22)	IDC	Ribbon Cable	Black		Gold	Free Hanging (In-Line)	Receptacle		0.05 in	1.27 mm	2.54 mm	0.1 "	2	28 AWG	Female Socket	100

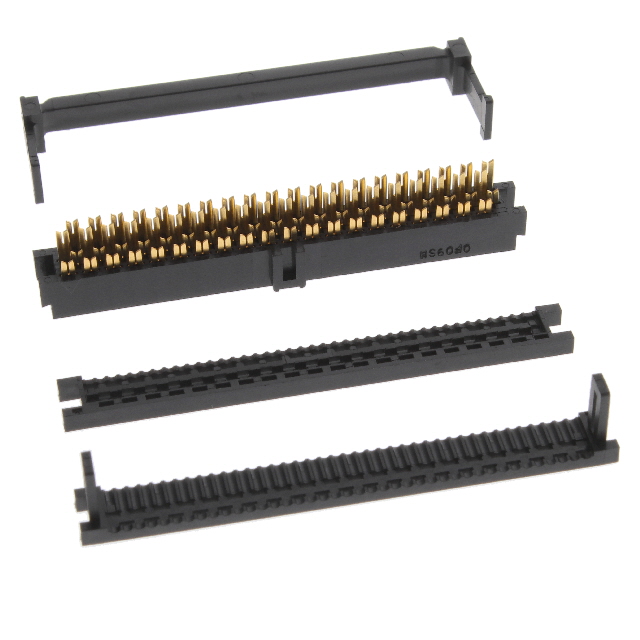

Hirose Electric Co Ltd HIF6-80D-1.27R(20)	IDC	Ribbon Cable	Black		Gold	Free Hanging (In-Line)	Receptacle	Feed Through Strain Relief	0.05 in	1.27 mm	2.54 mm	0.1 "	2	28 AWG	Female Socket	80

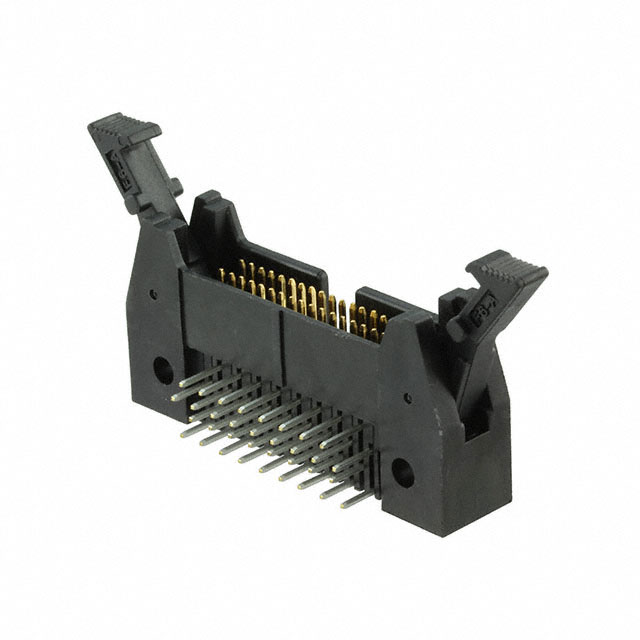

Hirose Electric Co Ltd HIF6-34PA-1.27DS(71)				34		Right Angle Through Hole	Header						2		Male Pin		78.7 µin	2 µm	Gold	Polybutylene Terephthalate (PBT)	Brass	Latch Lock/Eject Hooks	Black	UL94 V-0	300 VDC	Shrouded - 4 Wall	0.217 in	5.5 mm	0.335 "	8.51 mm	Square	-55 C	85 °C	Board to Cable/Wire	0.1 in	2.54 mm	Tin	0.5 A	All	1.27 mm	0.05 in	Solder	8 µin	0.203 µm

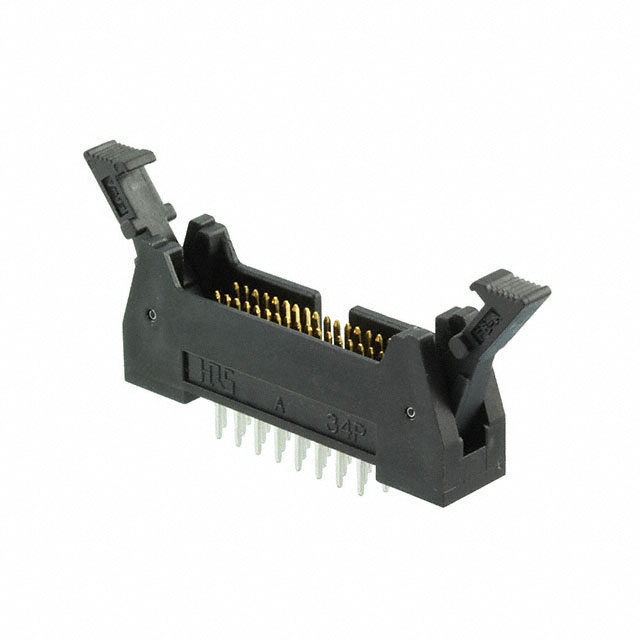

Hirose Electric Co Ltd HIF6-34PA-1.27DSA(71)				34		Through Hole	Header						2		Male Pin		78.7 µin	2 µm	Gold	Polybutylene Terephthalate (PBT)	Brass	Latch Lock/Eject Hooks	Black	UL94 V-0	300 VDC	Shrouded - 4 Wall	0.217 in	5.5 mm			Square	-55 C	85 °C	Board to Cable/Wire	0.1 in	2.54 mm	Tin	0.5 A	All	1.27 mm	0.05 in	Solder	8 µin	0.203 µm	0.11 in	2.79 mm	0.606 "	15.39 mm	0.563 "	14.3 mm
Hirose Electric Co Ltd HIF6-34D-1.27R(20)	IDC	Ribbon Cable	Black	34	Gold	Free Hanging (In-Line)	Receptacle	Feed Through Strain Relief	0.05 in	1.27 mm	2.54 mm	0.1 "	2	28 AWG	Female Socket

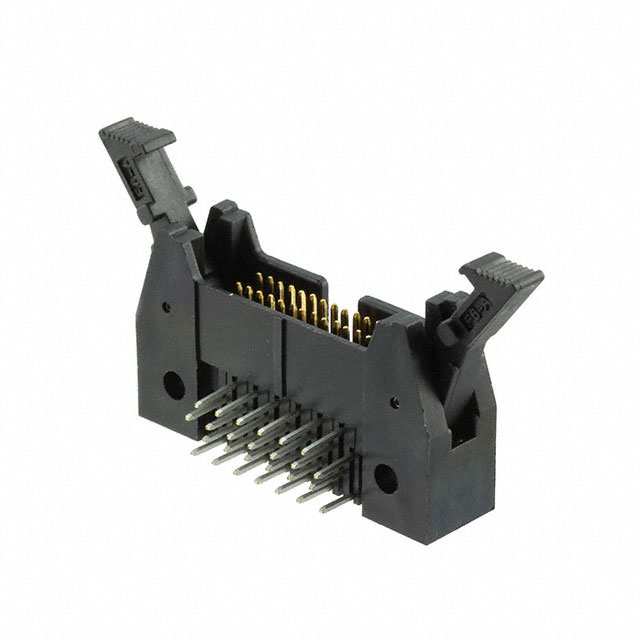

Hirose Electric Co Ltd HIF6-26PA-1.27DS(71)						Right Angle Through Hole	Header						2		Male Pin	26	78.7 µin	2 µm	Gold	Polybutylene Terephthalate (PBT)	Brass	Latch Lock/Eject Hooks	Black	UL94 V-0	300 VDC	Shrouded - 4 Wall	0.217 in	5.5 mm	0.335 "	8.51 mm	Square	-55 C	85 °C	Board to Cable/Wire	0.1 in	2.54 mm	Tin	0.5 A	All	1.27 mm	0.05 in	Solder	8 µin	0.203 µm

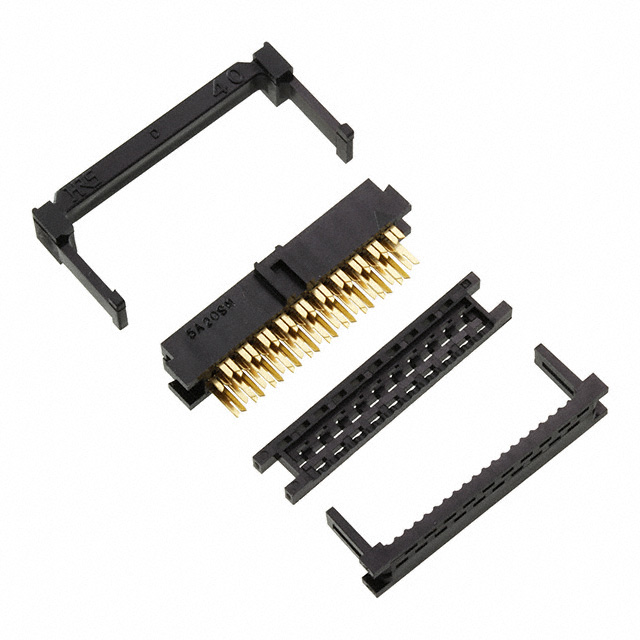

Hirose Electric Co Ltd HIF6-40D-1.27R(02)	IDC	Ribbon Cable	Black		Gold	Free Hanging (In-Line)	Receptacle	Feed Through Strain Relief	0.05 in	1.27 mm	2.54 mm	0.1 "	2	28 AWG	Female Socket	40

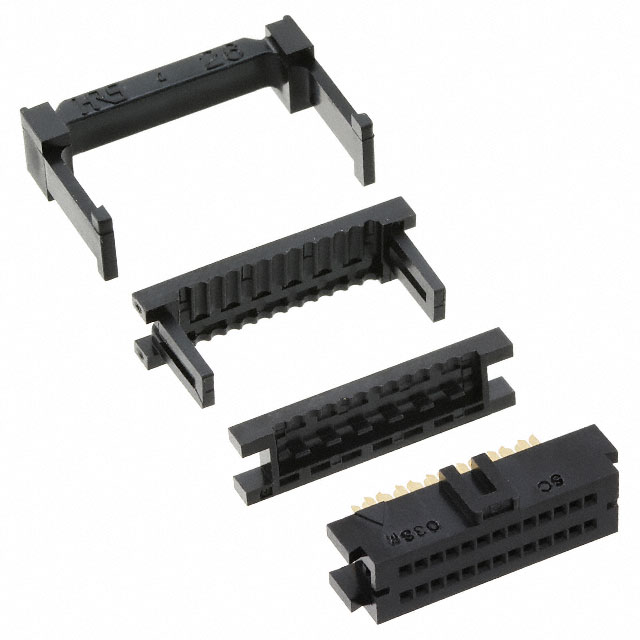

Hirose Electric Co Ltd HIF6-26D-1.27R(20)	IDC	Ribbon Cable	Black		Gold	Free Hanging (In-Line)	Receptacle	Feed Through Strain Relief	0.05 in	1.27 mm	2.54 mm	0.1 "	2	28 AWG	Female Socket	26

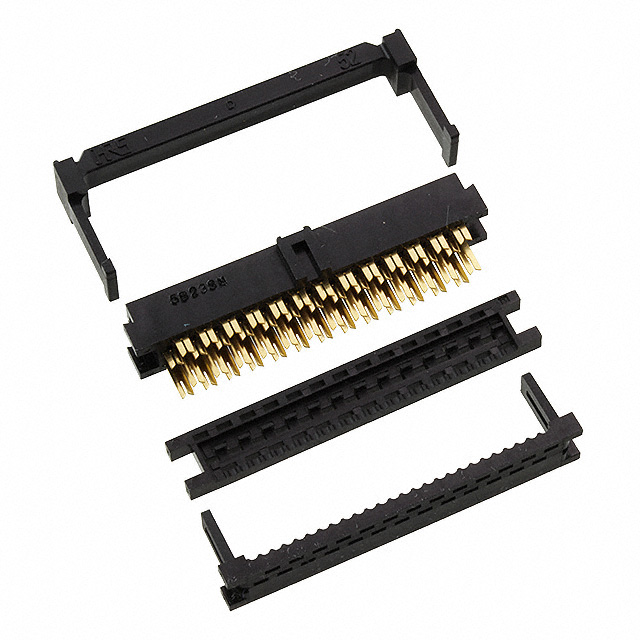

Hirose Electric Co Ltd HIF6-52D-1.27R	IDC	Ribbon Cable	Black		Gold	Free Hanging (In-Line)	Receptacle	Feed Through Strain Relief	0.05 in	1.27 mm	2.54 mm	0.1 "	2	28 AWG	Female Socket	52
