STEVAL-ISA140V1 Series

15W, 12V output, isolated flyback converter using VIPer™ Plus - VIPER37HE

Catalog

15W, 12V output, isolated flyback converter using VIPer™ Plus - VIPER37HE

Part	Outputs and Type	Contents	Utilized IC / Part	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output	Current - Output	Main Purpose	Power - Output
STMicroelectronics STEVAL-ISA140V1	1 Isolated Output	Board(s)	VIPer37	265 VAC	100 VAC	12 V	1.25 A	AC/DC Primary Side	15 W

Catalog

15W, 12V output, isolated flyback converter using VIPer™ Plus - VIPER37HE

Description

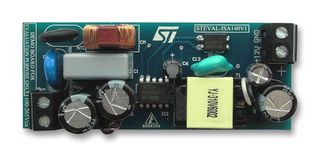

The STEVAL-ISA140V1 is a 15 W wide range evaluation board based on the Viper37HE. It is designed as an example of an isolated auxiliary power supply. The board and the transformer were designed and optimized in order to have a very compact size evaluation board.
