307-064 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 64 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
| Part | Termination Rows [custom] | Material - Insulation | Contact Material | Card Type | Pitch | Pitch | Card Thickness [Max] | Card Thickness [Min] | Mounting Type | Read Out | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Gender | Number of Positions/Bay/Row | Contact Type | Number of Rows [custom] | Contact Finish | Termination | Color | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Features | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Polyester Thermoplastic | Copper Alloy | Non Specified - Dual Edge | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Board Edge Straddle Mount | Dual | -40 C | 105 ░C | 64 | Female | 32 | Semi Bellows | 2 | Tin | Solder | Green | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | |||
 EDAC Inc. | 2 | Polyester Thermoplastic | Copper Alloy | Non Specified - Dual Edge | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | Dual | -40 C | 105 ░C | 64 | Female | 32 | Semi Bellows | 2 | Tin | Solder Eyelet(s) | Green | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides | ||||
 EDAC Inc. | 2 | Polyester Thermoplastic | Copper Alloy | Non Specified - Dual Edge | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | Dual | -40 C | 105 ░C | 64 | Female | 32 | Semi Bellows | 2 | Tin | Solder | Green | 4-40 Flush Mount Threaded Insert Top Opening | |||||
 EDAC Inc. | 2 | Polyester Thermoplastic | Copper Alloy | Non Specified - Dual Edge | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | Dual | -40 C | 105 ░C | 64 | Female | 32 | Semi Bellows | 2 | Tin | Solder | Green | 4-40 Flush Mount Threaded Insert Top Opening | |||||
 EDAC Inc. | 2 | Polyester Thermoplastic | Copper Alloy | Non Specified - Dual Edge | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | Dual | -40 C | 105 ░C | 64 | Female | 32 | Semi Bellows | 2 | Gold | Solder | Green | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | 0.25 Ám | 10 Áin | |
 EDAC Inc. | 2 | Polyester Thermoplastic | Copper Alloy | Non Specified - Dual Edge | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Board Edge Straddle Mount | Dual | -40 C | 105 ░C | 64 | Female | 32 | Semi Bellows | 2 | Gold | Solder | Green | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | Card Extender | 0.25 Ám | 10 Áin |
 EDAC Inc. | 2 | Polyester Thermoplastic | Copper Alloy | Non Specified - Dual Edge | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Right Angle Through Hole | Dual | -40 C | 105 ░C | 64 | Female | 32 | Semi Bellows | 2 | Gold | Solder Wire Wrap | Green | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | 0.25 Ám | 10 Áin | |
 EDAC Inc. | 2 | Polyester Thermoplastic | Copper Alloy | Non Specified - Dual Edge | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Right Angle Through Hole | Dual | -40 C | 105 ░C | 64 | Female | 32 | Semi Bellows | 2 | Gold | Solder Wire Wrap | Green | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | 0.25 Ám | 10 Áin | |

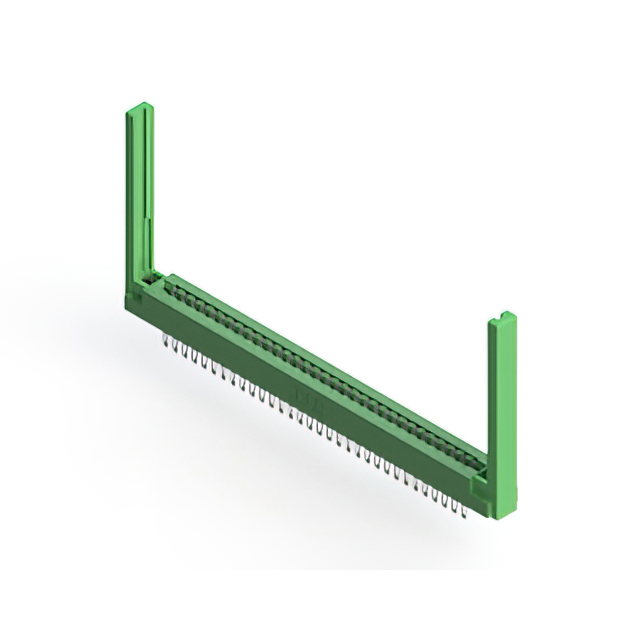

 EDAC Inc. | 2 | Polyester Thermoplastic | Copper Alloy | Non Specified - Dual Edge | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | Dual | -40 C | 105 ░C | 64 | Female | 32 | Semi Bellows | 2 | Gold | Solder Eyelet(s) | Green | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides | 0.25 Ám | 10 Áin | ||
 EDAC Inc. | 2 | Polyester Thermoplastic | Copper Alloy | Non Specified - Dual Edge | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | Dual | -40 C | 105 ░C | 64 | Female | 32 | Semi Bellows | 2 | Tin | Solder | Green | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm |
