ZE05 Series

Catalog

AUTOMOTIVE CONNECTORS PLUG, 5 POSITION

Part	Connector Type	Number of Rows	Color	Mounting Type	Fastening Type	Number of Positions	Pitch [x]	Pitch [x]	Contact Termination	Insulation Material	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Contact Material	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Current Rating (Amps)	Shrouding	Style	Insulation Color	Features	Voltage Rating	Contact Shape	Number of Rows [custom]	Termination	Number of Positions Loaded	Insulation Height	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Row Spacing - Mating	Row Spacing - Mating

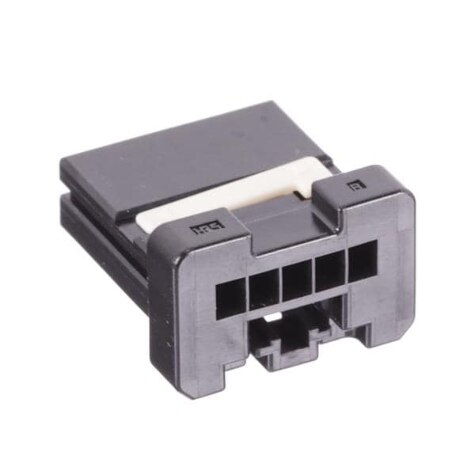

Hirose Electric Co Ltd ZE05-5S-HU/R	Plug	1	Black	Free Hanging (In-Line)	Latch Lock	5	0.079 in	2 mm	Crimp	Nylon Polyamide (PA)	Female Socket	125 °C	-40 C

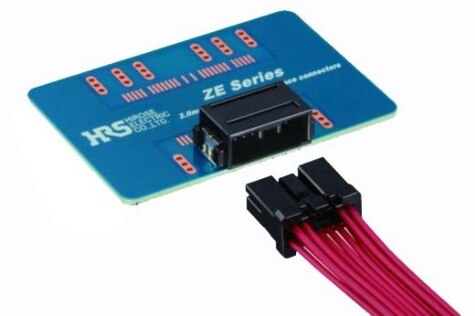

Hirose Electric Co Ltd ZE05-12DP-2H	Header			Right Angle Surface Mount		12				Nylon Polyamide (PA)	Male Pin	125 °C	-40 C	UL94 V-0	Brass	Tin	0.079 "	2 mm	8.84 mm	0.348 in	2A 5A	Shrouded - 4 Wall	Board to Cable/Wire	Black	Solder Retention	60 VAC	Square	2	Solder	All

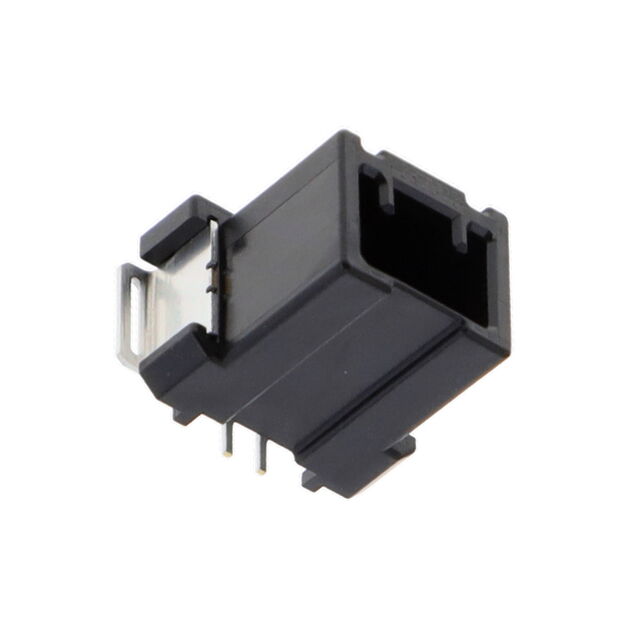

Hirose Electric Co Ltd ZE05H-2P-2V	Header	1		Surface Mount		2				Nylon Polyamide (PA)	Male Pin	125 °C	-40 C	UL94 V-0	Brass	Tin	0.079 "	2 mm		7 mm	2A 5A	Shrouded - 4 Wall	Board to Cable/Wire	Black	Solder Retention	60 VAC	Square		Solder	All	0.276 in

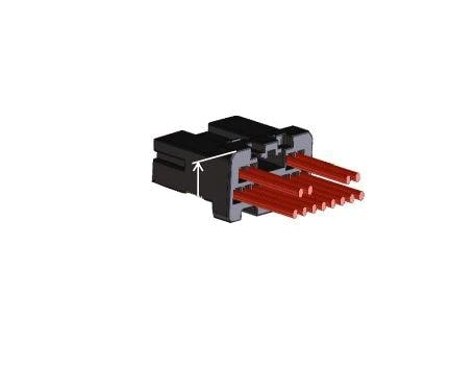

Hirose Electric Co Ltd ZE05-24DS-HU/R	Plug		Black	Free Hanging (In-Line)	Latch Lock	24	0.079 in	2 mm	Crimp		Female Socket	125 °C	-40 C															2

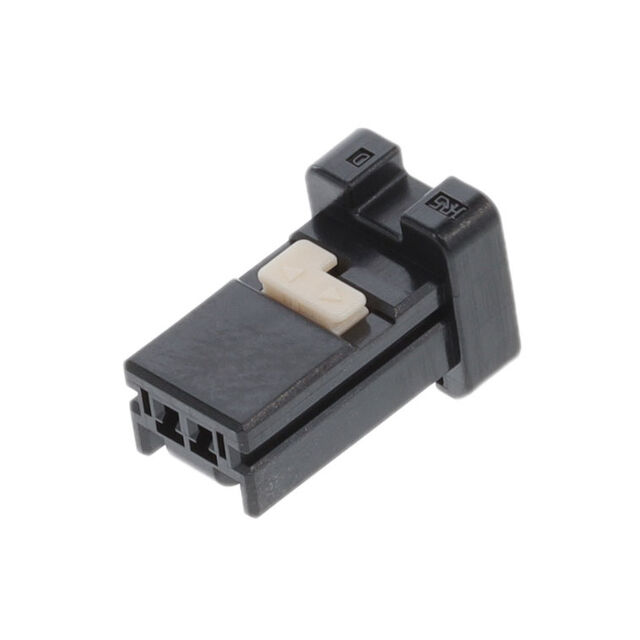

Hirose Electric Co Ltd ZE05-2S-HU/R	Plug		Black	Free Hanging (In-Line)	Latch Lock	2	0.079 in	2 mm	Crimp	Nylon Polyamide (PA)	Female Socket	125 °C	-40 C															2
Hirose Electric Co Ltd ZE05-16DS-HU/R	Plug		Black	Free Hanging (In-Line)	Latch Lock	16	0.079 in	2 mm	Crimp	Nylon Polyamide (PA)	Female Socket	125 °C	-40 C															2

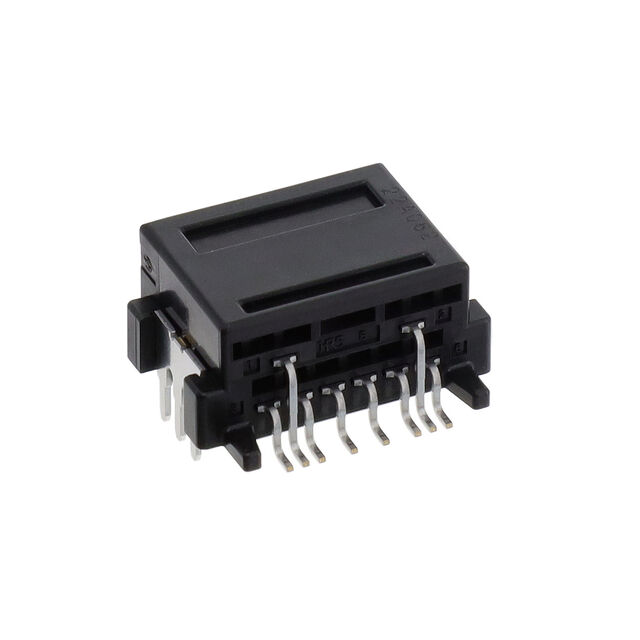

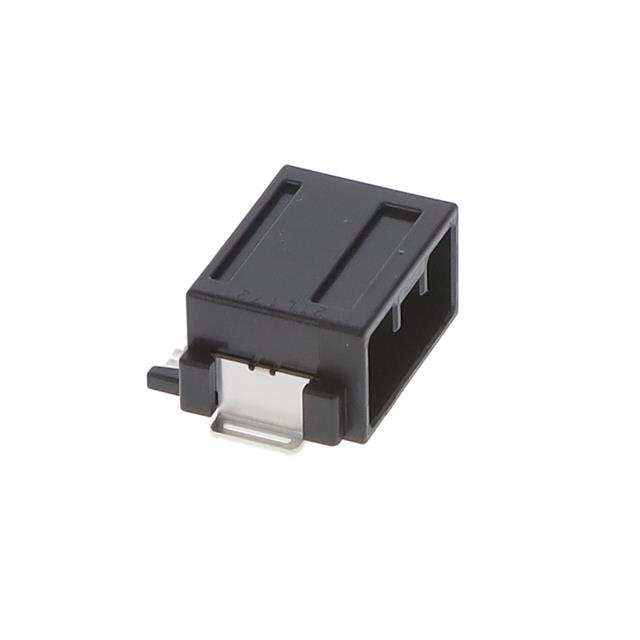

Hirose Electric Co Ltd ZE05H-8DP-2H	Header			Right Angle Surface Mount		8				Nylon Polyamide (PA)	Male Pin	125 °C	-40 C	UL94 V-0	Brass	Tin	0.079 "	2 mm	8.84 mm	0.348 in	2A 5A	Shrouded - 4 Wall	Board to Cable/Wire	Black	Solder Retention	60 VAC	Square	2	Solder	All		39.4 çin	1 çm	39.4 µin	1 µm
Hirose Electric Co Ltd ZE05-4S-HU/R	Plug	1	Black	Free Hanging (In-Line)	Locking Ramp	4	0.079 in	2 mm	Crimp	Nylon Polyamide (PA)	Female Socket	125 °C	-40 C

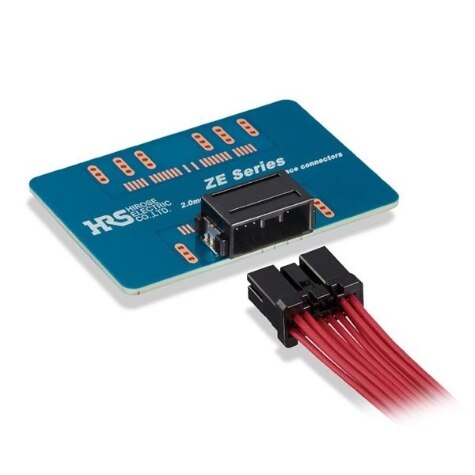

Hirose Electric Co Ltd ZE05-16DP-2H	Header			Right Angle Surface Mount		16				Nylon Polyamide (PA)	Male Pin	125 °C	-40 C	UL94 V-0	Brass	Tin	0.079 "	2 mm	8.84 mm	0.348 in	2A 5A	Shrouded - 4 Wall	Board to Cable/Wire	Black	Solder Retention	60 VAC	Square	2	Solder	All
Hirose Electric Co Ltd ZE05H-20DP-2H(A)	Receptacle			Right Angle Surface Mount	Push-Pull	20				Nylon Polyamide (PA)	Male Pin	125 °C	-40 C	UL94 V-0	Brass	Tin	0.079 "	2 mm	8.84 mm	0.348 in	2A 5A	Shrouded - 4 Wall	Board to Cable/Wire	Black	Solder Retention	60 VAC	Square	2	Solder	All				39.4 µin	1 µm	2 mm	0.079 in
