R172A5 Series
Manufacturer: NMB TECHNOLOGIES
Beta
⌘K

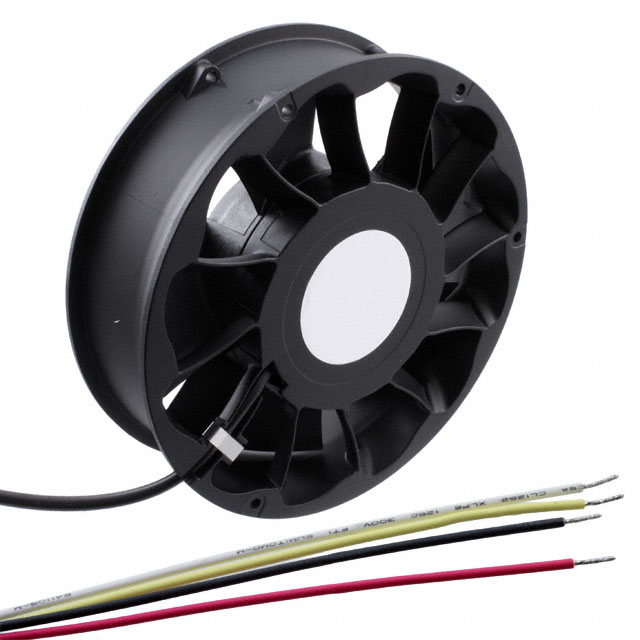

FAN AXIAL 172.7X50.8MM 48VDC
| Part | RPM | Air Flow | Air Flow | Weight | Weight | Size / Dimension [diameter] | Size / Dimension | Material - Blade | Width [y] | Current Rating (Amps) | Fan Type | Operating Temperature [Min] [custom] | Operating Temperature [Min] [custom] | Operating Temperature [Max] [custom] | Operating Temperature [Max] [custom] | Power (Watts) | Features | Noise | Bearing Type | Voltage - Rated [custom] | Voltage Range [Min] | Voltage Range [Max] | Lifetime @ Temp. | Static Pressure | Static Pressure | Termination | Material - Frame |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NMB TECHNOLOGIES | 6300 RPM | 11.45 mł/min | 409 CFM | 2.4 lbs | 1.1 kg | 172.7 mm | Round | Plastic | 2 " | 1.6 A | Tubeaxial | -30 °C | -22 °F | 70 °C | 158 °F | 76.8 W | PWM Control Speed Sensor (Tach) | 74 dB(A) | Ball | 48 VDC | 30 VDC | 72 VDC | 70000 Hrs | 3.02 in H2O | 752.3 Pa | 4 Wire Leads | Aluminum |
