HR41 Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN PLUG HSG FMALE 3POS INLINE
| Part | Primary Material | Orientation | Shielding | Note | Type | Contact Shape | Fastening Type | Shell Size - Insert | Material Flammability Rating | Features | Housing Color | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Ingress Protection | Insert Material | Connector Type | Insert Material [custom] | Insert Material [custom] | Number of Positions | Mounting Feature | Contact Termination | Contact Material | Termination Finish | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Wire Gauge or Range - AWG [Min] | Wire Gauge or Range - AWG [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

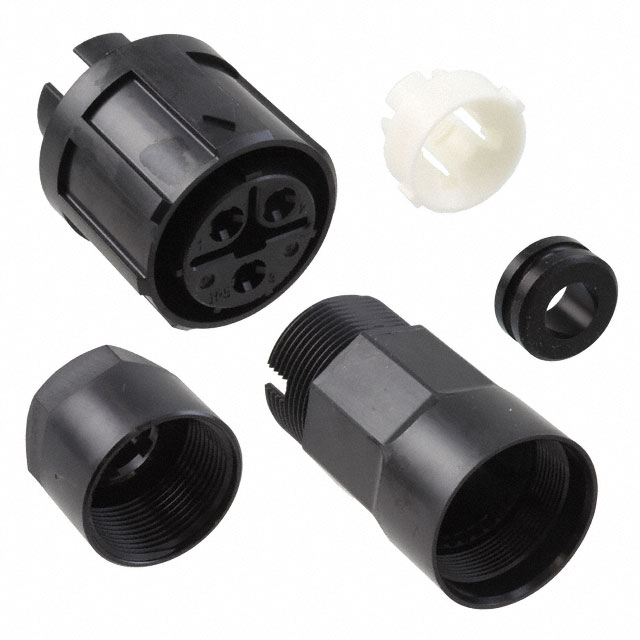

 Hirose Electric Co Ltd | Plastic | Keyed | Unshielded | Contacts Not Included | For Female Sockets | Circular | Bayonet Lock | 25 | UL94 V-0 | Backshell Coupling Nut Strain Relief | Black | Crimp | -40 C | 105 ░C | Free Hanging (In-Line) | IP67/IP68 | Polybutylene Terephthalate (PBT) | Plug Housing | ||||||||||||

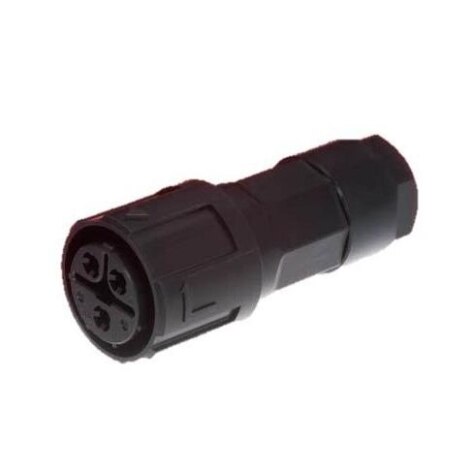

Hirose Electric Co Ltd | Keyed | Unshielded | Contacts Not Included | For Female Sockets | Circular | Bayonet Lock | 25 | UL94 V-0 | Backshell Coupling Nut Ground Strain Relief | Black | Crimp | -40 C | 105 ░C | Free Hanging (In-Line) | IP67/IP68 | Plug Housing | Nylon | Polyamide (PA) | ||||||||||||

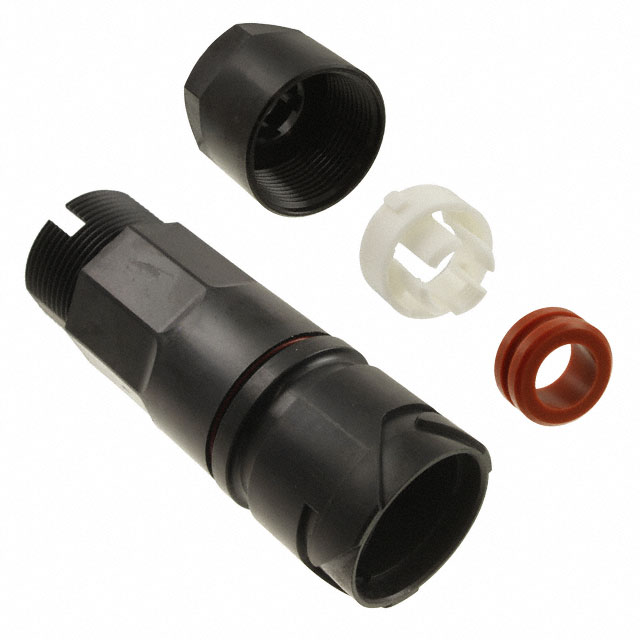

Hirose Electric Co Ltd | Plastic | Keyed | Unshielded | Contacts Not Included | For Male Pins | Circular | Bayonet Lock | 25 | UL94 V-0 | Backshell Ground Strain Relief | Black | Crimp | -40 C | 105 ░C | Free Hanging (In-Line) | IP67/IP68 | Polybutylene Terephthalate (PBT) | Jack Housing | 5 | |||||||||||
 Hirose Electric Co Ltd | Keyed | Unshielded | Contacts Not Included | For Male Pins | Circular | Bayonet Lock | 25 | UL94 V-0 | Ground | Black | Crimp | -40 C | 105 ░C | Panel Mount | IP67/IP68 | Receptacle Housing | Nylon | Polyamide (PA) | Flange | |||||||||||
 Hirose Electric Co Ltd | Keyed | Unshielded | Contacts Not Included | For Female Sockets | Circular | Bayonet Lock | 25 | UL94 V-0 | Backshell Coupling Nut Ground Strain Relief | Black | Crimp | -40 C | 105 ░C | Free Hanging (In-Line) | IP67/IP68 | Plug Housing | Nylon | Polyamide (PA) | ||||||||||||

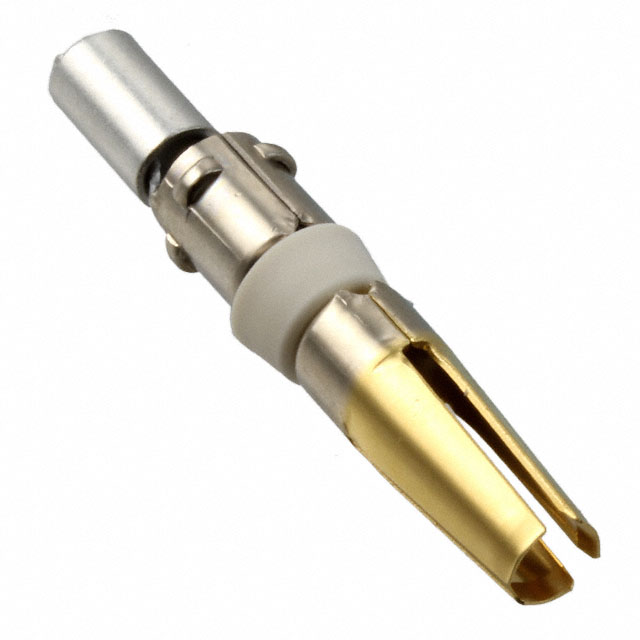

 Hirose Electric Co Ltd | Stamped | Socket | Crimp | Copper Alloy | Copper Alloy | Gold | 0.203 çm | 8 µin | 14 AWG | 16 AWG | ||||||||||||||||||||
 Hirose Electric Co Ltd | ||||||||||||||||||||||||||||||
 Hirose Electric Co Ltd | Keyed | Unshielded | Contacts Not Included | For Male Pins | Circular | Bayonet Lock | 25 | UL94 V-0 | Backshell Ground Strain Relief | Black | Crimp | -40 C | 105 ░C | Free Hanging (In-Line) | IP67/IP68 | Jack Housing | Nylon | Polyamide (PA) | ||||||||||||
 Hirose Electric Co Ltd | Stamped | Pin | Crimp | Copper Alloy | Copper Alloy | Gold | 0.203 çm | 8 µin | 14 AWG | 18 AWG | ||||||||||||||||||||

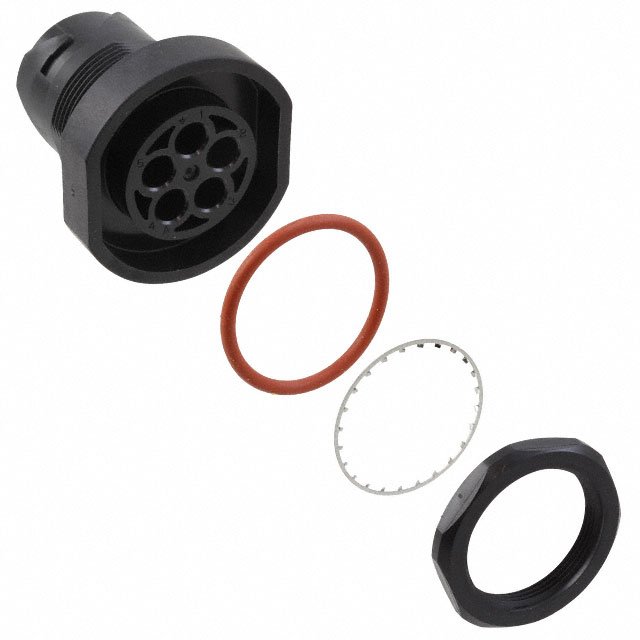

 Hirose Electric Co Ltd | Keyed | Unshielded | Contacts Not Included | For Male Pins | Circular | Bayonet Lock | 25 | UL94 V-0 | Black | Crimp | -40 C | 105 ░C | Panel Mount | IP67/IP68 | Receptacle Housing | Nylon | Polyamide (PA) | 5 | Bulkhead - Front Side Nut |
