BXRA-40 Series
Manufacturer: BRIDGELUX
Beta
⌘K

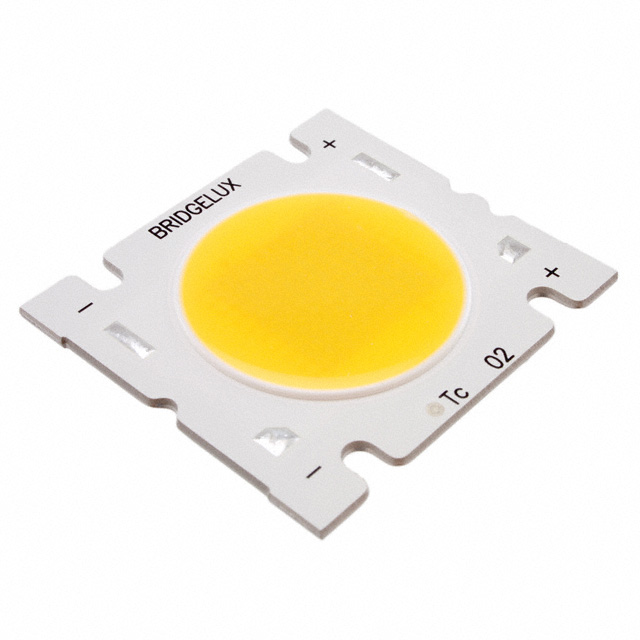

LED COB RS NEUT WHT SQUARE 4000K
| Part | Color | Luminous Flux @ Current/Temperature | CCT (K) | CCT (K) | Temperature - Test | Lens Type | Voltage - Forward (Vf) (Typ) | Viewing Angle | Type | Size / Dimension [x] | Size / Dimension [y] | Configuration | Lumens/Watt @ Current - Test | Current - Max [Max] | CRI (Color Rendering Index) | Current - Test | Height [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BRIDGELUX | Neutral White | 5700 lm | 4000 K | 3-Step MacAdam Ellipse | 25 °C | Domed | 23.5 V | 120 ° | Chip On Board (COB) | 45.6 mm | 2 in | Square | 116 lm/W | 2.8 A | 80 | 2.1 A | 3 mm |
BRIDGELUX | Neutral White | 3530 lm | 4000 K | 7-Step MacAdam Ellipse | 25 °C | Domed | 17.9 V | 120 ° | Chip On Board (COB) | 45.6 mm | 2 in | Square | 113 lm/W | 2.1 A | 80 | 1.75 A | 3 mm |
 BRIDGELUX | Neutral White | 680 lm | 4000 K | 3-Step MacAdam Ellipse | 25 °C | Domed | 18.2 V | 120 ° | Chip On Board (COB) | 19.9 mm | 19.9 mm | Starboard | 107 lm/W | 350 mA | 80 | 350 mA | 3 mm |
BRIDGELUX | Neutral White | 4000 K | 3-Step MacAdam Ellipse | 25 °C | Domed | 120 ° | Chip On Board (COB) | 45.6 mm | 2 in | Square | 109 lm/W | 3.5 A | 80 | 2.8 A | 3 mm | ||
BRIDGELUX | Neutral White | 1030 lm | 4000 K | 3-Step MacAdam Ellipse | 25 °C | Domed | 27.3 V | 120 ° | Chip On Board (COB) | 19.9 mm | 19.9 mm | Starboard | 108 lm/W | 350 mA | 80 | 350 mA | 3 mm |
 BRIDGELUX | Neutral White | 2750 lm | 4000 K | 25 °C | Domed | 37 V | 120 ° | Chip On Board (COB) | 22.8 mm | 25.8 mm | Rectangle | 106 lm/W | 750 mA | 80 | 3 mm | ||
BRIDGELUX | Neutral White | 3530 lm | 4000 K | 3-Step MacAdam Ellipse | 25 °C | Domed | 17.9 V | 120 ° | Chip On Board (COB) | 45.6 mm | 2 in | Square | 113 lm/W | 2.1 A | 80 | 1.75 A | 3 mm |
 BRIDGELUX | Neutral White | 4000 K | 7-Step MacAdam Ellipse | 25 °C | Domed | 120 ° | Chip On Board (COB) | 45.6 mm | 2 in | Square | 109 lm/W | 3.5 A | 80 | 2.8 A | 3 mm | ||
BRIDGELUX | Neutral White | 1690 lm | 4000 K | 3-Step MacAdam Ellipse | 25 °C | Domed | 120 ° | Chip On Board (COB) | 22.8 mm | 25.8 mm | Rectangle | 114 lm/W | 750 mA | 80 | 500 mA | 3 mm | |
BRIDGELUX | Neutral White | 2750 lm | 4000 K | 3-Step MacAdam Ellipse | 25 °C | Domed | 37 V | 120 ° | Chip On Board (COB) | 22.8 mm | 25.8 mm | Rectangle | 106 lm/W | 750 mA | 80 | 3 mm |
