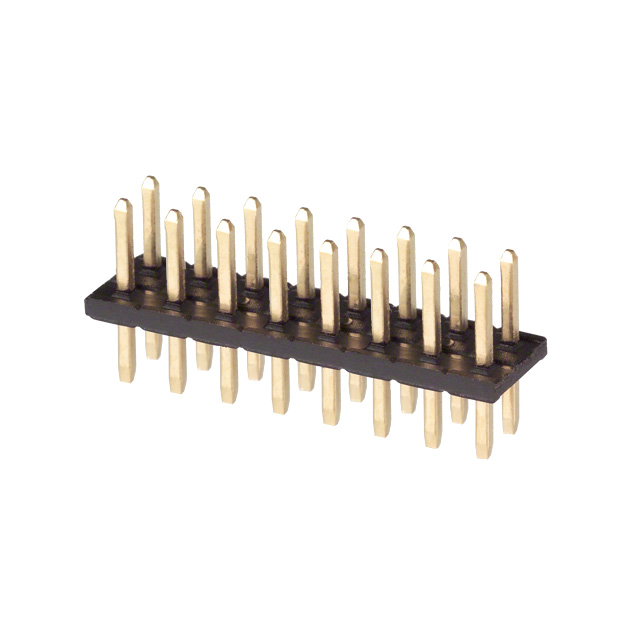

A3C-16P Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN HEADER
| Part | Number of Positions | Contact Shape | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Color | Style | Number of Positions Loaded | Number of Rows [custom] | Mounting Type | Shrouding | Contact Type | Contact Finish - Mating | Insulation Height [z] | Insulation Height [z] | Pitch - Mating | Pitch - Mating | Fastening Type | Row Spacing - Mating | Row Spacing - Mating | Termination | Contact Material | Contact Length - Mating | Contact Length - Mating | Contact Length - Post | Contact Length - Post | Overall Contact Length | Overall Contact Length | Material Flammability Rating | Insulation Material | Connector Type | Voltage Rating | Contact Finish Thickness - Post | Mated Stacking Heights | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | 16 | Square | -55 C | 85 °C | Black | Board to Board Cable | All | 2 | Through Hole | Unshrouded | Male Pin | Gold | 0.9 mm | 0.035 in | 0.079 " | 2 mm | Push-Pull | 2 mm | 0.079 in | Solder | Brass | 3.5 mm | 0.138 in | 2.6 mm | 0.102 in | 7 mm | 0.276 in | UL94 V-0 | Nylon Polyamide (PA) | Header | 200 VAC | |||||
 Hirose Electric Co Ltd | 16 | Square | -55 C | 85 °C | Black | Board to Board Cable | All | 2 | Through Hole | Unshrouded | Male Pin | Gold | 0.9 mm | 0.035 in | 0.079 " | 2 mm | Push-Pull | 2 mm | 0.079 in | Solder | Brass | 3.5 mm | 0.138 in | 2.6 mm | 0.102 in | 7 mm | 0.276 in | UL94 V-0 | Nylon Polyamide (PA) | Header | 200 V | Flash | 5.1 mm 7.9 mm | 8 µin | 0.203 µm | Gold |
