DF56C Series

Catalog

CONN GUIDE FOR DF56 SERIES

Part	For Use With/Related Products	Number of Positions	Accessory Type	Insulation Material	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Connector Type	Features	Number of Positions Loaded	Current Rating (Amps)	Insulation Height [custom]	Insulation Height [custom]	Pitch - Mating	Pitch - Mating	Insulation Color	Fastening Type	Number of Rows	Contact Finish - Post	Contact Type	Mounting Type	Contact Finish - Mating	Material Flammability Rating	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination
Hirose Electric Co Ltd DF56C-26S-GUIDE	DF56 Series	26	Guide

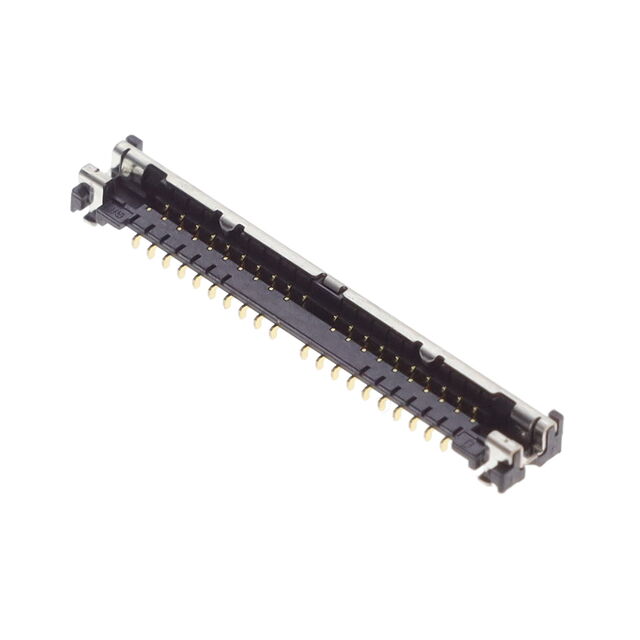

Hirose Electric Co Ltd DF56C-40S-0.3V(51)		40		Halogen Free Liquid Crystal Polymer (LCP)	Phosphor Bronze	2 µin	0.051 µm	85 °C	-35 °C	30 VAC	Receptacle	Grounding Tab	All	Varies by Wire Gauge	1.45 mm	0.057 in	0.012 in	0.3 mm	Black	Friction Lock	1	Gold	Non-Gendered	Surface Mount	Gold	UL94 V-0	Board to Cable/Wire	3.9 µin	0.099 µm	Solder

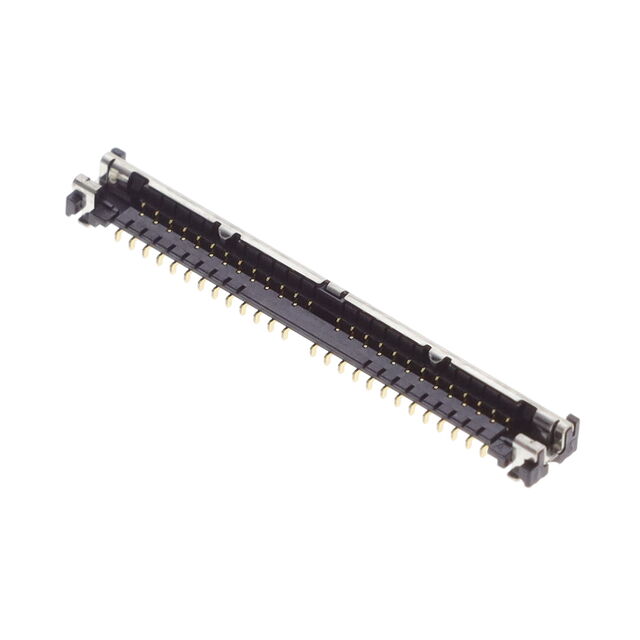

Hirose Electric Co Ltd DF56C-50S-0.3V(51)		50		Halogen Free Liquid Crystal Polymer (LCP)	Phosphor Bronze	2 µin	0.051 µm	85 °C	-35 °C	30 VAC	Receptacle	Grounding Tab	All	Varies by Wire Gauge	1.45 mm	0.057 in	0.012 in	0.3 mm	Black	Friction Lock	1	Gold	Non-Gendered	Surface Mount	Gold	UL94 V-0	Board to Cable/Wire	3.9 µin	0.099 µm	Solder

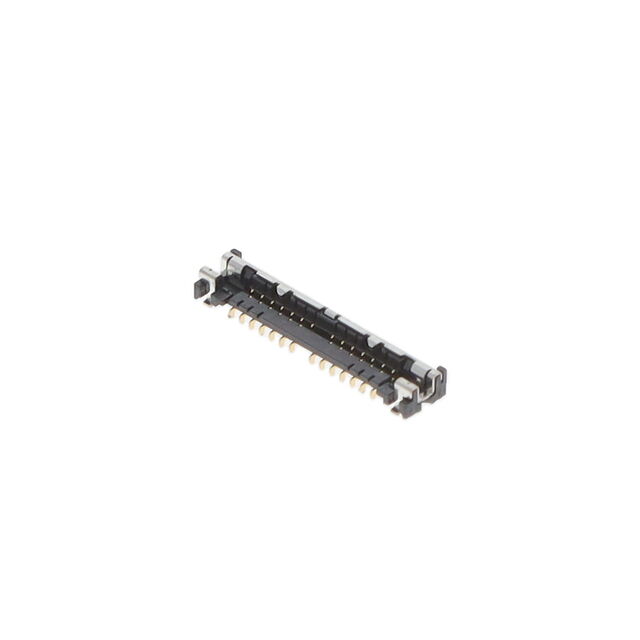

Hirose Electric Co Ltd DF56C-26S-0.3V(51)		26		Halogen Free Liquid Crystal Polymer (LCP)	Phosphor Bronze	2 µin	0.051 µm	85 °C	-35 °C	30 VAC	Receptacle	Grounding Tab	All	Varies by Wire Gauge	1.45 mm	0.057 in	0.012 in	0.3 mm	Black	Friction Lock	1	Gold	Non-Gendered	Surface Mount	Gold	UL94 V-0	Board to Cable/Wire	3.9 µin	0.099 µm	Solder
