A3C-24DA Series

Catalog

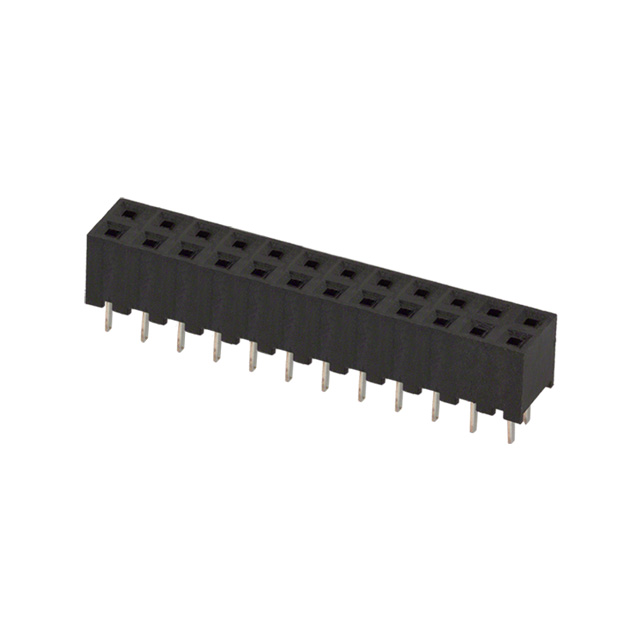

CONN RCPT 24POS 0.079 GOLD PCB

Part	Applications	Insulation Material	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Connector Type	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Mounting Type	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Contact Type	Contact Finish - Post	Insulation Height	Insulation Height	Number of Rows [custom]	Row Spacing - Mating	Row Spacing - Mating	Number of Positions	Mated Stacking Heights	Style	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Termination	Number of Positions Loaded	Fastening Type	Contact Length - Post
Hirose Electric Co Ltd A3C-24DA-2DSC	General Purpose Telecommunications	Polybutylene Terephthalate (PBT)	Square	39.4 çin	1 çm	Phosphor Bronze	Receptacle	2 mm	0.079 in	UL94 V-0	Through Hole	Black	8 µin	0.203 µm	Gold	Female Socket	Tin	0.165 in	4.2 mm	2	2 mm	0.079 in	24	5.1 mm 6 mm	Board to Board Cable	200 VAC	-55 C	85 °C	0.079 "	2 mm	Solder	All	Push-Pull
Hirose Electric Co Ltd A3C-24DA-2DSE	General Purpose Telecommunications	Polybutylene Terephthalate (PBT)	Square	39.4 çin	1 çm	Phosphor Bronze	Receptacle		1.27 mm	UL94 V-0	Through Hole	Black	8 µin	0.203 µm	Gold	Female Socket	Tin	0.165 in	4.2 mm	2	2 mm	0.079 in	24	5.1 mm 6 mm	Board to Board Cable	200 VAC	-55 C	85 °C	0.079 "	2 mm	Solder	All	Push-Pull	0.05 "
Hirose Electric Co Ltd A3C-24DA-2DSA	General Purpose Telecommunications	Polybutylene Terephthalate (PBT)	Square	39.4 çin	1 çm	Phosphor Bronze	Receptacle		3 mm	UL94 V-0	Through Hole	Black	8 µin	0.203 µm	Gold	Female Socket	Tin	0.165 in	4.2 mm	2	2 mm	0.079 in	24	5.1 mm 6 mm	Board to Board Cable	200 VAC	-55 C	85 °C	0.079 "	2 mm	Solder	All	Push-Pull	0.118 in
Hirose Electric Co Ltd A3C-24DA-2DSC(71)	General Purpose Telecommunications	Polybutylene Terephthalate (PBT)	Square	39.4 çin	1 çm	Phosphor Bronze	Receptacle	2 mm	0.079 in	UL94 V-0	Through Hole	Black	8 µin	0.203 µm	Gold	Female Socket	Tin	0.165 in	4.2 mm	2	2 mm	0.079 in	24	5.1 mm 6 mm	Board to Board Cable	200 VAC	-55 C	85 °C	0.079 "	2 mm	Solder	All	Push-Pull
