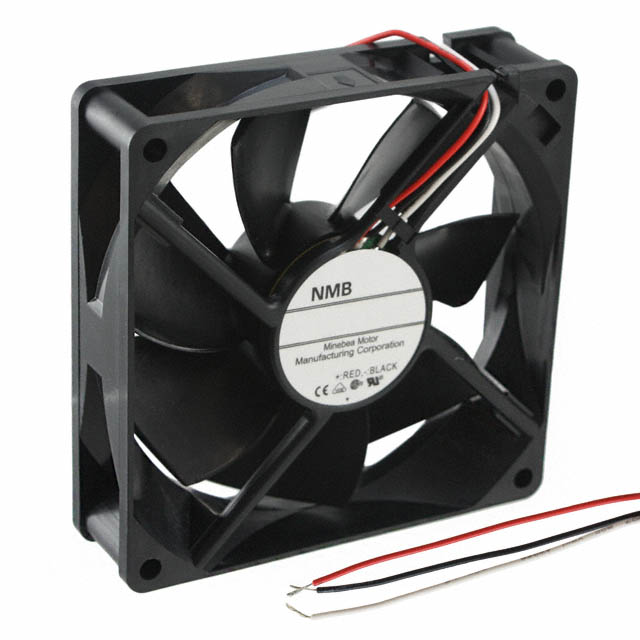

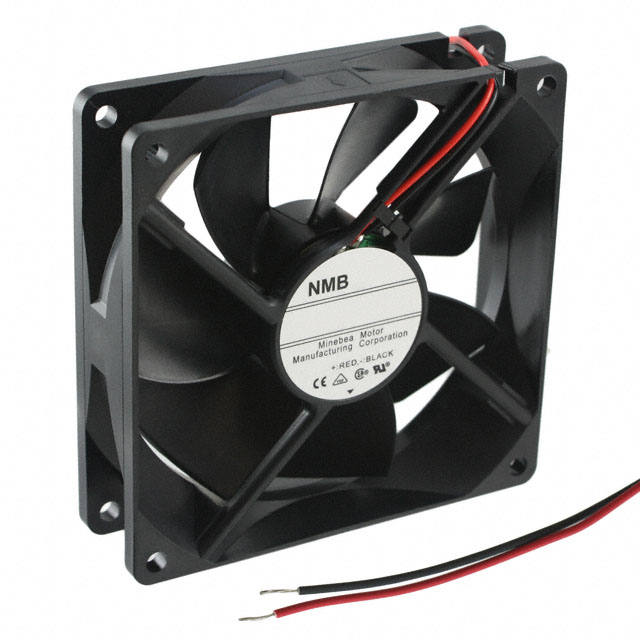

3610KL Series

Catalog

FAN AXIAL 92X25MM 24VDC WIRE

Part	Air Flow	Air Flow	Material - Blade	Material - Frame	Lifetime @ Temp.	Current Rating (Amps)	Voltage Range [Min]	Voltage Range [Max]	Weight	Weight	RPM	Noise	Power (Watts)	Bearing Type	Voltage - Rated	Width [y]	Static Pressure	Static Pressure	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]	Fan Type	Approval Agency	Static Pressure	Features
NMB TECHNOLOGIES 3610KL-05W-B40-D00	47.6 CFM	1.33 mł/min	Plastic	Plastic	70000 Hrs	120 mA	10 VDC	27.6 VDC	0.209 lb	94.8 g	2850 RPM	37.5 dB(A)	2.88 W	Ball	24 VDC	25 mm	37.1 Pa	0.149 in H2O	2 Wire Leads	70 °C	-10 °C	92 mm	92 mm	Tubeaxial	CE CSA UL VDE
NMB TECHNOLOGIES 3610KL-05W-B40-E00	47.6 CFM	1.33 mł/min	Plastic	Plastic	100000 Hrs	120 mA	10 VDC	27.6 VDC	0.209 lb	94.8 g	2850 RPM	37.5 dB(A)	2.88 W	Ball	24 VDC	25 mm	0.15 in H2O		2 Wire Leads	70 °C	-10 °C	92 mm	92 mm	Tubeaxial	CE CSA UL VDE	37.4 Pa
NMB TECHNOLOGIES 3610KL-04W-B59-D50	54.7 CFM	1.53 mł/min	Plastic	Plastic	70000 Hrs	0.315 A	6 VDC	13 V	0.209 lb	94.8 g	3200 RPM	41 dB	3.75 W	Ball	12 VDC	25 mm	48 Pa	0.192 in H2O	3 Wire Leads	70 °C	-10 °C	92 mm	92 mm	Tubeaxial	CE CSA UL VDE		Speed Sensor (Tach)
NMB TECHNOLOGIES 3610KL-05W-B40-G00	47.6 CFM	1.33 mł/min	Plastic	Plastic	70000 Hrs	120 mA	10 VDC	27.6 VDC	0.209 lb	94.8 g	2850 RPM	37.5 dB(A)	2.88 W	Ball	24 VDC	25 mm	37.1 Pa	0.149 in H2O	2 Wire Leads	70 °C	-10 °C	92 mm	92 mm	Tubeaxial	CE CSA UL VDE
NMB TECHNOLOGIES 3610KL-05W-B50-D00	54.7 CFM	1.53 mł/min	Plastic	Plastic	70000 Hrs		10 VDC	25 VDC	0.209 lb	94.8 g	3200 RPM	41 dB	3.84 W	Ball	24 VDC	25 mm	48 Pa	0.192 in H2O	2 Wire Leads	70 °C	-10 °C	92 mm	92 mm	Tubeaxial	CE CSA UL VDE
NMB TECHNOLOGIES 3610KL-04W-B20-G00	33.5 CFM	0.938 mł/min	Plastic	Plastic	70000 Hrs	110 mA	6 VDC	13.8 VDC	0.209 lb	94.8 g	2100 RPM	29.5 dB(A)	1.32 W	Ball	12 VDC	25 mm	20.1 Pa	0.081 in H2O	2 Wire Leads	70 °C	-10 °C	92 mm	92 mm	Tubeaxial	CE CSA UL VDE
NMB TECHNOLOGIES 3610KL-05W-B30-E00	40.6 CFM	1.14 m³/min	Plastic	Plastic	100000 Hrs	0.09 A	10 VDC	27.6 VDC	0.209 lb	94.8 g	2450 RPM	34 dB(A)	2.16 W	Ball	24 VDC	25 mm	27 Pa	0.108 in H2O	2 Wire Leads	70 °C	-10 °C	92 mm	92 mm	Tubeaxial	CE CSA UL VDE
NMB TECHNOLOGIES 3610KL-05W-B49-G00	47.6 CFM	1.33 mł/min	Plastic	Plastic	70000 Hrs	120 mA	10 VDC	27.6 VDC	0.209 lb	94.8 g	2850 RPM	37.5 dB(A)	2.88 W	Ball	24 VDC	25 mm	37.1 Pa	0.149 in H2O	3 Wire Leads	70 °C	-10 °C	92 mm	92 mm	Tubeaxial	CE CSA UL VDE		Locked Rotor Sensor
NMB TECHNOLOGIES 3610KL-04W-B39-G00	40.6 CFM	1.14 m³/min	Plastic	Plastic	70000 Hrs		6 VDC	13.8 VDC	0.209 lb	94.8 g	2450 RPM	34 dB(A)	1.92 W	Ball	12 VDC	25 mm	27 Pa	0.108 in H2O	3 Wire Leads	70 °C	-10 °C	92 mm	92 mm	Tubeaxial	CE CSA UL VDE		Locked Rotor Sensor

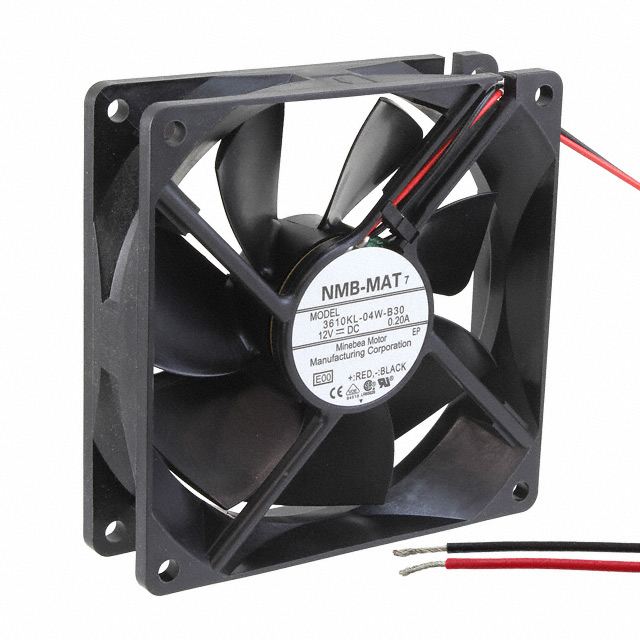

NMB TECHNOLOGIES 3610KL-04W-B30-E00	40.6 CFM	1.14 m³/min	Plastic	Plastic	100000 Hrs		6 VDC	13.8 VDC	0.209 lb	94.8 g	2450 RPM	34 dB(A)	1.92 W	Ball	12 VDC	25 mm	27 Pa	0.108 in H2O	2 Wire Leads	70 °C	-10 °C	92 mm	92 mm	Tubeaxial	CE CSA UL VDE
