E2002S Series

Catalog

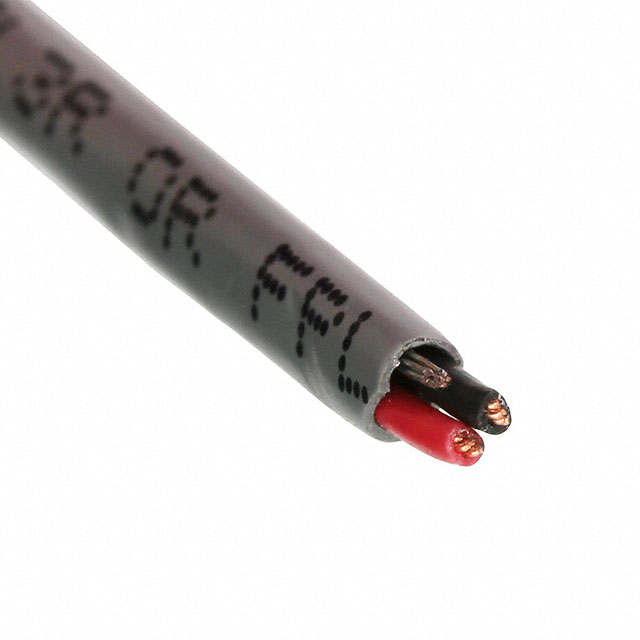

CABLE 2COND 22AWG GRAY SHLD

Part	Conductor Insulation	Number of Conductors	Voltage	Conductor Material	Cable Type	Features	Jacket Color	Jacket (Insulation) Thickness [x]	Jacket (Insulation) Thickness [x]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Length	Length	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [custom]	Shield Type	Usage	Shield Coverage	Length [x]	Length [x]	Shield Material
Prysmian Group E2002S.18.10	Poly-Vinyl Chloride (PVC)	2	300 VDC	Copper Bare	Multi-Conductor	Drain Wire Rip Cord	Gray	0.381 mm	0.015 in	3.18 mm	0.125 "	22 AWG	152.4 m	500 ft	Poly-Vinyl Chloride (PVC)	30 AWG	7	Foil	Alarm Security Sound
Prysmian Group E2002S.41.10	Poly-Vinyl Chloride (PVC)	2	300 VDC	Copper Bare	Multi-Conductor	Drain Wire Rip Cord	Gray	0.381 mm	0.015 in	3.18 mm	0.125 "	22 AWG	15.24 m 152.4 m 304.8 m	50 ft 500 ft 1000 ft	Poly-Vinyl Chloride (PVC)	30 AWG	7	Foil	Alarm Security Sound	100 %	100 ft	30.5 m	Flexfoil®
Prysmian Group E2002S.30.10	Poly-Vinyl Chloride (PVC)	2	300 VDC	Copper Bare	Multi-Conductor	Drain Wire Rip Cord	Gray	0.381 mm	0.015 in	3.18 mm	0.125 "	22 AWG	304.8 m	1000 ft	Poly-Vinyl Chloride (PVC)	30 AWG	7	Foil	Alarm Security Sound	100 %	100 ft	30.5 m	Flexfoil®
Prysmian Group E2002S.18.10	Poly-Vinyl Chloride (PVC)	2	300 VDC	Copper Bare	Multi-Conductor	Drain Wire Rip Cord	Gray	0.381 mm	0.015 in	3.18 mm	0.125 "	22 AWG	152.4 m	500 ft	Poly-Vinyl Chloride (PVC)	30 AWG	7	Foil	Alarm Security Sound	100 %			Flexfoil®
Prysmian Group E2002S.41.10	Poly-Vinyl Chloride (PVC)	2	300 VDC	Copper Bare	Multi-Conductor	Drain Wire Rip Cord	Gray	0.381 mm	0.015 in	3.18 mm	0.125 "	22 AWG	15.24 m 152.4 m 304.8 m	50 ft 500 ft 1000 ft	Poly-Vinyl Chloride (PVC)	30 AWG	7	Foil	Alarm Security Sound		100 ft	30.5 m
Prysmian Group E2002S.30.10	Poly-Vinyl Chloride (PVC)	2	300 VDC	Copper Bare	Multi-Conductor	Drain Wire Rip Cord	Gray	0.381 mm	0.015 in	3.18 mm	0.125 "	22 AWG	304.8 m	1000 ft	Poly-Vinyl Chloride (PVC)	30 AWG	7	Foil	Alarm Security Sound
