MSCDC100KK120D1PAG-Module Series

1200V, 100A, D1P Dual Common Cathode mSiC™ Diode Module

Catalog

1200V, 100A, D1P Dual Common Cathode mSiC™ Diode Module

Part	Current - Average Rectified (Io)	Mounting Type	Technology	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Voltage - Peak Reverse (Max) [Max]	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Package / Case	Diode Type	Diode Configuration	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Average Rectified (Io) (per Diode)	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Speed	Reverse Recovery Time (trr)

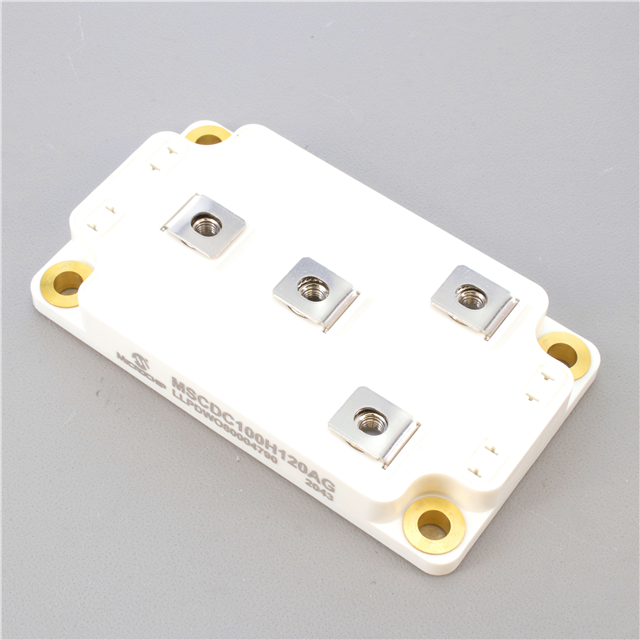

Microchip Technology MSCDC100H120AG	100 A	Chassis Mount	Silicon Carbide Schottky	-40 C	175 °C	SP6	1.2 kV	1.8 V	400 µA	Module	Single Phase

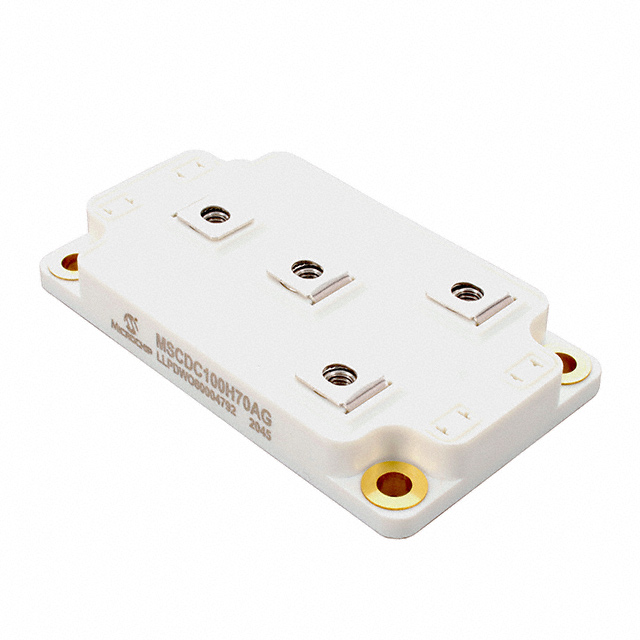

Microchip Technology MSCDC100H70AG	100 A	Chassis Mount	Silicon Carbide Schottky	-40 C	175 °C	SP6	700 V	1.8 V	400 µA	Module	Single Phase
Microchip Technology MSCDC100KK70D1PAG		Chassis Mount	SiC (Silicon Carbide) Schottky			D1P		1.8 V	400 µA	Module		1 Pair Common Cathode	700 V	100 A	-40 °C	175 ░C	No Recovery Time	0 ns
Microchip Technology MSCDC100KK120D1PAG		Chassis Mount	SiC (Silicon Carbide) Schottky			D1P		1.8 V	400 µA	Module		1 Pair Common Cathode	1.2 kV	100 A	-40 °C	175 ░C	No Recovery Time	0 ns
Microchip Technology MSCDC100KK170D1PAG		Chassis Mount	SiC (Silicon Carbide) Schottky			D1P		1.8 V	400 µA	Module		1 Pair Common Cathode	1700 V	100 A	-40 °C	175 ░C	No Recovery Time	0 ns

Catalog

1200V, 100A, D1P Dual Common Cathode mSiC™ Diode Module

Key Features

- Configuration: Dual Common Cathode

- VRRM (V): 1200

- VF (V): 1.5

- Current (A) Tc=80C: 100

- Silicon type: SiC Diode

- Package: D1P

Description

* SiC Schottky Diode * Zero reverse recovery * Zero forward recovery * Temperature Independent switching behavior * Positive temperature coefficient on VF * Low stray inductance * High efficiency converter * Outstanding performance at high frequency operation * Stable temperature behavior * Direct mounting to heatsink (isolated package) * Low junction to case thermal resistance * RoHS Compliant
