UM-QLP-1 Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K

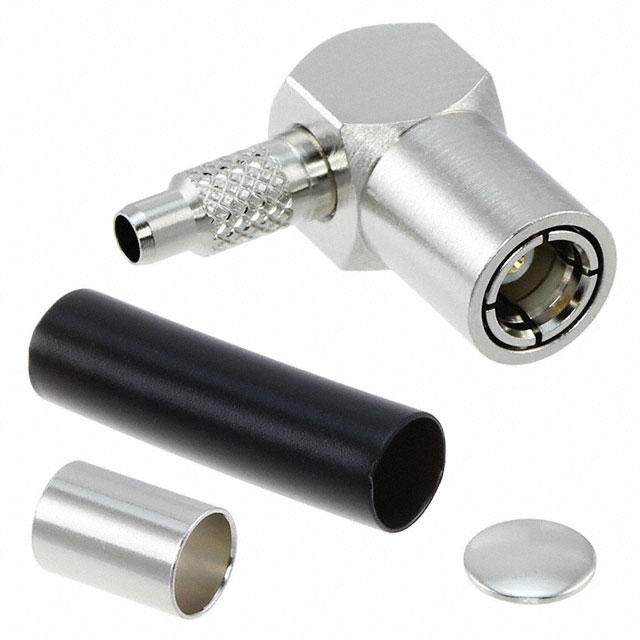

CONN L SHAPED PLUG
| Part | Body Finish | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Body Material | Mating Cycles | Center Contact Plating | Connector Type | Center Contact Material | Mounting Type | Frequency - Max [Max] | Contact Termination | Connector Style | Housing Color | Shield Termination | Fastening Type | Cable Group | Number of Ports | Impedance | Includes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | Nickel | 85 °C | -30 ░C | Polytetrafluoroethylene (PTFE) | Brass | 500 | Gold | Female Socket Plug | Beryllium Copper | Free Hanging (In-Line) Right Angle | 3 GHz | Solder | U.FL (UMCC) | Silver | Crimp | Snap-On | 1.5D-2V | 1 | 50 Ohms | |
Hirose Electric Co Ltd | Gold | 85 °C | -30 ░C | Polytetrafluoroethylene (PTFE) | Brass | 500 | Gold | Female Socket Plug | Beryllium Copper | Free Hanging (In-Line) Right Angle | 3 GHz | Solder | U.FL (UMCC) | Gold | Clamp | Snap-On | RG-196 | 1 | 50 Ohms | |
 Hirose Electric Co Ltd | Nickel | 85 °C | -30 ░C | Polytetrafluoroethylene (PTFE) | Brass | 500 | Gold | Female Socket Plug | Beryllium Copper | Free Hanging (In-Line) Right Angle | 2 GHz | Solder | U.FL (UMCC) | Silver | Crimp | Snap-On | 1.5D-2W 1.5D-HQEW 1.5QEW | 1 | 50 Ohms | 1 Connector 1 Heat Shrink |
 Hirose Electric Co Ltd | Nickel | 85 °C | -30 ░C | Polytetrafluoroethylene (PTFE) | Brass | 500 | Gold | Female Socket Plug | Beryllium Copper | Free Hanging (In-Line) Right Angle | 2 GHz | Solder | U.FL (UMCC) | Silver | Crimp | Snap-On | 1.5D-2V 1.5D-HQEV 1.5D-QEV | 1 | 50 Ohms | 1 Connector 1 Heat Shrink |
Hirose Electric Co Ltd | ||||||||||||||||||||
Hirose Electric Co Ltd | ||||||||||||||||||||
 Hirose Electric Co Ltd | Nickel | 85 °C | -30 ░C | Polytetrafluoroethylene (PTFE) | Brass | 500 | Gold | Female Socket Plug | Beryllium Copper | Free Hanging (In-Line) Right Angle | 2 GHz | Solder | U.FL (UMCC) | Silver | Crimp | Snap-On | 1.5D-2W 1.5D-HQEW 1.5QEW | 1 | 50 Ohms | 1 Connector 1 Heat Shrink |
Hirose Electric Co Ltd | ||||||||||||||||||||
Hirose Electric Co Ltd | Nickel | 85 °C | -30 ░C | Polytetrafluoroethylene (PTFE) | Brass | 500 | Gold | Female Socket Plug | Beryllium Copper | Free Hanging (In-Line) Right Angle | 3 GHz | Solder | U.FL (UMCC) | Silver | Crimp | Snap-On | 1.5D-2W | 1 | 50 Ohms |
