HIF3BB Series

Catalog

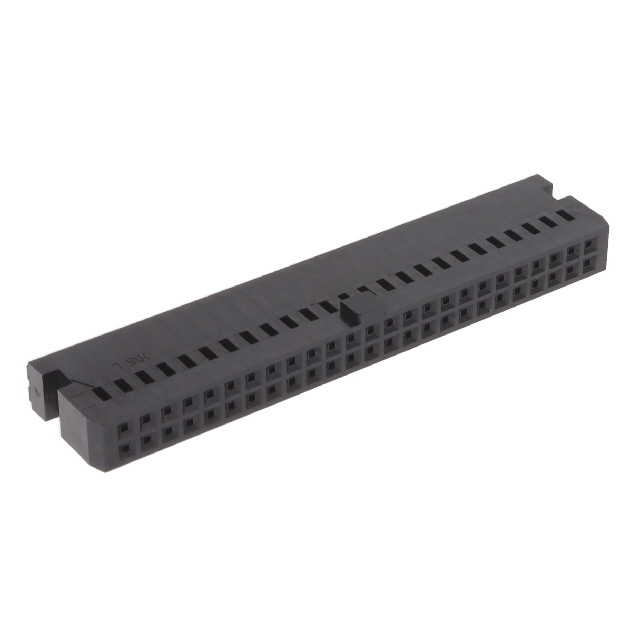

CONN SOCKET HSG 64POS 2.54MM

Part	Note	Pitch	Pitch	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing	Row Spacing	Contact Termination	Insulation Material	Contact Type	Color	Mounting Type	Features	Number of Rows [custom]	Connector Type	Wire Gauge	Cable Termination	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Wire Type	Fastening Type	Insulation Color	Termination	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Material Flammability Rating	Contact Material	Shrouding	Insulation Height [z]	Insulation Height [z]	Current Rating (Amps)	Style	Voltage Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Shape	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Contact Finish - Mating	Contact Finish - Post	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post	Overall Contact Length	Overall Contact Length	Contact Length - Mating	Contact Length - Mating

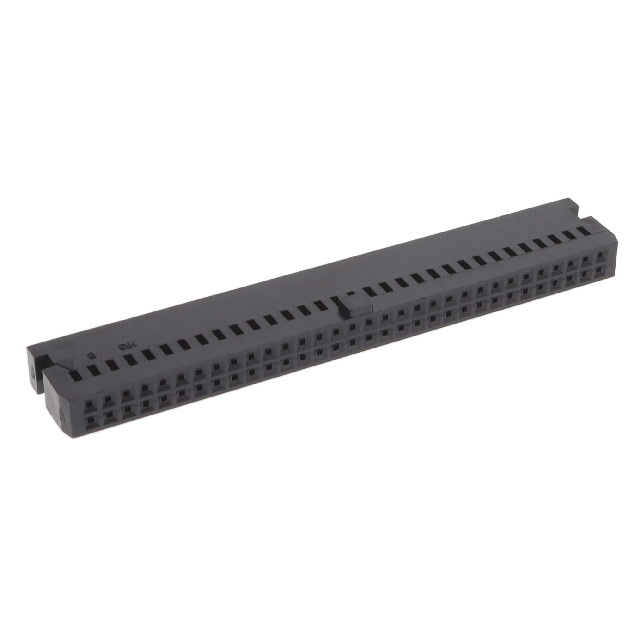

Hirose Electric Co Ltd HIF3BB-64D-2.54C(63)	Contacts Not Included	0.1 "	2.54 mm	64	-55 C	85 °C	2.54 mm	0.1 "	Crimp	Polybutylene Terephthalate (PBT)	Female Socket	Black	Free Hanging (In-Line)	Polarizing Key	2	Socket

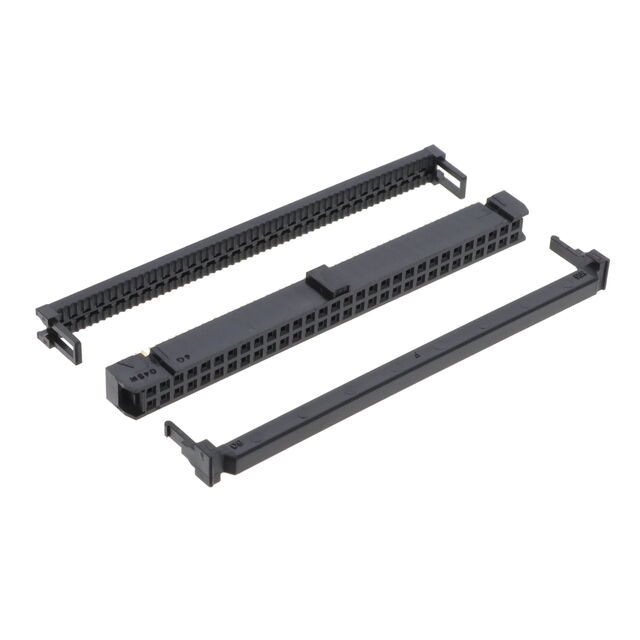

Hirose Electric Co Ltd HIF3BB-60D-2.54R(63)		0.1 "	2.54 mm	60			2.54 mm	0.1 "			Female Socket	Black	Free Hanging (In-Line)	Feed Through Polarizing Key Strain Relief	2	Socket	28 AWG	IDC	Gold	0.2 µm	7.87 Áin	Ribbon Cable
Hirose Electric Co Ltd HIF3BB-60PD-2.54R-MC		0.1 "	2.54 mm	60			2.54 mm	0.1 "			Male Pin	Black	Free Hanging (In-Line)	Feed Through Polarizing Key Strain Relief	2	Header	28 AWG	IDC	Gold			Ribbon Cable	Latch Lock/Eject Hooks

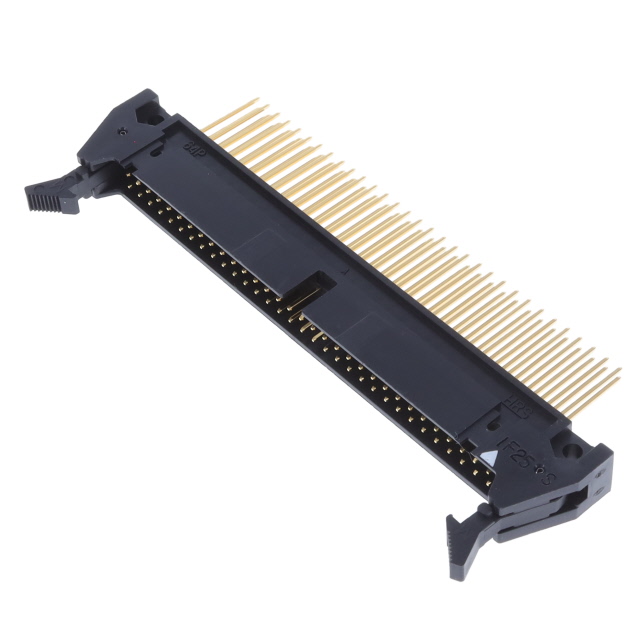

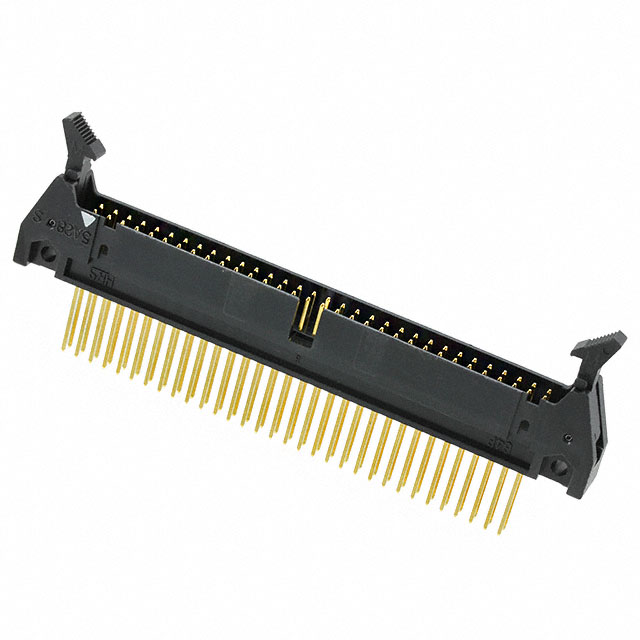

Hirose Electric Co Ltd HIF3BB-64P-2.54W(63)				64	-55 C	85 °C				Polybutylene Terephthalate (PBT)	Male Pin		Through Hole	Keying Slot	2	Header							Latch Lock/Eject Hooks	Black	Wire Wrap	0.1 "	2.54 mm	All	UL94 V-0	Brass	Shrouded - 4 Wall	0.701 in	17.8 mm	Varies by Wire Gauge	Board to Cable/Wire	200 V	0.1 in	2.54 mm	Square
Hirose Electric Co Ltd HIF3BB-60PA-2.54DS(63)				60	-55 C	85 °C				Polybutylene Terephthalate (PBT)	Male Pin		Right Angle Through Hole		2	Header							Latch Lock/Eject Hooks	Black	Solder	0.1 "	2.54 mm	All	UL94 V-0	Brass	Shrouded - 4 Wall			Varies by Wire Gauge	Board to Cable/Wire	200 V	0.1 in	2.54 mm	Square	78.7 µin	2 µm	Gold	Tin	0.335 "	8.51 mm	8 µin	0.203 µm	0.118 in	3 mm

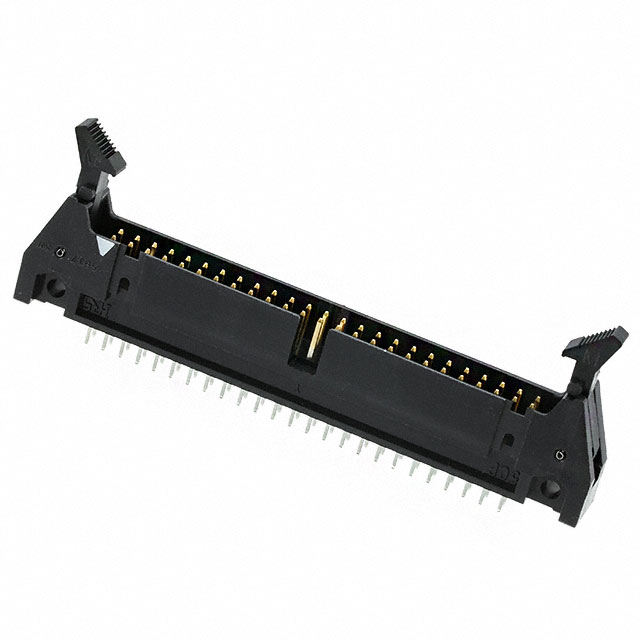

Hirose Electric Co Ltd HIF3BB-50PA-2.54DSA(71)				50	-55 C	85 °C				Polybutylene Terephthalate (PBT)	Male Pin		Through Hole	Keying Slot	2	Header							Latch Lock/Eject Hooks	Black	Solder	0.1 "	2.54 mm	All	UL94 V-0	Brass	Shrouded - 4 Wall	0.701 in	17.8 mm		Board to Cable/Wire	200 V	0.1 in	2.54 mm	Square	78.7 µin	2 µm	Gold	Tin			8 µin	0.203 µm	0.13 "	3.3 mm	16.7 mm	0.657 in	6 mm	0.236 in
Hirose Electric Co Ltd HIF3BB-64PA-2.54WB(71)				64	-55 C	85 °C				Polybutylene Terephthalate (PBT)	Male Pin		Right Angle Through Hole		2	Header							Latch Lock/Eject Hooks	Black	Solder	0.1 "	2.54 mm	All	UL94 V-0	Brass	Shrouded - 4 Wall				Board to Cable/Wire	200 V	0.1 in	2.54 mm	Square	78.7 µin	2 µm	Gold	Tin	0.335 "	8.51 mm	8 µin	0.203 µm	0.118 in	3 mm			6 mm	0.236 in
Hirose Electric Co Ltd HIF3BB-60PA-2.54DSA(71)				60	-55 C	85 °C				Polybutylene Terephthalate (PBT)	Male Pin		Through Hole	Keying Slot	2	Header							Latch Lock/Eject Hooks	Black	Solder	0.1 "	2.54 mm	All	UL94 V-0	Brass	Shrouded - 4 Wall	0.701 in	17.8 mm		Board to Cable/Wire	200 V	0.1 in	2.54 mm	Square	78.7 µin	2 µm	Gold	Tin			8 µin	0.203 µm	0.13 "	3.3 mm	16.7 mm	0.657 in	6 mm	0.236 in

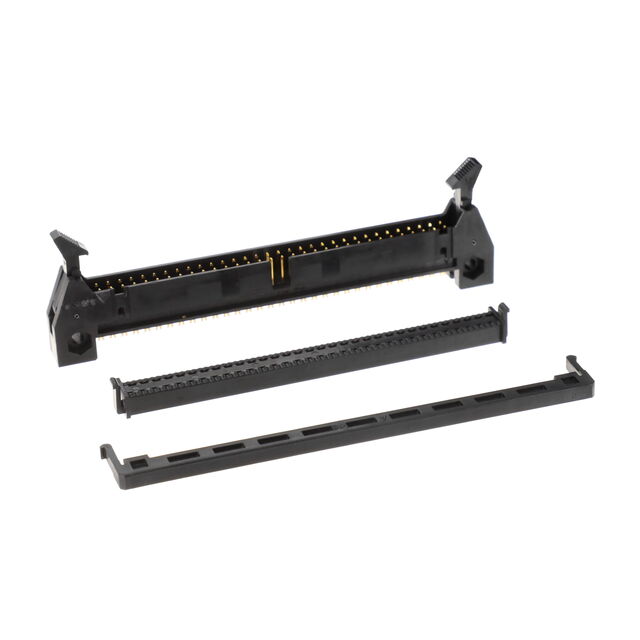

Hirose Electric Co Ltd HIF3BB-64PD-2.54R-MC(63)		0.1 "	2.54 mm	64			2.54 mm	0.1 "			Male Pin	Black	Free Hanging (In-Line)	Feed Through Polarizing Key Strain Relief	2	Plug	28 AWG	IDC	Gold	0.2 µm	7.87 Áin	Ribbon Cable	Latch Lock/Eject Hooks

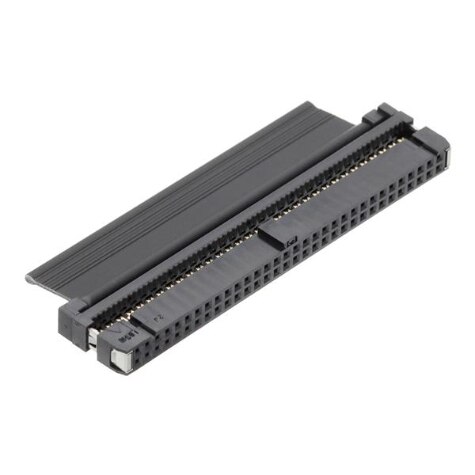

Hirose Electric Co Ltd HIF3BB-64D-2.54R-CL(63)		0.1 "	2.54 mm	64			2.54 mm	0.1 "			Female Socket	Black	Free Hanging (In-Line)	Feed Through Polarizing Key Strain Relief	2	Socket	28 AWG	IDC	Gold	0.2 µm	7.87 Áin	Ribbon Cable
