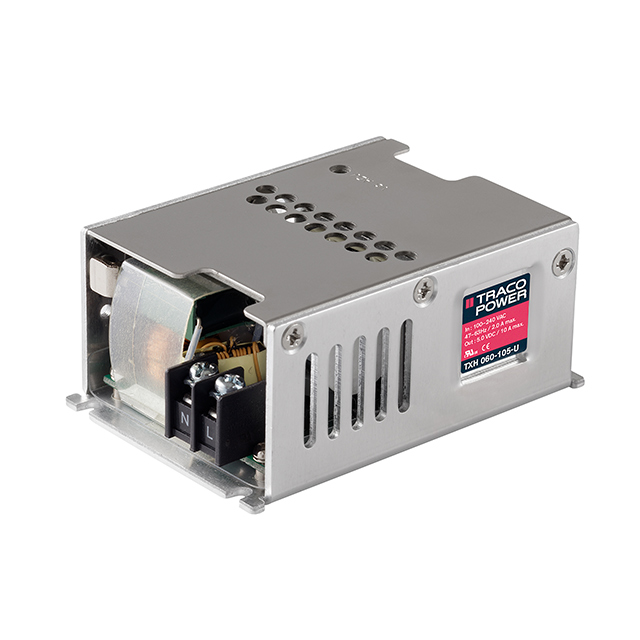

TXH 060 Series
Manufacturer: Traco Power
Beta
⌘K
AC/DC CONVERTER 5V 50W
| Part | Minimum Load Required | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Power (Watts) | Voltage - Output 1 | Number of Outputs | Voltage - Input [Min] | Voltage - Input [Max] | Approval Agency | Applications | Voltage - Isolation | Features | Current - Output 1 | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Efficiency | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | 1.5 in | 38 mm | 3 " | 50.6 mm | 1.99 " | 76.3 mm | 50 W | 5 V | 1 | 90 VAC 120 VDC | 264 VAC 370 VDC | CE cURus | ITE (Commercial) | 4.242 kV | Adjustable Output Universal Input | 10 A | -30 °C | 70 °C | Chassis Mount | 81 % | Enclosed | |
 Traco Power | 1.5 in | 38 mm | 3 " | 50.6 mm | 1.99 " | 76.3 mm | 60 W | 24 V | 1 | 90 VAC 120 VDC | 264 VAC 370 VDC | CE cURus | ITE (Commercial) | 4.242 kV | Adjustable Output Universal Input | 2.5 A | -30 °C | 70 °C | Chassis Mount | 88 % | Enclosed |
