MPH02 Series

Catalog

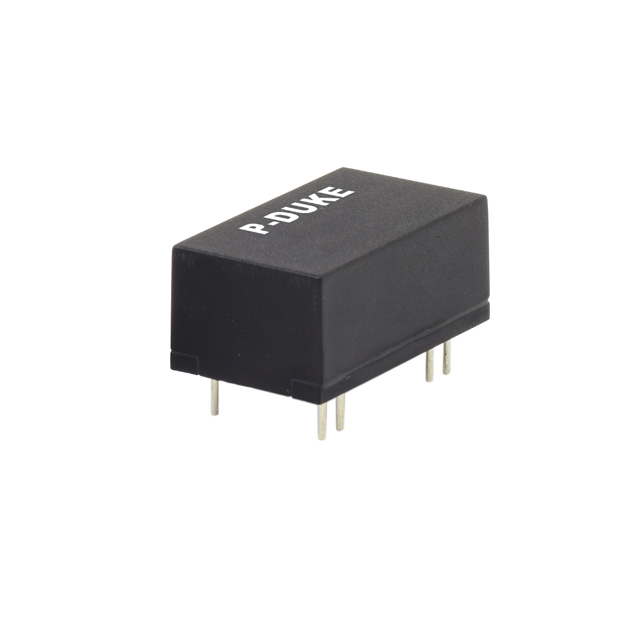

DC DC CONVERTER 12V 2W

Part	Voltage - Input (Max) [Max]	Voltage - Isolation	Power (Watts)	Voltage - Input (Min) [Min]	Voltage - Output 1	Efficiency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Mounting Type	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Type	Features	Current - Output (Max) [Max]	Approval Agency	Package / Case
P-DUKE Technology MPH02-24S12	36 V	5000 V	2 W	18 V	12 V	81 %	0.57 "	24.3 mm	0.96 "	10.2 mm	14.4 mm	0.4 "	Through Hole	ITE (Commercial) Medical	105 C	-40 °C	1	Isolated Module	Remote On/Off	167 mA	CB CE cURus	16-DIP Module 7 Leads
P-DUKE Technology MPH02-24S05	36 V	5000 V	2 W	18 V	5 V	79 %	0.57 "	24.3 mm	0.96 "	10.2 mm	14.4 mm	0.4 "	Through Hole	ITE (Commercial) Medical	105 C	-40 °C	1	Isolated Module	Remote On/Off	400 mA	CB CE cURus	16-DIP Module 7 Leads
P-DUKE Technology MPH02-05S05	12 V	5000 V	2 W	4.5 V	5 V	78 %	0.57 "	24.3 mm	0.96 "	10.2 mm	14.4 mm	0.4 "	Through Hole	ITE (Commercial) Medical	105 C	-40 °C	1	Isolated Module	Remote On/Off	400 mA	CB CE cURus	16-DIP Module 7 Leads
