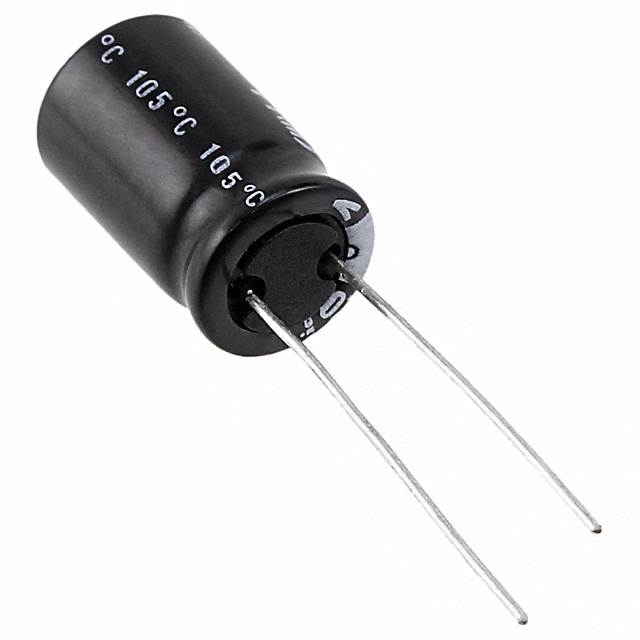

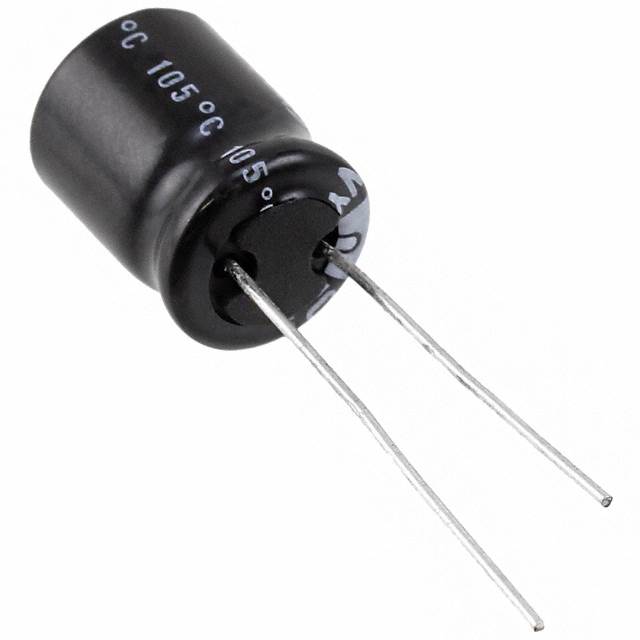

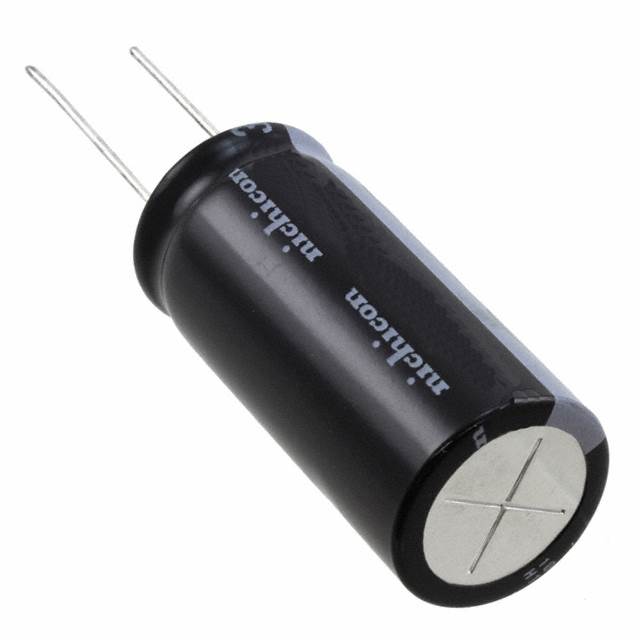

UVY Series

Manufacturer: Nichicon

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - RADIAL LEADED 470UF 35V 20% ALUMINUM CAPACITOR

Part	Package / Case	Polarization	Ripple Current @ Low Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Mounting Type	Lifetime @ Temp.	Applications	Tolerance	Size / Dimension [diameter]	Size / Dimension [diameter]	Lead Spacing	Lead Spacing	Ripple Current @ High Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Nichicon UVY1V471MPD1TD	Can Radial	Polar	460 mA	17.5 mm	0.689 in	35 V	-55 C	105 ░C	470 µF	Through Hole	2000 Hrs	General Purpose	20 %	0.394 in	10 mm	0.197 "	5 mm	690 mA
Nichicon UVY2W101MHD	Can Radial	Polar	200 mA		42 mm	450 V	-25 °C	105 ░C	100 µF	Through Hole	2000 Hrs	General Purpose	20 %	0.709 in	18 mm	0.295 in	7.5 mm	230 mA	1.654 in
Nichicon UVY1J470MED	Can Radial	Polar	120 mA			63 V	-55 C	105 ░C	47 µF	Through Hole	1000 Hrs	General Purpose	20 %	0.248 "	6.3 mm	0.098 in	2.5 mm	240 mA		0.492 in	12.5 mm
Nichicon UVY2V2R2MED	Can Radial	Polar	21 mA			350 V	-40 C	105 ░C	2.2 µF	Through Hole	1000 Hrs	General Purpose	20 %	0.248 "	6.3 mm	0.098 in	2.5 mm	24.15 mA		0.492 in	12.5 mm
Nichicon UVY2A471MHD1TN	Can Radial	Polar	715 mA			100 V	-55 C	105 ░C	470 µF	Through Hole	2000 Hrs	General Purpose	20 %	0.63 in	16 mm	0.295 in	7.5 mm	1.0725 A		27 mm		1.063 in
Nichicon UVY1C682MHD1TN	Can Radial	Polar	1.6 A			16 V	-55 C	105 ░C	6800 µF	Through Hole	2000 Hrs	General Purpose	20 %	0.63 in	16 mm	0.295 in	7.5 mm	1.84 A		27 mm		1.063 in
Nichicon UVY1V682MHD	Can Radial	Polar	2 A		42 mm	35 V	-55 C	105 ░C	6800 µF	Through Hole	2000 Hrs	General Purpose	20 %	0.709 in	18 mm	0.295 in	7.5 mm	2.3 A	1.654 in
Nichicon UVY2G4R7MPD	Can Radial	Polar	42 mA			400 V	-40 C	105 ░C	4.7 µF	Through Hole	2000 Hrs	General Purpose	20 %	0.394 in	10 mm	0.197 "	5 mm	48.3 mA		14 mm		0.551 in
Nichicon UVY1V222MHD	Can Radial	Polar				35 V	-55 C	105 ░C	2200 µF	Through Hole	2000 Hrs	General Purpose	20 %	0.63 in	16 mm	0.295 in	7.5 mm	1.449 A		27 mm		1.063 in
Nichicon UVY2G100MPD1CT	Can Radial	Polar	64 mA	17.5 mm	0.689 in	400 V	-40 C	105 ░C	10 µF	Through Hole	2000 Hrs	General Purpose	20 %	0.394 in	10 mm	0.197 "	5 mm	102.4 mA
