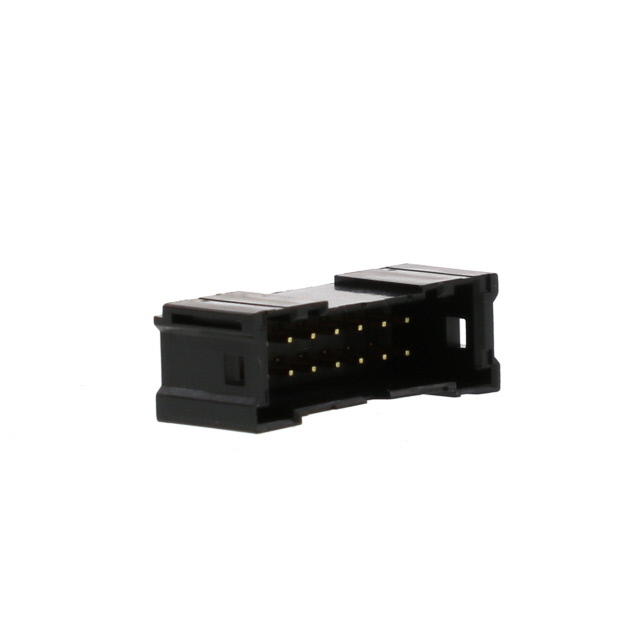

DF51A Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
HEADERS & WIRE HOUSINGS
| Part | Number of Positions | Connector Type | Shrouding | Row Spacing - Mating | Row Spacing - Mating | Material Flammability Rating | Number of Rows [custom] | Insulation Color | Number of Positions Loaded | Termination | Contact Type | Fastening Type | Style | Contact Shape | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Insulation Material | Mounting Type | Contact Length - Post | Contact Length - Post | Contact Material | Insulation Height [z] | Insulation Height | Voltage Rating | Pitch - Mating | Pitch - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Applications | Insulation Height | Contact Finish - Post | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Contact Finish - Mating | Number of Rows | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | 10 | Header | Shrouded - 4 Wall | 2 mm | 0.079 in | UL94 V-0 | 2 | Black | All | Solder | Male Pin | Detent Lock | Board to Cable/Wire | Square | -55 C | 105 ░C | Varies by Wire Gauge | Polybutylene Terephthalate (PBT) Glass Filled | Right Angle Through Hole | 0.118 in | 3 mm | Brass | 0.331 in | 8.4 mm | 250 VAC | 0.079 " | 2 mm | ||||||||||||

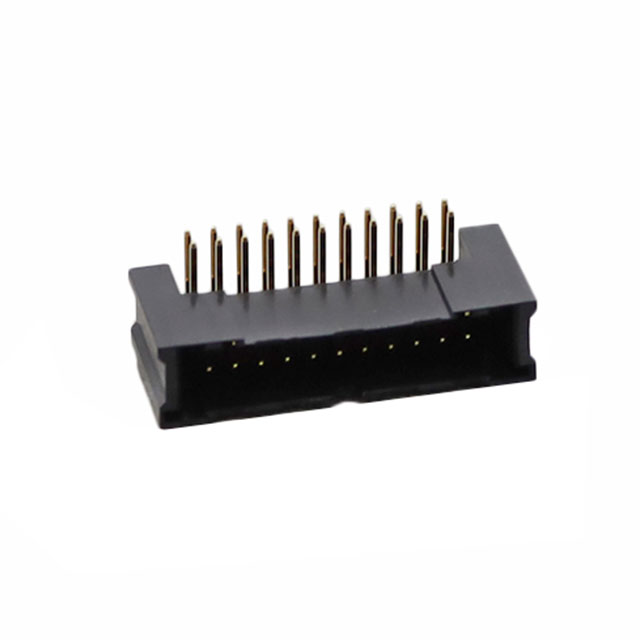

 Hirose Electric Co Ltd | 22 | Header | Shrouded - 4 Wall | 2 mm | 0.079 in | UL94 V-0 | 2 | Black | All | Solder | Male Pin | Detent Lock | Board to Cable/Wire | Square | -55 C | 105 ░C | Varies by Wire Gauge | Polybutylene Terephthalate (PBT) Glass Filled | Right Angle Through Hole | 0.118 in | 3 mm | Brass | 7.3 mm | 30 VAC | 0.079 " | 2 mm | 0.1 Ám | 3.94 Áin | General Purpose Industrial Medical | 0.287 in | Gold | 3.94 µin | 0.1 µm | Gold | |||||
 Hirose Electric Co Ltd | 5 | Header | Shrouded - 4 Wall | UL94 V-0 | Black | All | Solder | Male Pin | Detent Lock | Board to Cable/Wire | Square | -55 C | 105 ░C | Varies by Wire Gauge | Polybutylene Terephthalate (PBT) Glass Filled | Through Hole | 0.118 in | 3 mm | Brass | 0.331 in | 8.4 mm | 250 V | 0.079 " | 2 mm | General Purpose Industrial Medical | Gold | Gold | 1 | |||||||||||

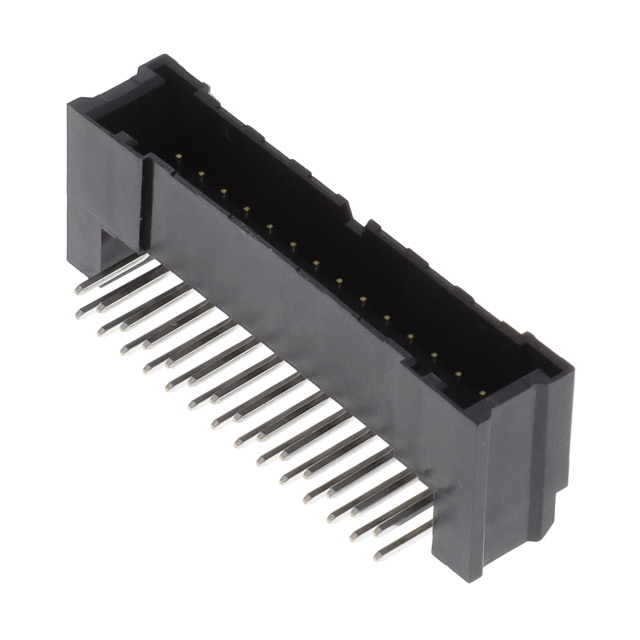

 Hirose Electric Co Ltd | 28 | Header | Shrouded - 4 Wall | 2 mm | 0.079 in | UL94 V-0 | 2 | Black | All | Solder | Male Pin | Detent Lock | Board to Cable/Wire | Square | -55 C | 105 ░C | Varies by Wire Gauge | Polybutylene Terephthalate (PBT) Glass Filled | Right Angle Through Hole | 0.118 in | 3 mm | Brass | 7.3 mm | 30 VAC | 0.079 " | 2 mm | 1 çm | 39.4 çin | General Purpose Industrial Medical | 0.287 in | Tin | 39.4 µin | 1 µm | ||||||

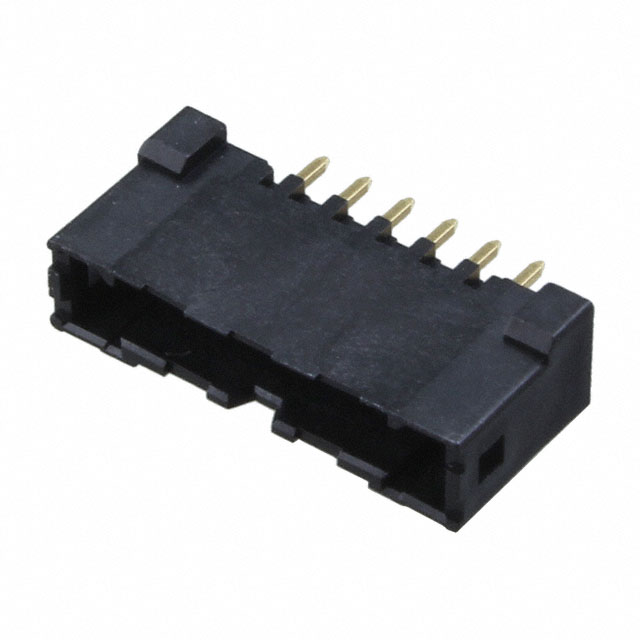

 Hirose Electric Co Ltd | 6 | Header | Shrouded - 4 Wall | UL94 V-0 | Black | All | Solder | Male Pin | Detent Lock | Board to Cable/Wire | Square | -55 C | 105 ░C | Varies by Wire Gauge | Polybutylene Terephthalate (PBT) Glass Filled | Through Hole | 0.118 in | 3 mm | Brass | 0.331 in | 8.4 mm | 250 V | 0.079 " | 2 mm | General Purpose Industrial Medical | Gold | Gold | 1 | |||||||||||

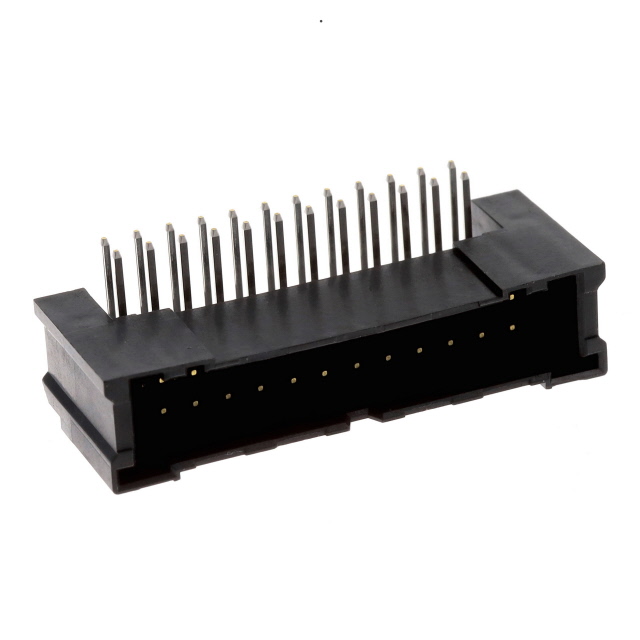

 Hirose Electric Co Ltd | 24 | Header | Shrouded - 4 Wall | 2 mm | 0.079 in | UL94 V-0 | 2 | Black | All | Solder | Male Pin | Detent Lock | Board to Cable/Wire | Square | -55 C | 105 ░C | Varies by Wire Gauge | Polybutylene Terephthalate (PBT) Glass Filled | Right Angle Through Hole | 0.118 in | 3 mm | Brass | 7.3 mm | 30 VAC | 0.079 " | 2 mm | 1 çm | 39.4 çin | General Purpose Industrial Medical | 0.287 in | Tin | 39.4 µin | 1 µm | ||||||
 Hirose Electric Co Ltd | 18 | Header | Shrouded - 4 Wall | 2 mm | 0.079 in | UL94 V-0 | 2 | Black | All | Solder | Male Pin | Detent Lock | Board to Cable/Wire | Square | -55 C | 105 ░C | Varies by Wire Gauge | Polybutylene Terephthalate (PBT) Glass Filled | Right Angle Through Hole | 0.118 in | 3 mm | Brass | 7.3 mm | 30 VAC | 0.079 " | 2 mm | 1 çm | 39.4 çin | General Purpose Industrial Medical | 0.287 in | Tin | 39.4 µin | 1 µm | ||||||
Hirose Electric Co Ltd | 12 | Header | Shrouded - 4 Wall | 2 mm | 0.079 in | UL94 V-0 | 2 | Black | All | Solder | Male Pin | Detent Lock | Board to Cable/Wire | Square | -55 C | 105 ░C | Polybutylene Terephthalate (PBT) | Right Angle Through Hole | 0.118 in | 3 mm | Brass | 7.3 mm | 250 VAC | 0.079 " | 2 mm | 1 çm | 39.4 çin | 0.287 in | Tin | 39.4 µin | 1 µm | 2 A | |||||||

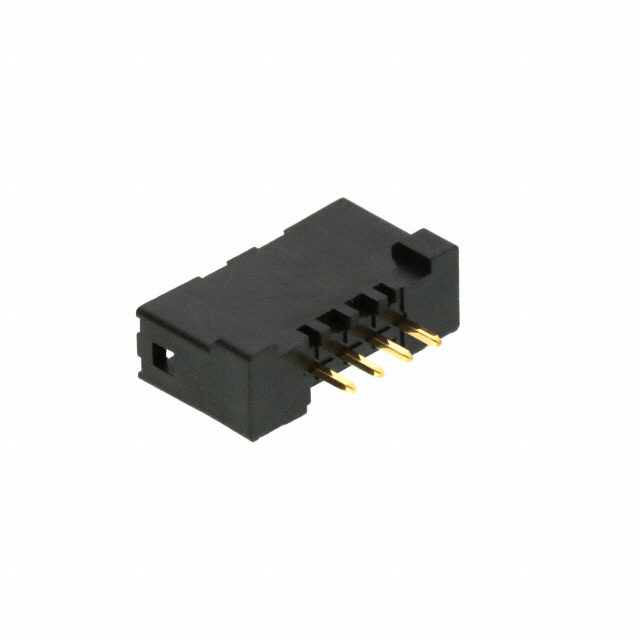

 Hirose Electric Co Ltd | 4 | Header | Shrouded - 4 Wall | UL94 V-0 | Black | All | Solder | Male Pin | Detent Lock | Board to Cable/Wire | Square | -55 C | 105 ░C | Varies by Wire Gauge | Polybutylene Terephthalate (PBT) Glass Filled | Through Hole | 0.118 in | 3 mm | Brass | 0.331 in | 8.4 mm | 250 V | 0.079 " | 2 mm | General Purpose Industrial Medical | Gold | Gold | 1 | |||||||||||

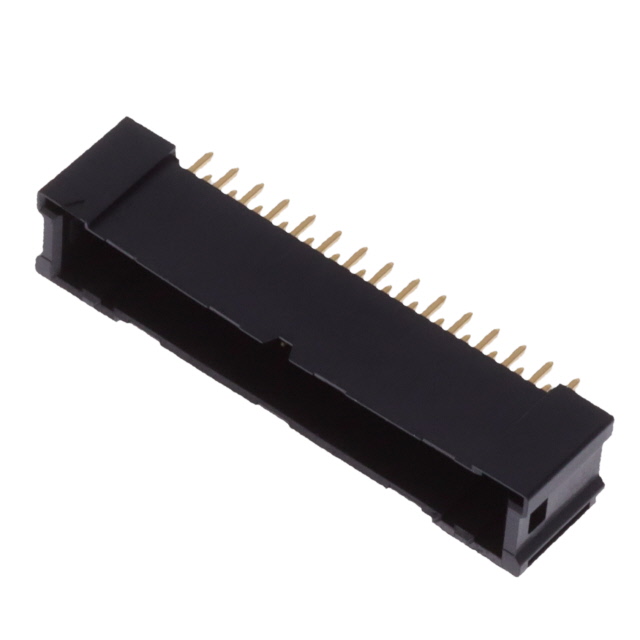

 Hirose Electric Co Ltd | 30 | Header | Shrouded - 4 Wall | 2 mm | 0.079 in | UL94 V-0 | 2 | Black | All | Solder | Male Pin | Detent Lock | Board to Cable/Wire | Square | -55 C | 105 ░C | Varies by Wire Gauge | Polybutylene Terephthalate (PBT) Glass Filled | Through Hole | 0.118 in | 3 mm | Brass | 0.331 in | 8.4 mm | 250 V | 0.079 " | 2 mm | General Purpose Industrial Medical | Gold | Gold |
