DSC8124 Series

Catalog

XTAL OSC PROG BLANK 10MHZ-460MHZ

Part	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Programmable Type	Type	Function	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Available Frequency Range [Max]	Available Frequency Range [Min]	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current - Supply (Max) [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Output	Frequency Stability (Total)	Ratings	Base Resonator	Frequency Stability	Current - Supply (Disable) (Max) [Max]
Microchip Technology DSC8124DI2	85 °C	-40 °C	6-SMD No Lead	Blank (User Must Program)	XO (Standard)	Enable/Disable	0.098 "	2 mm	2.5 mm	0.079 in	460 MHz	10 MHz	Surface Mount	0.035 "	0.9 mm	42 mA	3.6 V	2.25 V	HCSL	25 ppm	AEC-Q100	Crystal

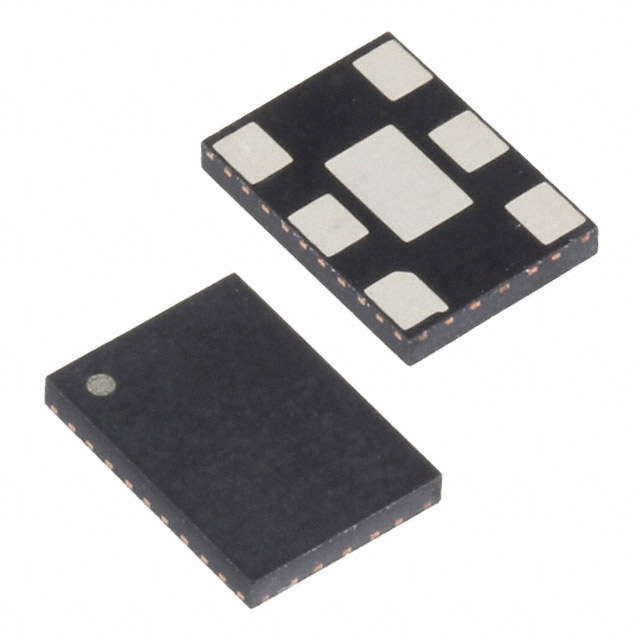

Microchip Technology DSC8124AI2	85 °C	-40 °C	6-SMD No Lead Exposed Pad	Blank (User Must Program)	XO (Standard)	Enable/Disable	0.276 "	5 mm	7 mm	0.197 "	460 MHz	10 MHz	Surface Mount	0.035 "	0.9 mm	42 mA	3.6 V	2.25 V	HCSL		AEC-Q100	MEMS	25 ppm	22 mA

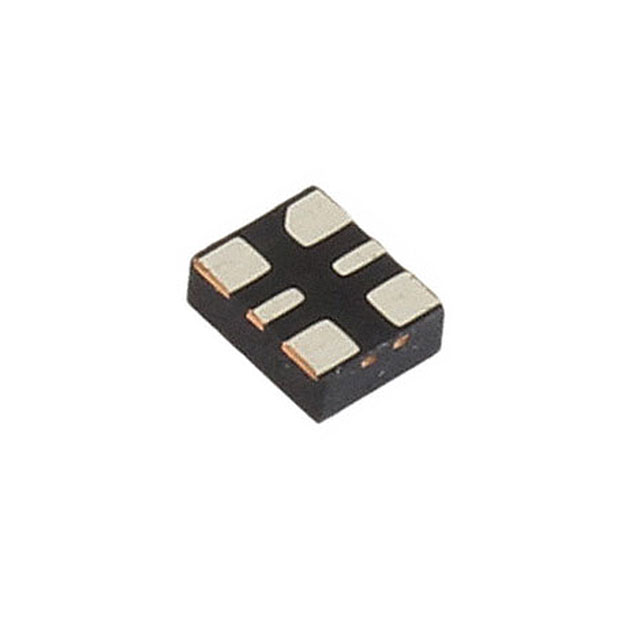

Microchip Technology DSC8124CI2	85 °C	-40 °C	6-SMD No Lead	Blank (User Must Program)	XO (Standard)	Enable/Disable	0.126 in	2.5 mm	3.2 mm	0.098 in	460 MHz	10 MHz	Surface Mount	0.035 "	0.9 mm	42 mA	3.6 V	2.25 V	HCSL			MEMS	25 ppm	22 mA
Microchip Technology DSC8124BI2	85 °C	-40 °C	6-VDFN	Blank (User Must Program)	XO (Standard)	Enable/Disable	0.197 in	3.2 mm	5 mm	0.126 "	460 MHz	10 MHz	Surface Mount	0.035 "	0.9 mm	42 mA	3.6 V	2.25 V	HCSL		AEC-Q100	MEMS	25 ppm
