3610PS Series

Catalog

FAN AXIAL 92X25MM 115VAC TERM

Part	Material - Blade	Material - Frame	Lifetime @ Temp.	Voltage - Rated	Air Flow	Air Flow	RPM	Bearing Type	Weight	Weight	Noise	Termination	Power (Watts)	Size / Dimension [y]	Size / Dimension [x]	Width [y]	Fan Type	Operating Temperature [Max]	Operating Temperature [Min]	Static Pressure	Static Pressure	Approval Agency	Current Rating (Amps)	Weight [custom]	Weight [custom]	Termination

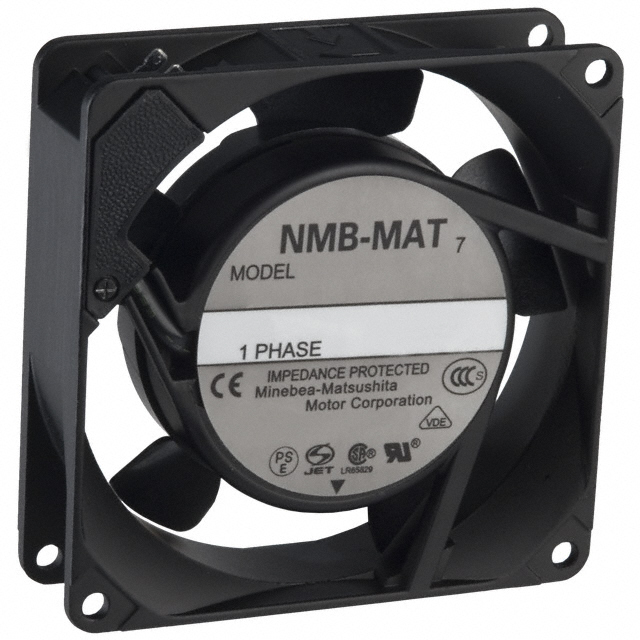

NMB TECHNOLOGIES 3610PS-12T-B30-A00	Polycarbonate (PC) Fiberglass Reinforced	Aluminum	50000 Hrs	115 VAC	0.966 mł/min	34.5 CFM	3100 RPM	Ball	299.37 g	0.66 lb	38 dB(A)	2	9 W	92 mm	92 mm	25 mm	Tubeaxial	70 °C	-10 °C	60.7 Pa	0.243 in H2O	CE CSA TUV UL VDE
NMB TECHNOLOGIES 3610PS-10T-B20-B00	Polycarbonate (PC) Fiberglass Reinforced	Aluminum	50000 Hrs	100 VAC	0.784 m³/min	28 CFM	2500 RPM	Ball			35 dB	2	6 W	92.5 mm	92.5 mm	25 mm	Tubeaxial	70 °C	-10 °C	39.2 Pa	0.157 in H2O	CE CSA TUV UL VDE	85 mA	299.82 g	0.661 lb
NMB TECHNOLOGIES 3610PS-12W-B20-A00	Polycarbonate (PC) Fiberglass Reinforced	Aluminum	50000 Hrs	115 VAC	0.784 m³/min	28 CFM	2500 RPM	Ball	299.37 g	0.66 lb	35 dB		6 W	92 mm	92 mm	25 mm	Tubeaxial	70 °C	-10 °C	40 Pa	0.16 in H2O	CE CSA TUV UL VDE	0.09 A			2 Wire Leads
NMB TECHNOLOGIES 3610PS-20T-B30-B00	Polycarbonate (PC) Fiberglass Reinforced	Aluminum	50000 Hrs	200 VAC	0.966 mł/min	34.5 CFM	3100 RPM	Ball			38 dB(A)	2	10 W	92.5 mm	92.5 mm	25 mm	Tubeaxial	70 °C	-10 °C	60.7 Pa	0.243 in H2O	CE CSA TUV UL VDE		299.82 g	0.661 lb
NMB TECHNOLOGIES 3610PS-24T-B20-A00	Polycarbonate (PC) Fiberglass Reinforced	Aluminum	50000 Hrs	240 VAC	0.784 m³/min	28 CFM	2500 RPM	Ball			35 dB	2	8 W	92.5 mm	92.5 mm	25 mm	Tubeaxial	70 °C	-10 °C	39.2 Pa	0.157 in H2O	CE CSA TUV UL VDE	50 mA	299.82 g	0.661 lb

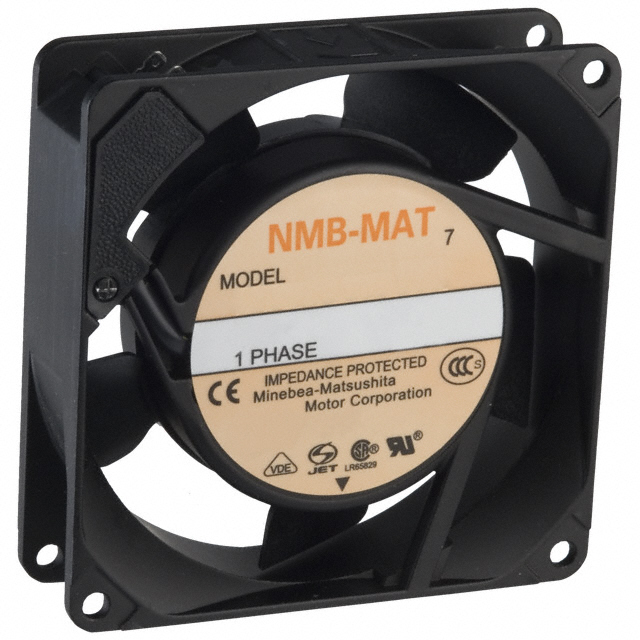

NMB TECHNOLOGIES 3610PS-23T-B10-A00	Polycarbonate (PC) Fiberglass Reinforced	Aluminum	50000 Hrs	230 VAC	0.56 m³/min	20 CFM	1800 RPM	Ball	299.37 g	0.66 lb	26 dB	2	6 W	92 mm	92 mm	25 mm	Tubeaxial	70 °C	-10 °C	19.9 Pa	0.08 in H2O	CE CSA TUV UL VDE	40 mA

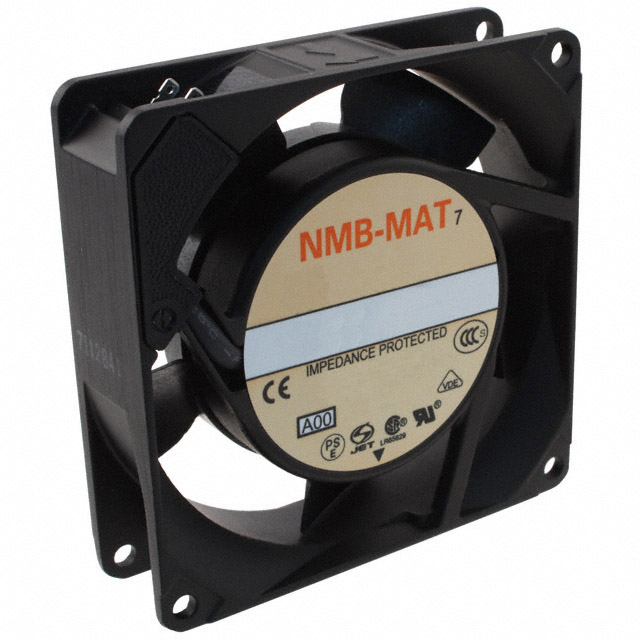

NMB TECHNOLOGIES 3610PS-23T-B30-A00	Polycarbonate (PC) Fiberglass Reinforced	Aluminum	50000 Hrs	230 VAC	0.966 mł/min	34.5 CFM	3100 RPM	Ball	299.37 g	0.66 lb	39 dB(A)	2	10 W	92 mm	92 mm	25 mm	Tubeaxial	70 °C	-10 °C	60.7 Pa	0.243 in H2O	CE CSA TUV UL VDE	70 mA
NMB TECHNOLOGIES 3610PS-23W-B20-A00	Polycarbonate (PC) Fiberglass Reinforced	Aluminum	50000 Hrs	230 VAC	0.784 m³/min	28 CFM	2500 RPM	Ball	299.37 g	0.66 lb	35 dB		6 W	92 mm	92 mm	25 mm	Tubeaxial	70 °C	-10 °C	40 Pa	0.16 in H2O	CE CSA TUV UL VDE	50 mA			2 Wire Leads

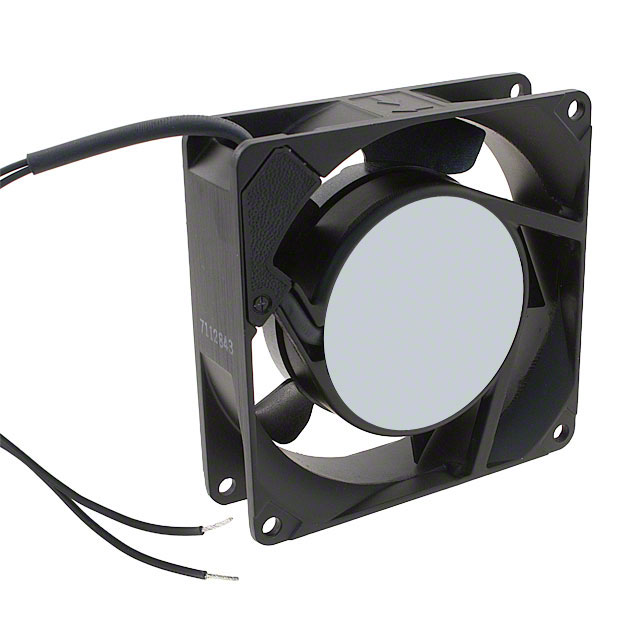

NMB TECHNOLOGIES 3610PS-23W-B30-A00	Polycarbonate (PC) Fiberglass Reinforced	Aluminum	50000 Hrs	230 VAC	0.966 mł/min	34.5 CFM	3100 RPM	Ball	299.37 g	0.66 lb	39 dB(A)		10 W	92 mm	92 mm	25 mm	Tubeaxial	70 °C	-10 °C	60.7 Pa	0.243 in H2O	CE CSA TUV UL VDE	70 mA			2 Wire Leads
NMB TECHNOLOGIES 3610PS-12T-B20-A00	Polycarbonate (PC) Fiberglass Reinforced	Aluminum	50000 Hrs	115 VAC	0.784 m³/min	28 CFM	2500 RPM	Ball	299.37 g	0.66 lb	35 dB	2	6 W	92 mm	92 mm	25 mm	Tubeaxial	70 °C	-10 °C	40 Pa	0.16 in H2O	CE CSA TUV UL VDE	0.09 A
