658 Series

Manufacturer: Wakefield Thermal Solutions

Catalog

HEAT SINKS OMNIDIRECTIONAL PIN FIN HEAT SINK FOR 27MM BGA/POWERPC, CHOMERICS T410R

Part	Power Dissipation @ Temperature Rise	Type	Package Cooled	Attachment Method	Material Finish	Fin Height [z]	Fin Height [z]	Width	Width [x]	Shape	Length	Length	Thermal Resistance @ Forced Air Flow	Material	Fin Height	Fin Height	Fin Height [custom]	Fin Height [custom]

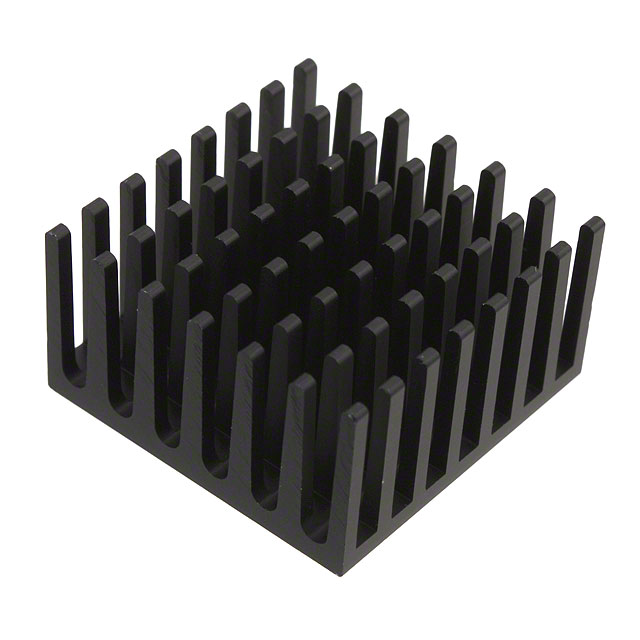

Wakefield Thermal Solutions 658-60ABT4E	2.5 W 30 °C	Top Mount	BGA	Thermal Tape Adhesive (Included)	Black Anodized	15.2 mm	0.598 "	27.94 mm	1.1 in	Pin Fins Square	27.94 mm	1.1 in	2 °C/W	Aluminum
Wakefield Thermal Solutions 658-45ABT4E		Top Mount	BGA	Thermal Tape Adhesive (Included)	Black Anodized	11.43 mm	0.45 "	27.94 mm	1.1 in	Pin Fins Square	27.94 mm	1.1 in	6 °C/W	Aluminum

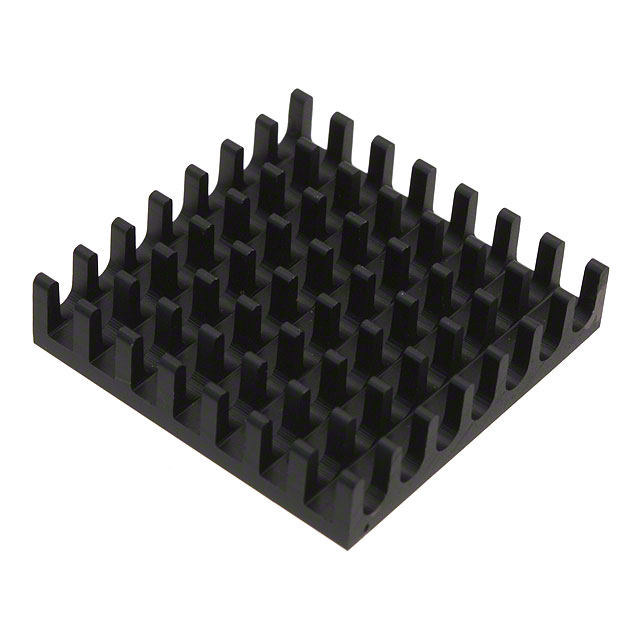

Wakefield Thermal Solutions 658-25ABT4E	2 W 40 °C	Top Mount	BGA	Adhesive	Black Anodized			27.94 mm	1.1 in	Pin Fins Square	27.94 mm	1.1 in	5 °C/W	Aluminum	6.35 mm	0.25 in
Wakefield Thermal Solutions 658-35ABT4E		Top Mount	BGA	Thermal Tape Adhesive (Included)	Black Anodized			27.94 mm	1.1 in	Pin Fins Square	27.94 mm	1.1 in	3 °C/W	Aluminum			8.89 mm	0.35 "
Wakefield Thermal Solutions 658-25ABT5	2 W 40 °C	Top Mount	BGA	Thermal Tape Adhesive	Black Anodized			27.94 mm	1.1 in	Pin Fins Square	27.94 mm	1.1 in	5 °C/W	Aluminum	6.35 mm	0.25 in
Wakefield Thermal Solutions 658-35ABT4E		Top Mount	BGA	Thermal Tape Adhesive (Included)	Black Anodized			27.94 mm	1.1 in	Pin Fins Square	27.94 mm	1.1 in	3 °C/W	Aluminum			8.89 mm	0.35 "
Wakefield Thermal Solutions 658-45ABT5		Top Mount	BGA	Thermal Tape Adhesive	Black Anodized	11.43 mm	0.45 "	27.94 mm	1.1 in	Pin Fins Square	27.94 mm	1.1 in	6 °C/W	Aluminum
Wakefield Thermal Solutions 658-60ABT4E	2.5 W 30 °C	Top Mount	BGA	Thermal Tape Adhesive (Included)	Black Anodized	15.2 mm	0.598 "	27.94 mm	1.1 in	Pin Fins Square	27.94 mm	1.1 in	2 °C/W	Aluminum
Wakefield Thermal Solutions 658-45ABT5		Top Mount	BGA	Thermal Tape Adhesive	Black Anodized	11.43 mm	0.45 "	27.94 mm	1.1 in	Pin Fins Square	27.94 mm	1.1 in	6 °C/W	Aluminum
Wakefield Thermal Solutions 658-25ABT5	2 W 40 °C	Top Mount	BGA	Thermal Tape Adhesive	Black Anodized			27.94 mm	1.1 in	Pin Fins Square	27.94 mm	1.1 in	5 °C/W	Aluminum	6.35 mm	0.25 in
