ECW-U Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

CAP FILM 0.018UF 5% 250VDC 1913

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Tolerance	Applications	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Voltage Rating - DC	Package / Case	Package / Case	Termination	Capacitance	Dielectric Material	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage Rating - AC	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max)

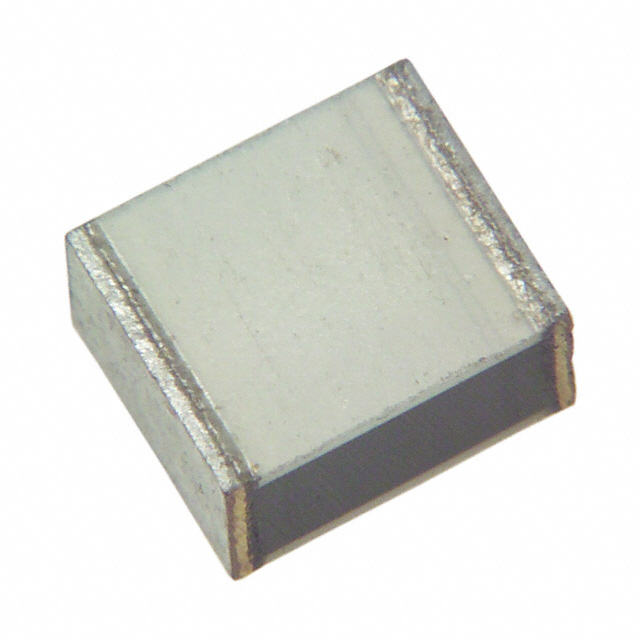

Panasonic Industrial Automation Sales ECW-U2183JC9	-55 °C	125 °C	Surface Mount	5 %	General Purpose	0.13 in	3.3 mm	0.189 "	4.8 mm	250 V	4833 Metric	1913	Solder Pads	0.018 µF	Metallized - Stacked Polyester Polyethylene Naphthalate (PEN)	0.087 in	2.2 mm
Panasonic Industrial Automation Sales ECW-U2472JC9	-55 °C	125 °C	Surface Mount	5 %	General Purpose	0.13 in	3.3 mm	0.189 "	4.8 mm	250 V	4833 Metric	1913	Solder Pads	4700 pF	Metallized - Stacked Polyester Polyethylene Naphthalate (PEN)			125 V	0.067 in	1.7 mm
Panasonic Industrial Automation Sales ECW-U1562JX5	-55 °C	105 ░C	Surface Mount	5 %	General Purpose	0.098 in	2.5 mm	0.126 in	3.2 mm	100 V	3225 Metric	1210	Solder Pads	5600 pF	Metallized - Stacked Polyester Polyethylene Naphthalate (PEN)			40 V	0.067 in	1.7 mm

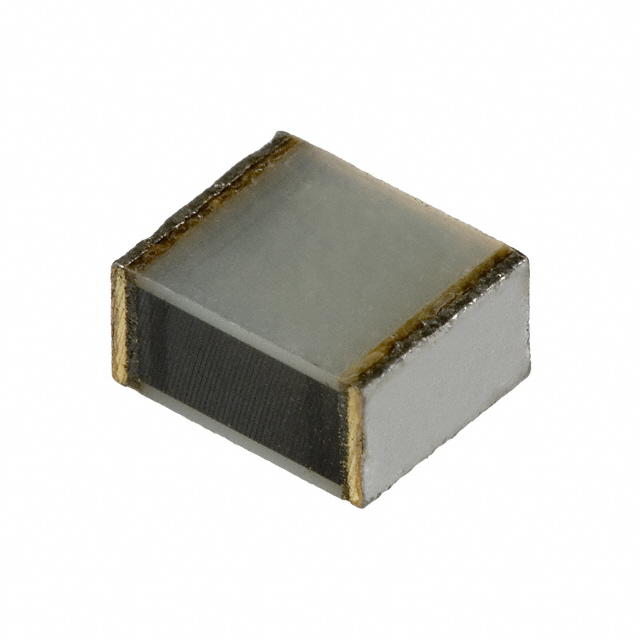

Panasonic Industrial Automation Sales ECW-U2393V16	-55 °C	85 °C	Surface Mount	5 %	DV/DT High Frequency High Pulse Switching	0.161 in	4.1 mm	0.236 in	6 mm	250 V			Solder Pads	0.039 µF	Metallized - Stacked Polyester Polyethylene Naphthalate (PEN)	0.091 "	2.3 mm	125 V
Panasonic Industrial Automation Sales ECW-U1683KC9	-55 °C	125 °C	Surface Mount	10 %	General Purpose	0.13 in	3.3 mm	0.189 "	4.8 mm	100 V	4833 Metric	1913	Solder Pads	0.068 µF	Metallized - Stacked Polyester Polyethylene Naphthalate (PEN)	0.102 "	2.6 mm	40 V
Panasonic Industrial Automation Sales ECW-U1473JC9	-55 °C	125 °C	Surface Mount	5 %	General Purpose	0.13 in	3.3 mm	0.189 "	4.8 mm	100 V	4833 Metric	1913	Solder Pads		Metallized - Stacked Polyester Polyethylene Naphthalate (PEN)	0.087 in	2.2 mm	40 V
Panasonic Industrial Automation Sales ECW-U2823JC9	-55 °C	125 °C	Surface Mount	5 %	General Purpose	0.197 "	5 mm	0.236 in	6 mm	250 V			Solder Pads	0.082 µF	Metallized - Stacked Polyester Polyethylene Naphthalate (PEN)	0.134 in	3.4 mm	125 V
Panasonic Industrial Automation Sales ECW-U4333V17	-55 °C	85 °C	Surface Mount	5 %	DC Filtering DC Link	0.197 "	5 mm	0.236 in	6 mm	400 V			Solder Pads	0.033 çF	Metallized - Stacked Polyester Polyethylene Naphthalate (PEN)			157 V	0.157 in	4 mm
Panasonic Industrial Automation Sales ECW-U2333JC9	-55 °C	125 °C	Surface Mount	5 %	General Purpose	0.13 in	3.3 mm	0.189 "	4.8 mm	250 V	4833 Metric	1913	Solder Pads	0.033 çF	Metallized - Stacked Polyester Polyethylene Naphthalate (PEN)			125 V	0.118 in		3 mm
Panasonic Industrial Automation Sales ECW-U1823JC9	-55 °C	125 °C	Surface Mount	5 %	General Purpose	0.13 in	3.3 mm	0.189 "	4.8 mm	100 V	4833 Metric	1913	Solder Pads	0.082 µF	Metallized - Stacked Polyester Polyethylene Naphthalate (PEN)			40 V	0.118 in		3 mm
