AMSR2 Series

Manufacturer: aimtec

Catalog

DC DC CONVERTER 5V 10W

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Max) [Max]	Efficiency	Applications	Package / Case	Supplier Device Package	Number of Outputs	Type	Voltage - Input (Min) [Min]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Current - Output (Max) [Max]	Voltage - Output 1	Power (Watts)	Mounting Type
aimtec AMSR2-7805JZ	-40 °C	85 °C	36 V	87 %	ITE (Commercial)	3-SIP Module	3-SIP	1	Non-Isolated PoL Module	8 V	9 mm	0.69 in	0.35 in	0.45 "	11.5 mm	17.5 mm	2 A	5 V	10 W	Through Hole
aimtec AMSR2-7815JZ	-40 C	85 °C	36 V	93 %	ITE (Commercial)	3-SIP Module		1	Non-Isolated PoL Module	18 V	8.9 mm	0.69 "in"	0.35 "in"	0.45 "in"	11.5 mm	17.5 mm	2 A	15 V	30 Watts	Through Hole

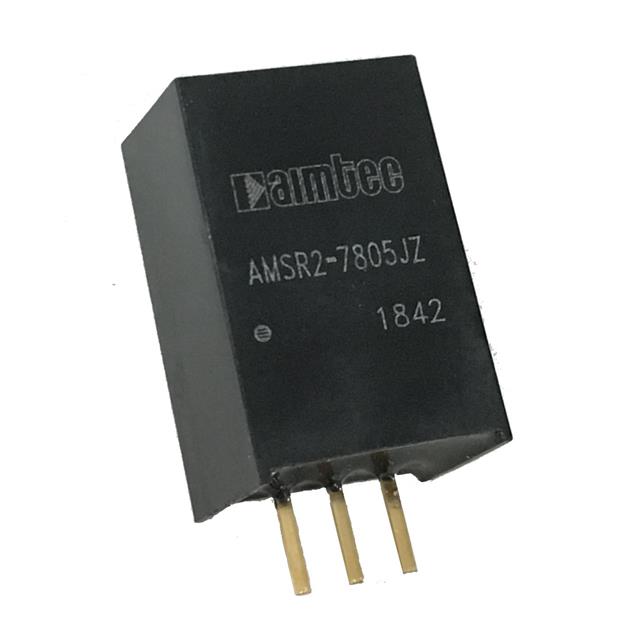

aimtec AMSR2-783.3JZ	-40 C	85 °C	36 V	83 %	ITE (Commercial)	3-SIP Module		1	Non-Isolated PoL Module	6 V	8.9 mm	0.69 "in"	0.35 "in"	0.45 "in"	11.5 mm	17.5 mm	2 A	3.3 V	6.6 W	Through Hole

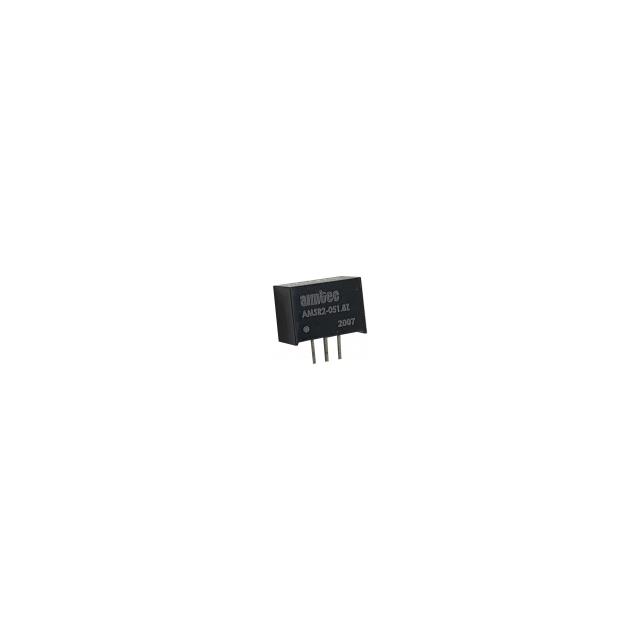

aimtec AMSR2-2405Z	-40 °C	73 °C	36 V	89 %	ITE (Commercial)	3-SIP Module		1	Non-Isolated PoL Module	6.5 V	7.5 mm	0.4 "	0.3 "	0.55 in	14 mm	10.1 mm	2 A	5 V	10 W	Through Hole

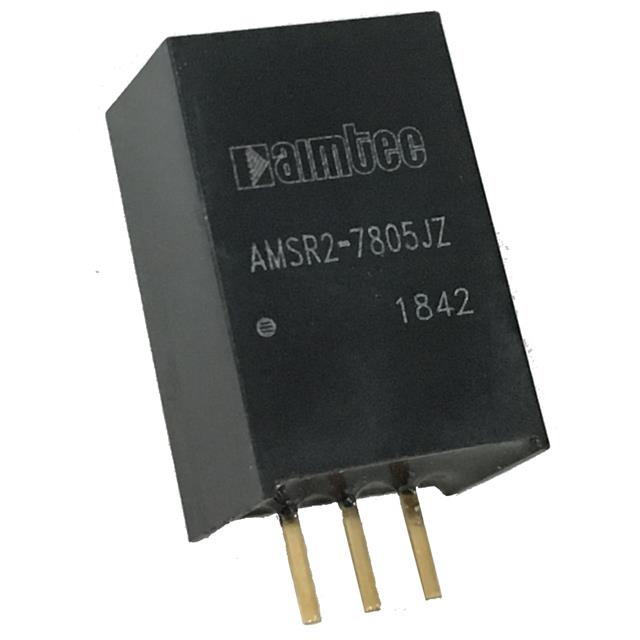

aimtec AMSR2-7812JZ	-40 C	85 °C	36 V	92 %	ITE (Commercial)	3-SIP Module		1	Non-Isolated PoL Module	16 V	9 mm	0.69 in	0.35 in	0.45 "	11.5 mm	17.5 mm	2 A	12 V	24 W	Through Hole
aimtec AMSR2-243.3Z	-40 °C	100 °C	36 V	91 %	ITE (Commercial)	3-SIP Module		1	Non-Isolated PoL Module	4.75 V	7.5 mm	0.4 "	0.3 "	0.55 in	14 mm	10.1 mm	2 A	3.3 V	6.6 W	Through Hole
aimtec AMSR2-7809JZ	-40 C	85 °C	36 V	90 %	ITE (Commercial)	3-SIP Module		1	Non-Isolated PoL Module	13 V	8.9 mm	0.69 "in"	0.35 "in"	0.45 "in"	11.5 mm	17.5 mm	2 A	9 V	18 W	Through Hole
