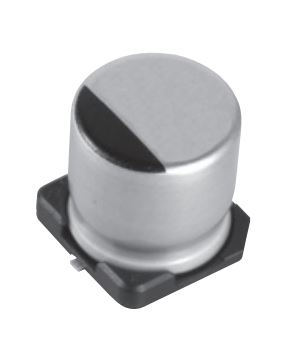

GYB Series

Manufacturer: Nichicon

Catalog

CAP ALUMINUM POLYMER HYBRID 68UF 50VDC 20%( 8 X 10MM) SMD 0.03 OHM 1.8A 10000H 105°C TAPE

Part	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Package / Case	Voltage - Rated	Applications	Ripple Current @ High Frequency	Type	Capacitance	Ratings	Tolerance	Ripple Current @ Low Frequency	Lifetime @ Temp.	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	ESR (Equivalent Series Resistance)	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type
Nichicon GYB1H680MCQ1GS	8.3 mm	8.3 mm	0.327 in	0.327 in	Radial Can - SMD	50 VDC	General Purpose	1.8 A	Hybrid	68 µF	AEC-Q200	20 %	270 mA	10000 Hrs	0.413 "	10.5 mm	0.315 in	8 mm	30 mOhms	-55 C	105 ░C	Surface Mount
Nichicon GYB1V221MCQ1GS	10.3 mm	10.3 mm	0.406 "	0.406 in	Radial Can - SMD	35 V	Automotive	2.5 A	Hybrid	220 µF	AEC-Q200	20 %	375 mA	10000 Hrs	0.413 "	10.5 mm	0.394 in	10 mm	20 mOhms	-55 C	105 ░C	Surface Mount
Nichicon GYB1V101MCW1GS	8.3 mm	8.3 mm	0.327 in	0.327 in	Radial Can - SMD	35 V	Automotive	2.3 A	Hybrid	100 µF	AEC-Q200	20 %	345 mA	10000 Hrs	0.413 "	10.5 mm	0.315 in	8 mm	27 mOhms	-55 C	105 ░C	Surface Mount
Nichicon GYB1V101MCQ1GS	8.3 mm	8.3 mm	0.327 in	0.327 in	Radial Can - SMD	35 V	Automotive	2.3 A	Hybrid	100 µF	AEC-Q200	20 %	345 mA	10000 Hrs	0.413 "	10.5 mm	0.315 in	8 mm	27 mOhms	-55 C	105 ░C	Surface Mount
