LD39020 Series

Catalog

LDO VOLTAGE REGULATOR, FIXED, 1.5 TO 5.5V IN, 200MV DROP, 1.8V/0.2A OUT, DFN-4, -40 TO 125 °C

Part	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output	Voltage - Input (Max) [Max]	Protection Features	PSRR [Min]	PSRR [Max]	Number of Regulators	Output Configuration	Voltage - Output (Min/Fixed)	Package / Case	Control Features	Mounting Type	Voltage Dropout (Max) [Max]	Current - Supply (Max) [Max]	Voltage - Output (Min/Fixed) [Min]

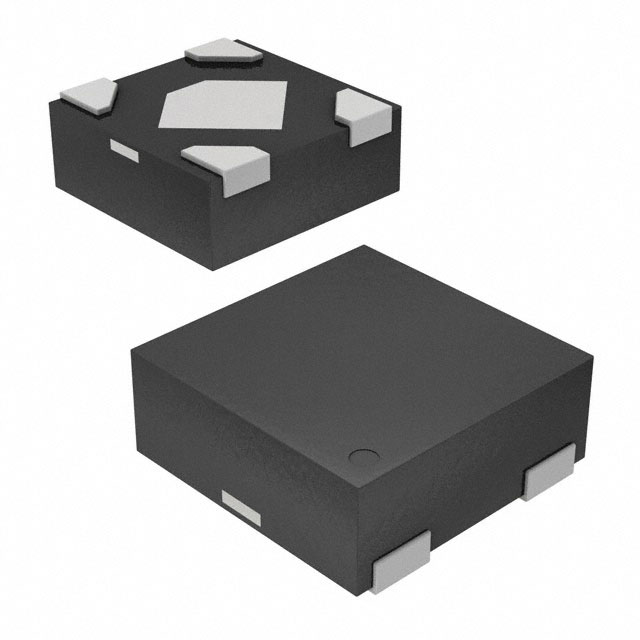

STMicroelectronics LD39020ADTPU18R	4-DFN (1x1)	-40 C	125 °C	0.2 A	5.5 V	Over Current Over Temperature Soft Start	55 dB	80 dB	1	Positive	1.8 V	4-XDFN Exposed Pad	Enable	Surface Mount	0.35 V
STMicroelectronics LD39020DTPU25R	4-DFN (1x1)	-40 C	125 °C	0.2 A	5.5 V	Over Current Over Temperature Soft Start	55 dB	80 dB	1	Positive	2.5 V	4-XDFN Exposed Pad	Enable	Surface Mount	0.35 V	100 çA
STMicroelectronics LD39020ADTPU28R	4-DFN (1x1)	-40 C	125 °C	0.2 A	5.5 V	Over Current Over Temperature Soft Start	55 dB	80 dB	1	Positive	2.8 V	4-XDFN Exposed Pad	Enable	Surface Mount	0.35 V
STMicroelectronics LD39020DTPU13R	4-DFN (1x1)	-40 C	125 °C	0.2 A	5.5 V	Over Current Over Temperature Soft Start	55 dB	80 dB	1	Positive		4-XDFN Exposed Pad	Enable	Surface Mount	0.35 V		1.3 V
STMicroelectronics LD39020ADTPU25R	4-DFN (1x1)	-40 C	125 °C	0.2 A	5.5 V	Over Current Over Temperature Soft Start	55 dB	80 dB	1	Positive	2.5 V	4-XDFN Exposed Pad	Enable	Surface Mount	0.35 V
STMicroelectronics LD39020ADTPU30R	4-DFN (1x1)	-40 C	125 °C	0.2 A	5.5 V	Over Current Over Temperature Soft Start	55 dB	80 dB	1	Positive	3 V	4-XDFN Exposed Pad	Enable	Surface Mount	0.35 V
STMicroelectronics LD39020ADTPU33R	4-DFN (1x1)	-40 C	125 °C	0.2 A	5.5 V	Over Current Over Temperature Soft Start	55 dB	80 dB	1	Positive	3.3 V	4-XDFN Exposed Pad	Enable	Surface Mount	0.35 V
STMicroelectronics LD39020DTPU11R	4-DFN (1x1)	-40 C	125 °C	0.2 A	5.5 V	Over Current Over Temperature Soft Start	55 dB	80 dB	1	Positive	1.1 V	4-XDFN Exposed Pad	Enable	Surface Mount	0.35 V
STMicroelectronics LD39020ADM30R	SOT-23-5	-40 C	125 °C	0.2 A	5.5 V	Over Current Over Temperature Soft Start	55 dB	80 dB	1	Positive	3 V	SC-74A SOT-753	Enable	Surface Mount	0.35 V
STMicroelectronics LD39020DTPU31R	4-DFN (1x1)	-40 C	125 °C	0.2 A	5.5 V	Over Current Over Temperature Soft Start	55 dB	80 dB	1	Positive	3.1 V	4-XDFN Exposed Pad	Enable	Surface Mount	0.35 V
