STPS2 Series

Catalog

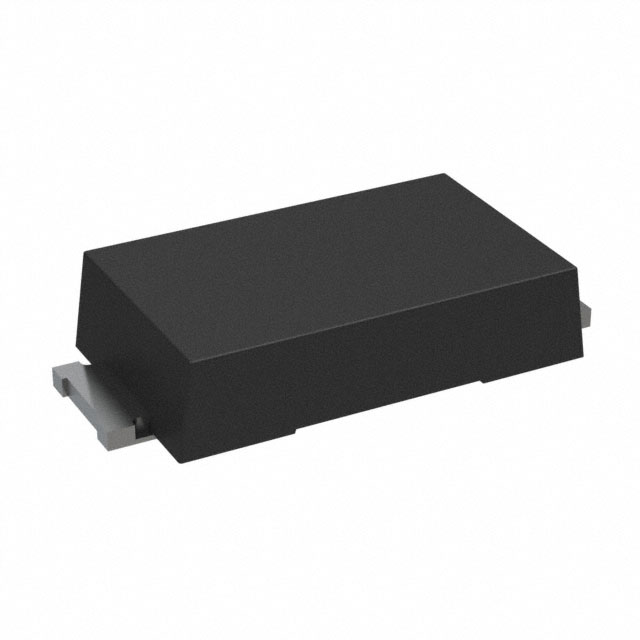

DIODE SCHOTTKY 100V 2A SMAFLAT

Part	Current - Average Rectified (Io)	Supplier Device Package	Technology	Operating Temperature - Junction	Voltage - DC Reverse (Vr) (Max) [Max]	Package / Case	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If [Max]	Speed	Mounting Type	Grade	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Voltage - Forward (Vf) (Max) @ If
STMicroelectronics STPS2H100AFN	2 A	SMAflat Notch	Schottky	175 °C	100 V	DO-221AC SMA Flat Leads	1 µA	790 mV	200 mA 500 ns	Surface Mount
STMicroelectronics STPS2H100AY	2 A	DO-214AC (SMA)	Schottky		100 V	DO-214AC SMA	1 µA	790 mV	200 mA 500 ns	Surface Mount	Automotive	-40 °C	175 ░C
STMicroelectronics STPS2L25AFN	2 A	SMAflat Notch	Schottky	150 ¯C	25 V	DO-221AC SMA Flat Leads	90 µA	450 mV	200 mA 500 ns	Surface Mount
STMicroelectronics STPS2L30AFN	2 A	SMAflat Notch	Schottky	150 ¯C	30 V	DO-221AC SMA Flat Leads	200 µA	450 mV	200 mA 500 ns	Surface Mount
STMicroelectronics STPS2L60AFN	2 A	SMAflat Notch	Schottky	150 ¯C	60 V	DO-221AC SMA Flat Leads	100 µA	600 mV	200 mA 500 ns	Surface Mount
STMicroelectronics STPS2L40AFN	2 A	SMAflat Notch	Schottky	150 ¯C	40 V	DO-221AC SMA Flat Leads	220 µA		200 mA 500 ns	Surface Mount				430 mV
