C6047 Series

Catalog

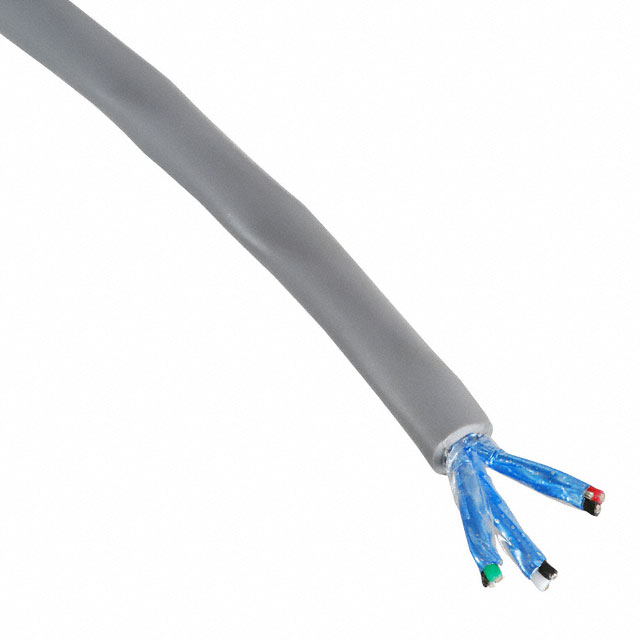

MULTI-PAIR 6COND 18AWG GRAY 500'

Part	Length	Length	Conductor Insulation	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Shield Material	Cable Type	Shield Coverage	Jacket (Insulation) Material	Jacket Color	Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Shield Type	Features	Conductor Material	Usage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length [x]	Length [x]
Prysmian Group C6047A.41.10	15.24 m 152.4 m 304.8 m	50 ft 500 ft 1000 ft	Polyethylene (PE)	0.395 in	10.03 mm	18 AWG	16	30 AWG	6	Flexfoil®	Multi-Pair	100 %	Poly-Vinyl Chloride (PVC)	Gray	300 VDC	80 °C	-20 ░C	Foil	Drain Wire Rip Cord	Copper Tinned	Computer	0.813 mm	0.032 in
Prysmian Group C6047A.38.10	152.4 m	500 ft	Polyethylene (PE)	0.395 in	10.03 mm	18 AWG	16	30 AWG	6	Flexfoil®	Multi-Pair	100 %	Poly-Vinyl Chloride (PVC)	Gray	300 VDC	80 °C	-20 ░C	Foil	Drain Wire Rip Cord	Copper Tinned	Computer	0.813 mm	0.032 in
Prysmian Group C6047A.41.10	15.24 m 152.4 m 304.8 m	50 ft 500 ft 1000 ft	Polyethylene (PE)	0.395 in	10.03 mm	18 AWG	16	30 AWG	6		Multi-Pair		Poly-Vinyl Chloride (PVC)	Gray	300 VDC	80 °C	-20 ░C	Foil	Drain Wire Rip Cord	Copper Tinned	Computer	0.813 mm	0.032 in	100 ft	30.5 m
Prysmian Group C6047A.46.10			Polyethylene (PE)	0.395 in	10.03 mm	18 AWG	16	30 AWG	6	Flexfoil®	Multi-Pair	100 %	Poly-Vinyl Chloride (PVC)	Gray	300 VDC	80 °C	-20 ░C	Foil	Drain Wire Rip Cord	Copper Tinned	Computer	0.813 mm	0.032 in
