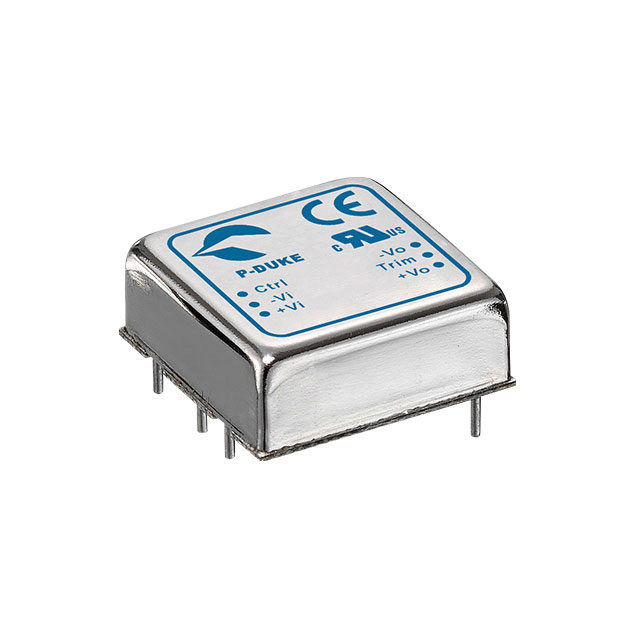

LCD15 Series
Manufacturer: P-DUKE Technology
Beta
⌘K
DC DC CONVERTER 5V 15W
| Part | Voltage - Isolation | Number of Outputs | Package / Case | Control Features | Power (Watts) | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Features | Efficiency | Approval Agency | Voltage - Output 1 | Voltage - Input (Max) [Max] | Type | Applications | Mounting Type | Voltage - Input (Min) [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output (Max) [Max] | Current - Output (Max) | Voltage - Output 2 | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 P-DUKE Technology | 1.6 kV | 1 | 6-DIP Module | Active Low Enable | 15 W | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | Remote On/Off | 88 % | CB CE cURus | 5 V | 36 V | Isolated Module | ITE (Commercial) | Through Hole | 18 V | 105 C | -40 °C | 3 A | |||
 P-DUKE Technology | 1.6 kV | 2 | 6-DIP Module | Active Low Enable | 15 W | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | Remote On/Off | 88 % | CB CE cURus | 15 V | 36 V | Isolated Module | ITE (Commercial) | Through Hole | 9 V | 105 C | -40 °C | 500 mA | -15 V | ||
P-DUKE Technology | 1.6 kV | 1 | 6-DIP Module | Active Low Enable | 15 W | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | Remote On/Off | 86 % | CB CE cURus | 5 V | 36 V | Isolated Module | ITE (Commercial) | Through Hole | 9 V | 105 C | -40 °C | 3 A | |||
P-DUKE Technology | 1.6 kV | 2 | 6-DIP Module | Active Low Enable | 15 W | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | Remote On/Off | 88 % | CB CE cURus | 12 V | 36 V | Isolated Module | ITE (Commercial) | Through Hole | 18 V | 105 C | -40 °C | 625 mA | -12 V | 625 mA |
