F417MR12 Series
Manufacturer: INFINEON
Beta
⌘K
THE F4-17MR12W1M1H_B76 IS A COOLSIC™ MOSFET FOURPACK MODULE 1200 V, 17MΩ
| Part | Vgs(th) (Max) @ Id | Drain to Source Voltage (Vdss) | Drain to Source Voltage (Vdss) | Gate Charge (Qg) (Max) @ Vgs | Package / Case | Current - Continuous Drain (Id) @ 25°C | Operating Temperature [Max] | Operating Temperature [Min] | Configuration | Input Capacitance (Ciss) (Max) @ Vds [Max] | Mounting Type | Technology | Rds On (Max) @ Id, Vgs | Input Capacitance (Ciss) (Max) @ Vds | Gate Charge (Qg) (Max) @ Vgs [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

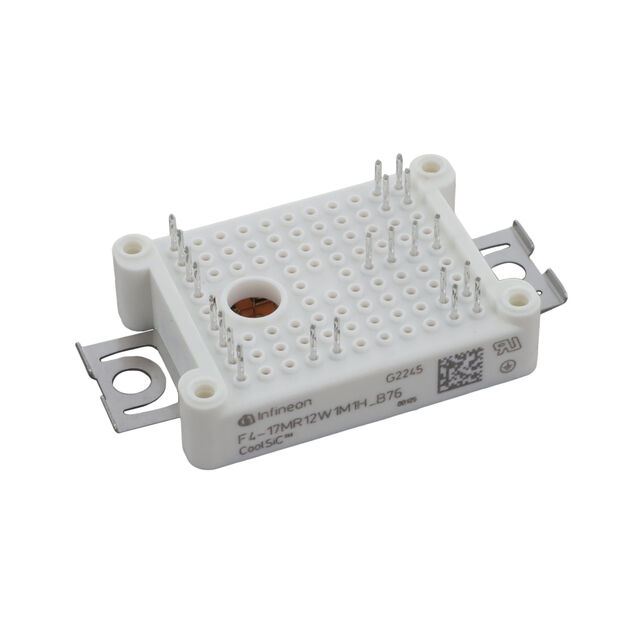

 INFINEON | 5.15 V | 1.2 kV | 1200 V | 200 nC | Module | 45 A | 175 °C | -40 °C | 4 N-Channel | 6050 pF | Chassis Mount | Silicon Carbide (SiC) | 11.7 mOhm | ||

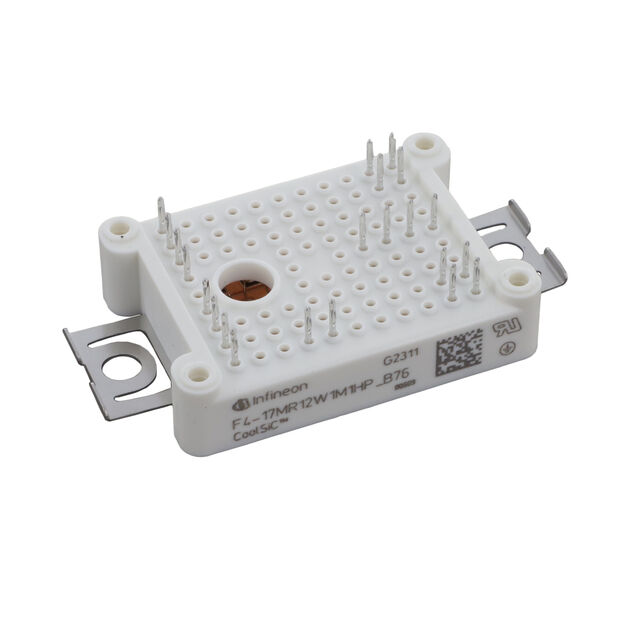

 INFINEON | 5.15 V | 1.2 kV | 1200 V | Module | 45 A | 175 °C | -40 °C | 4 N-Channel | Chassis Mount | Silicon Carbide (SiC) | 16.2 mOhm | 4400 pF | 149 nC |
