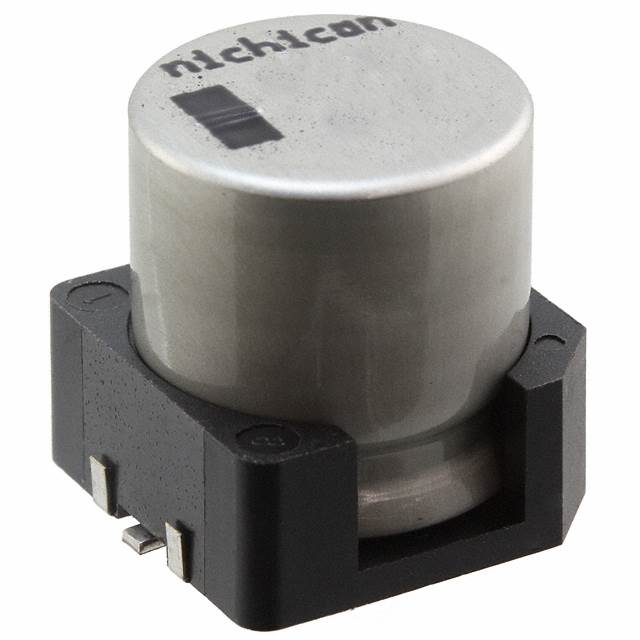

UUE Series
Manufacturer: Nichicon
Beta
⌘K
ALUMINUM ELECTROLYTIC CAPACITORS - SMD 10VOLTS 1000UF AEC-Q200
| Part | Ripple Current @ High Frequency | Polarization | Applications | Voltage - Rated | Capacitance | Lifetime @ Temp. | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Ripple Current @ Low Frequency | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] | Package / Case | Size / Dimension [diameter] | Size / Dimension [diameter] | Surface Mount Land Size [x] | Surface Mount Land Size [y] | Surface Mount Land Size [y] | Surface Mount Land Size [x] | Tolerance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nichicon | 900 mA | Polar | Automotive | 10 V | 1000 µF | 5000 Hrs | Surface Mount | -55 C | 125 °C | 783 mA | 0.669 " | 17 mm | Radial Can - SMD | 0.492 in | 12.5 mm | 0.535 in | 13.6 mm | 0.535 in | 13.6 mm | 20 % |
