HSRP6 Series

Catalog

DC DC CONVERTER 15V 9W

Part	Current - Output (Max) [Max]	Voltage - Output 1	Number of Outputs	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Power (Watts)	Type	Package / Case	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Approval Agency	Voltage - Input (Min) [Min]	Mounting Type	Applications
P-DUKE Technology HSRP6-48S15	600 mA	15 V	1	13.4 mm	12 mm	0.53 in	0.47 in	0.34 in	8.6 mm	9 W	Non-Isolated PoL Module	3-SIP Module	94 %	105 C	-40 °C	72 V	CE	20 V	Through Hole	ITE (Commercial)

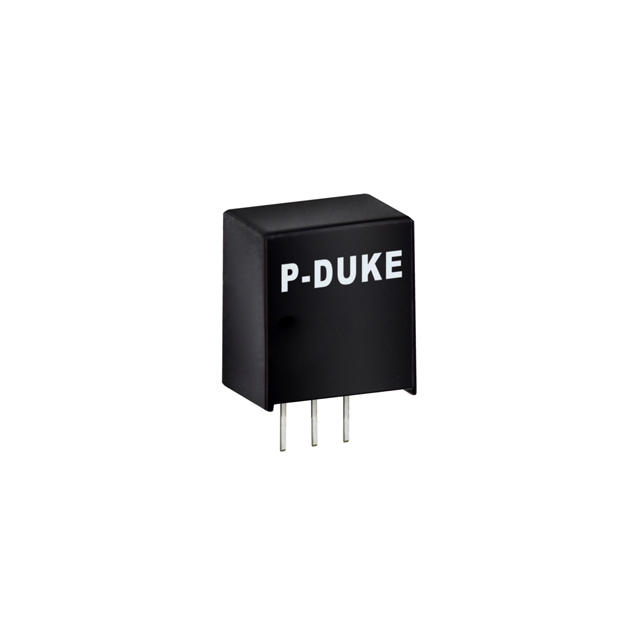

P-DUKE Technology HSRP6-48S05	600 mA	5 V	1	13.4 mm	12 mm	0.53 in	0.47 in	0.34 in	8.6 mm	3 W	Non-Isolated PoL Module	3-SIP Module	89 %	105 C	-40 °C	72 V	CE	9 V	Through Hole	ITE (Commercial)
P-DUKE Technology HSRP6-48S09	600 mA	9 V	1	13.4 mm	12 mm	0.53 in	0.47 in	0.34 in	8.6 mm	5.4 Watts	Non-Isolated PoL Module	3-SIP Module	92 %	105 C	-40 °C	72 V	CE	14 V	Through Hole	ITE (Commercial)
